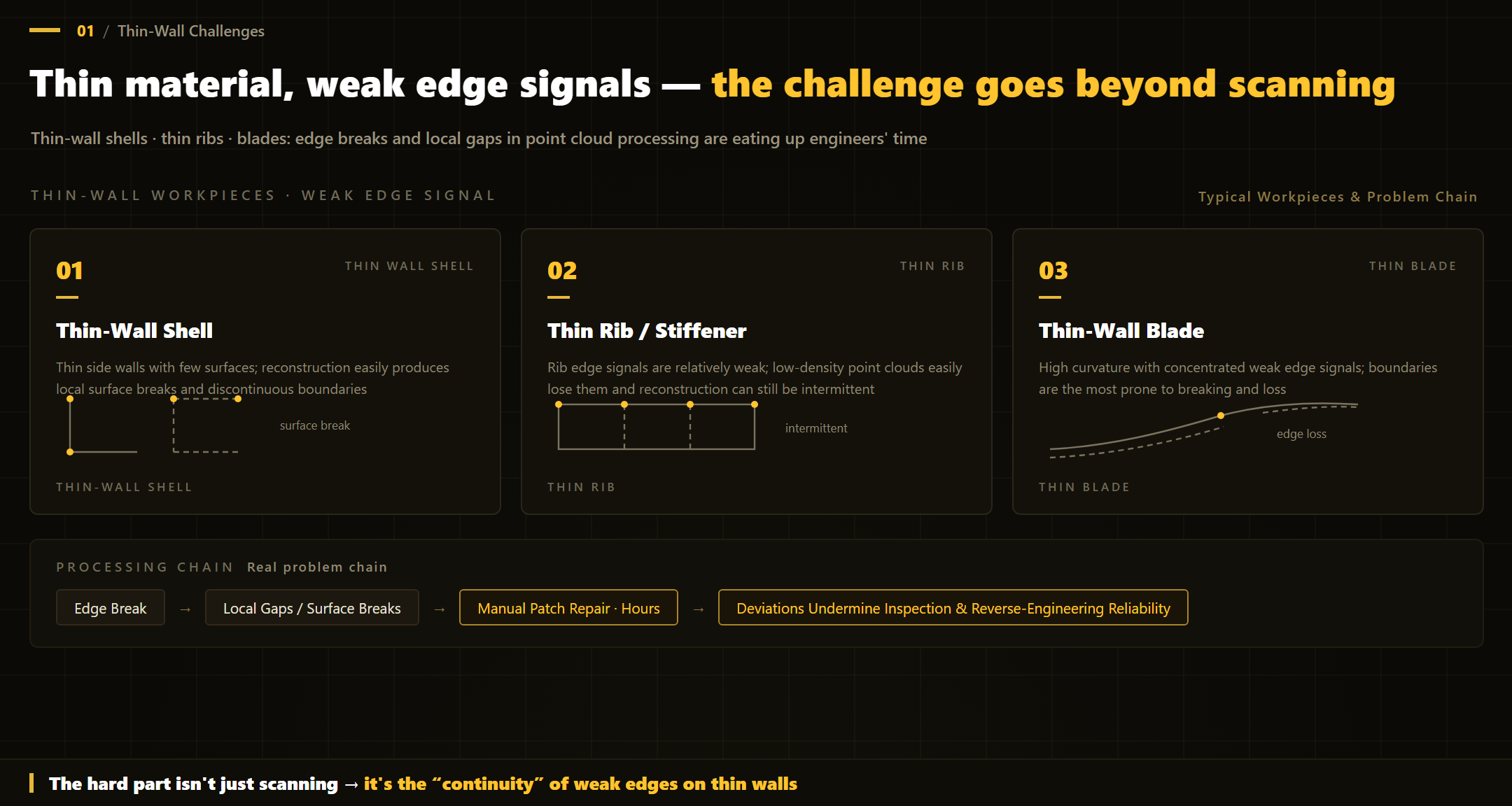

Workpieces such as thin-walled housings, thin ribs, and blades have low material thickness and weak edge signals, making them prone to edge breaks, localized data loss, and other issues during point cloud processing. Engineers often have to spend significant time manually filling surfaces and refining boundaries. This not only affects project schedules, but may also compromise the reliability of data used for subsequent inspection and reverse engineering due to deviations introduced during manual repairs.
3DMatrix_Gen2 integrates a proprietary vertical AI model and features specialized algorithmic enhancements for thin-walled characteristics.

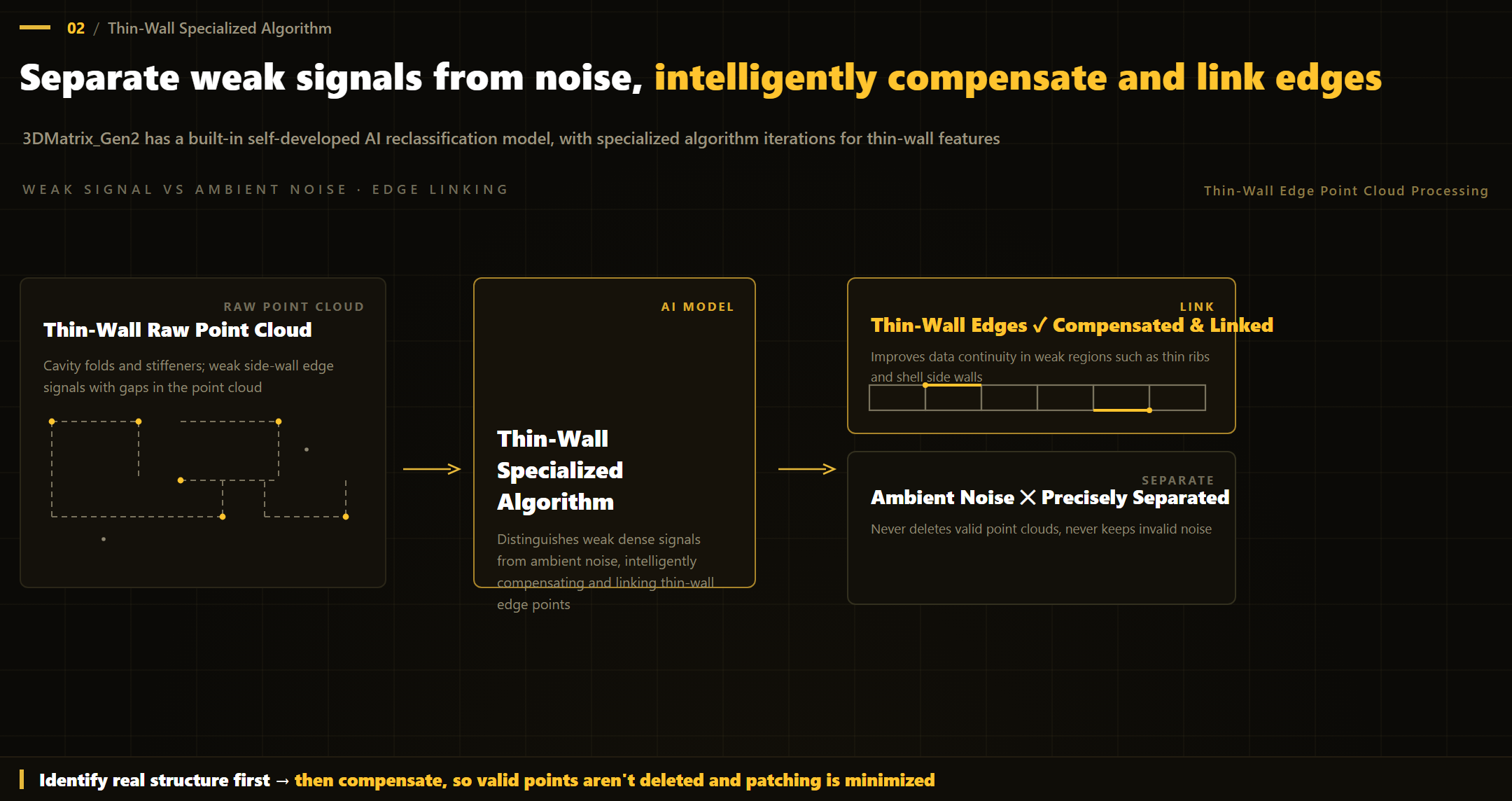

During point cloud processing, the algorithm can distinguish weak signals from thin-walled features from environmental noise, while intelligently compensating for and connecting point clouds along thin-walled edges. This improves data continuity in weak areas such as thin ribs and housing sidewalls, reducing the need for subsequent manual repairs.
A plastic grid-cavity thin-walled workpiece was selected for this test. The workpiece contains densely arranged square cavities, as well as multiple folded edges and thin-walled structures, making it a representative example of the processing challenges commonly encountered with thin-walled components.
Many plastic parts have relatively thin walls and are therefore prone to deformation during molding. As a result, products are often designed with numerous reinforcing ribs to maintain structural stability. However, the edge signals of these ribs and folded edges are relatively weak. Even when the scanner has captured relatively complete raw point cloud data, discontinuous boundaries and localized surface gaps may still occur during software processing and mesh reconstruction.

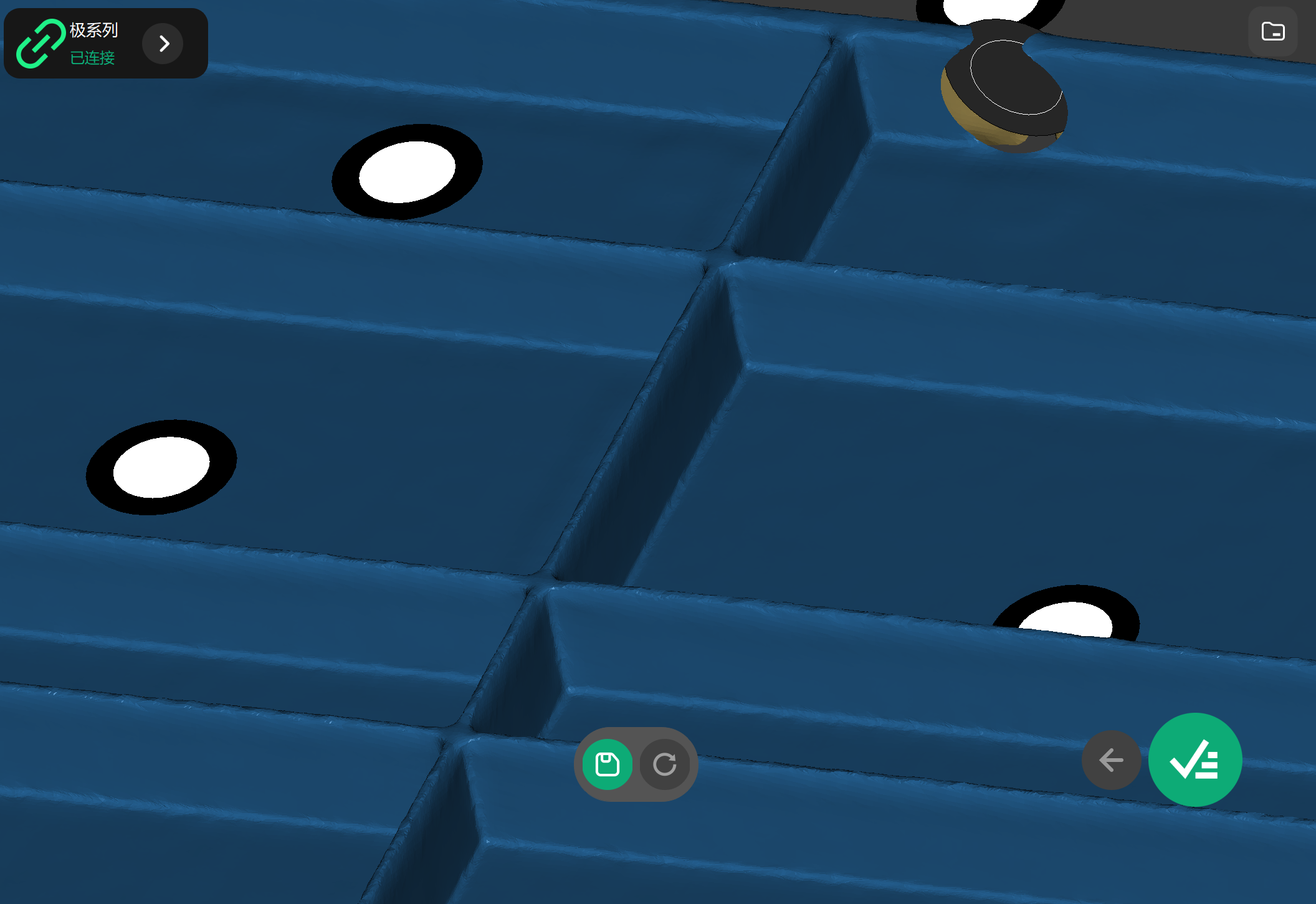

In areas such as cavity folded edges, reinforcing ribs, and thin-walled intersections, the model may exhibit data discontinuities and localized surface loss, resulting in insufficient boundary continuity. Engineers may subsequently need to manually refine the boundaries when performing wall-thickness inspection or reverse engineering.

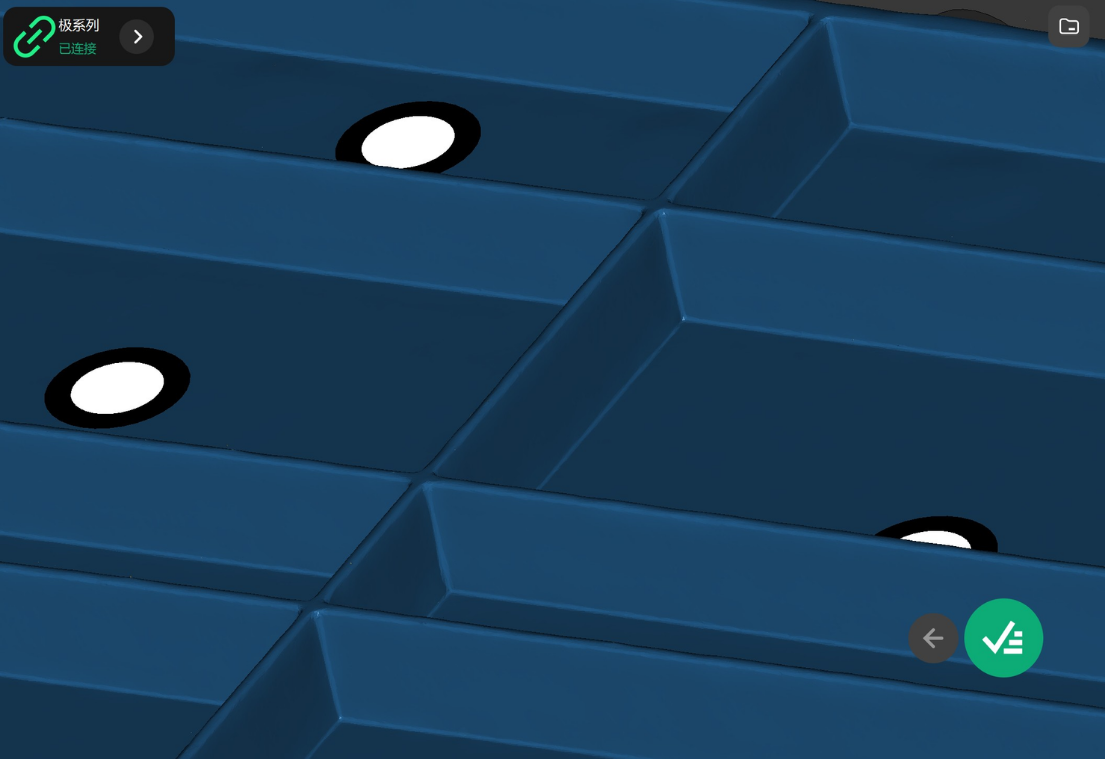

The upgraded algorithm can identify valid weak signals in thin-walled areas and compensate for and repair boundary point clouds. As shown, the cavity folded-edge structures are more continuous, the surface areas of the thin-walled sidewalls are more complete, the grid-cavity structure is preserved more thoroughly, and the model boundaries are more coherent.
For thin-walled workpieces, the key to algorithmic processing is not simply to “fill in missing areas,” but to determine as accurately as possible which point clouds belong to the actual structure and which are invalid noise points. Only by accurately distinguishing between the two can the algorithm avoid deleting valid data by mistake and reduce unnecessary manual surface filling.
With software featuring an integrated AI algorithm for thin-walled processing, engineers can significantly reduce the post-processing workload when handling thin-walled scanning tasks.

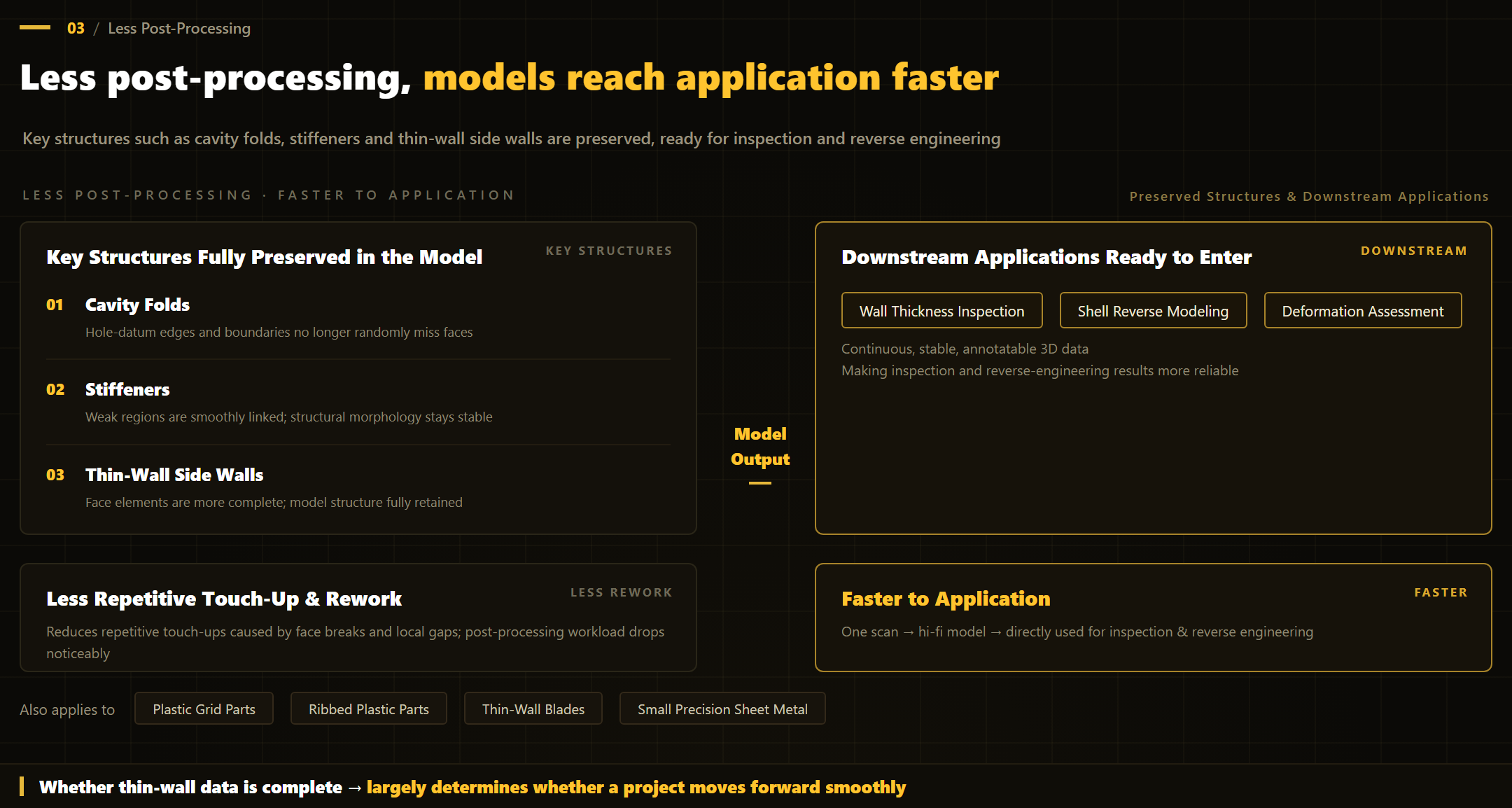

The resulting 3D models can preserve key structures such as cavity folded edges, reinforcing ribs, and thin-walled sidewalls more completely. They can be used for subsequent wall-thickness inspection, reverse engineering of housings, and deformation assessment, reducing repeated refinements and rework caused by broken boundaries and localized surface loss.
In addition to plastic grid-cavity components and ribbed plastic parts, this type of algorithm is also suitable for workpieces with thin walls, thin ribs, or weak edge features, including thin-walled blades and small precision sheet-metal components.
The completeness of data in thin-walled areas largely determines whether an inspection or reverse engineering project can progress smoothly. By making full use of the raw point cloud data captured by the scanner, 3DMatrix_Gen2 improves the model reconstruction quality of thin-walled workpieces and helps engineers obtain continuous, stable, and reliable 3D data more quickly.
What challenges does 3DMatrix_Gen2 address when scanning thin-walled components?
3DMatrix_Gen2 addresses common issues such as broken edges, localized surface loss, discontinuous boundaries, and incomplete data in thin-walled areas.
How does 3DMatrix_Gen2 process weak edge signals?
Its proprietary AI model distinguishes weak signals from thin-walled features from environmental noise, then intelligently compensates for and connects boundary point clouds.
Which thin-walled components are suitable for 3DMatrix_Gen2?
The solution is suitable for thin-walled housings, plastic grid-cavity components, ribbed plastic parts, thin-walled blades, and small precision sheet-metal components.
How does 3DMatrix_Gen2 reduce manual post-processing?
By improving boundary continuity and preserving thin ribs, folded edges, sidewalls, and other weak features, it reduces manual surface filling, boundary refinement, and rework.
What applications can use the resulting 3D models?
The models can support wall-thickness inspection, housing reverse engineering, deformation assessment, and other inspection or digital modeling applications.
