In modern industrial manufacturing, strict quality control is paramount. Aluminum piping components serve as critical infrastructure across power generation, chemical processing, automotive, and HVAC sectors. The dimensional accuracy and structural integrity of these components directly dictate the safety, operational stability, and lifespan of entire engineering systems.

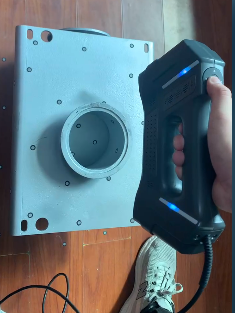

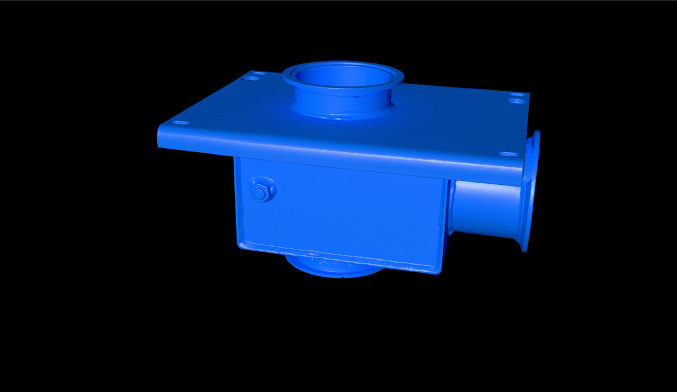

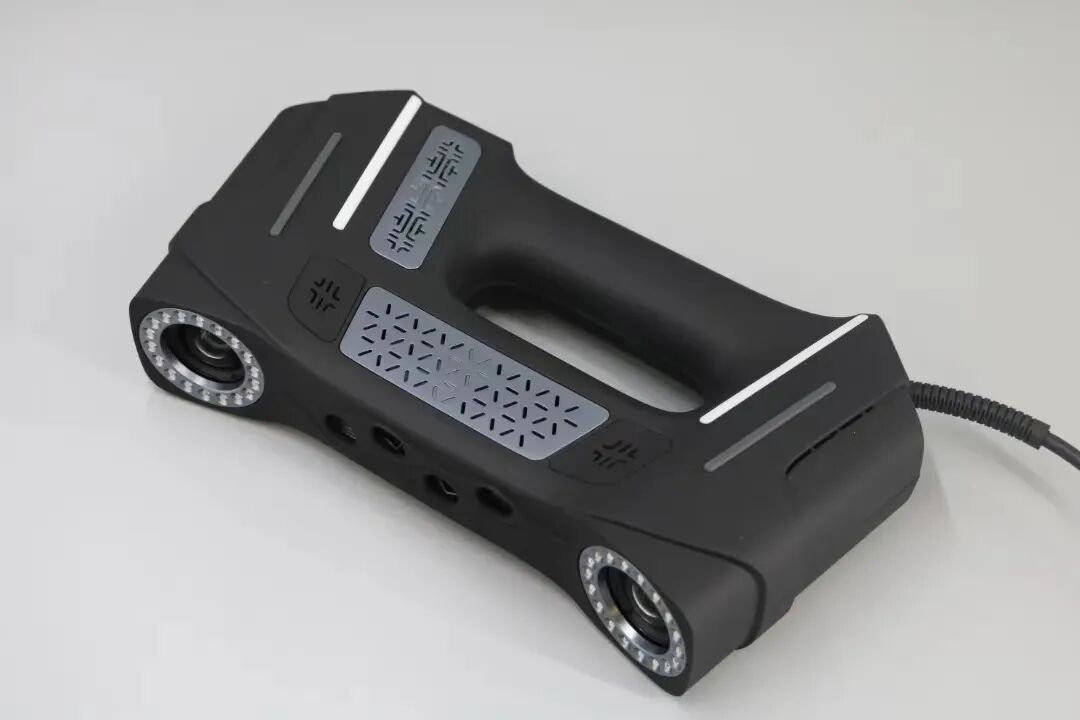

Featuring a metrology-grade accuracy of 0.02 mm the BlackboxCV Extr Series 3D scanner precisely captures complex surface topologies and geometric features across aluminum piping workpieces. It generates high-density 3D digital twins that maintain complete spatial fidelity with physical parts, establishing an uncompromising digital foundation for downstream quality control.
The Extr Series completes full-field, $360^\circ$ scans of aluminum piping components in minutes. During execution, it acquires massive spatial point clouds and processes them in real time using optimized proprietary algorithms. This streamlined workflow significantly compresses quality inspection lead times, enabling manufacturers to accelerate time-to-market and maximize production efficiency.

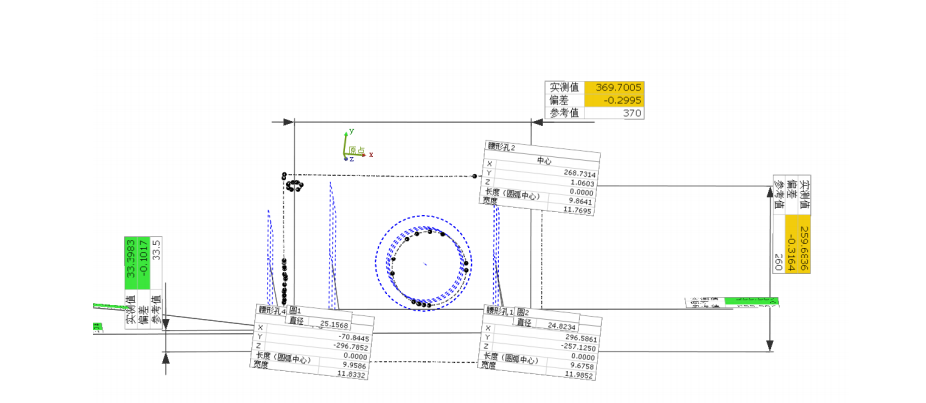

Once acquisition is complete, the scan data seamlessly imports into professional inspection software. The platform performs automated, full-dimensional cross-referencing between physical scan data and nominal CAD models. Detailed, inspection-ready reports are automatically generated, highlighting measured values, nominal tolerances, and dimensional deviations. The software also provides predictive analysis for potential quality bottlenecks, simplifying audit workflows and improving inspection accuracy.
From external profile accuracy and flange flatness to internal cavity integrity and wall-thickness consistency, every critical quality metric is thoroughly analyzed. This rigorous, end-to-end quality assurance pipeline guarantees that every aluminum piping component shipped meets demanding international engineering standards.
With its high efficiency and metrology-grade precision, the BlackboxCV Extr Series 3D scanner establishes a robust quality control defense for aluminum piping manufacturing. As optical metrology continues to evolve, the Extr Series empowers industrial enterprises to elevate manufacturing quality, reduce scrap rates, and accelerate digital transformation.
Contact our application engineering team today for a customized scanning solution proposal.
Q1: What level of accuracy does the BlackboxCV Extr Series offer for aluminum piping inspection?
A: The BlackboxCV Extr Series achieves a metrology-grade accuracy of up to 0.02 mm, ensuring that scanned 3D models match physical aluminum piping components with extreme spatial precision.
Q2: How does 3D scanning accelerate inspection workflows for aluminum piping manufacturers?
A: By capturing full-field spatial point clouds in minutes and utilizing optimized processing algorithms, the Extr Series rapidly generates complete 3D digital models, compressing traditional inspection cycles from hours to minutes.
Q3: Can the inspection software automatically generate dimensional deviation reports?
A: Yes. Once scan data is imported, the inspection software automatically compares physical 3D scan data against nominal CAD models, generating detailed reports with color-coded deviation maps, measured vs. nominal values, and tolerance warnings.
