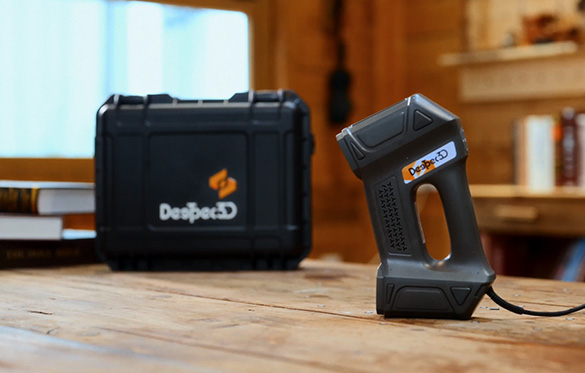

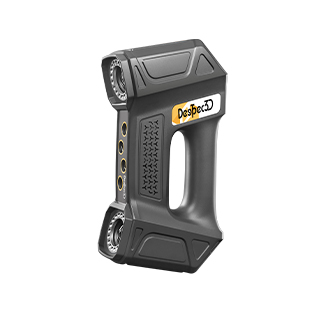

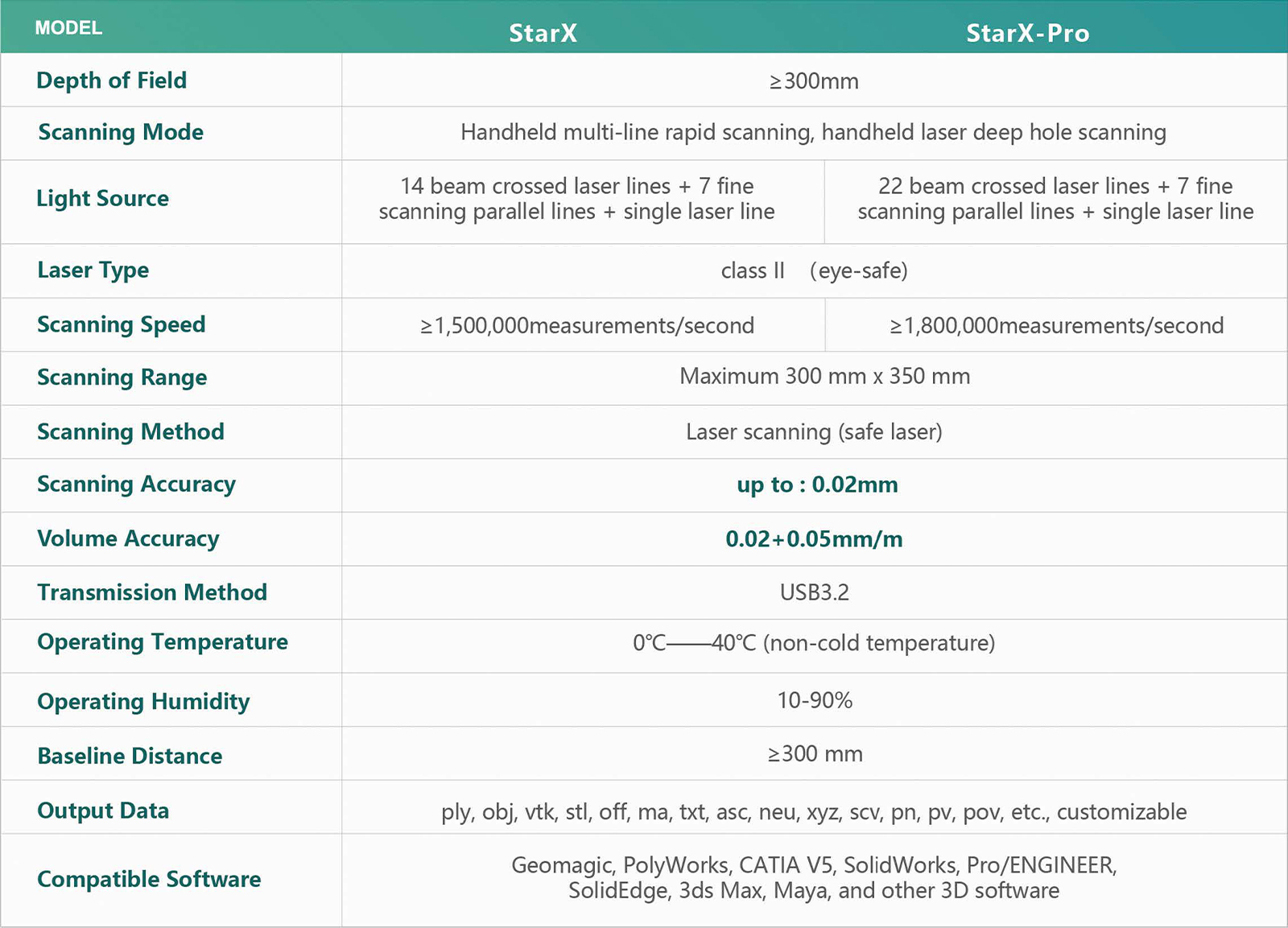

| MODEL | StarX | StarX-Pro |
| Depth of Field | >300mm | >300mm |
| Scanning Mode | Handheld multi-line rapid scanning, handheld laser deep hole scanning | Handheld multi-line rapid scanning, handheld laser deep hole scanning |
| Light Source | 14 beam crossed laser lines + 7 finescanning parallel lines + single laser line | 22 beam crossed laser lines + 7 finescanning parallel lines + single laser line |
| Laser Type | class Il (eye-safe) | class Il (eye-safe) |
| Scanning Speed | >1,500,000measurements/second | >1,800,000measurements/second |
| Scanning Range | Maximum 300 mm x 350 mm | Maximum 300 mm x 350 mm |
| Scanning Method | Laser scanning (safe laser) | Laser scanning (safe laser) |
| Scanning Accuracy | up to :0.02mm | up to :0.02mm |
| Volume Accuracy | 0.02+0.05mm/m | 0.02+0.05mm/m |
| Transmission Method | USB3.2 | USB3.2 |
| Operating Temperature | 0°C-40°C (non-cold temperature) | 0°C-40°C (non-cold temperature) |
| Operating Humidity | 10-90% | 10-90% |
| Baseline Distance | >300 mm | >300 mm |
| Output Data | ply, obj, vtk, stl, off, ma, txt, asc, neu, xyz, scv, pn, pv, pov, etc., customizable | ply, obj, vtk, stl, off, ma, txt, asc, neu, xyz, scv, pn, pv, pov, etc., customizable |
| Compatible Software | Geomagic, PolyWorks, CATIA V5, SolidWorks, Pro/ENGINEER,SolidEdge, 3ds Max, Maya, and other 3D software | Geomagic, PolyWorks, CATIA V5, SolidWorks, Pro/ENGINEER,SolidEdge, 3ds Max, Maya, and other 3D software |
