Elite Model
 HILAND series
Leading the world
From Zhejiang University CAD National Laboratory | Microsoft Asia Research
HILAND series
HILAND 500
·5M ×2
·USB3.1 ×2
·Full Resolution
·Full Speed Transmission
·5 Million resolution CMOS
Blackboxcv is committed to providing efficient and accurate three-dimensional laser scanning solutions. If you want to know more about our products, please refer to the following detailed specifications:

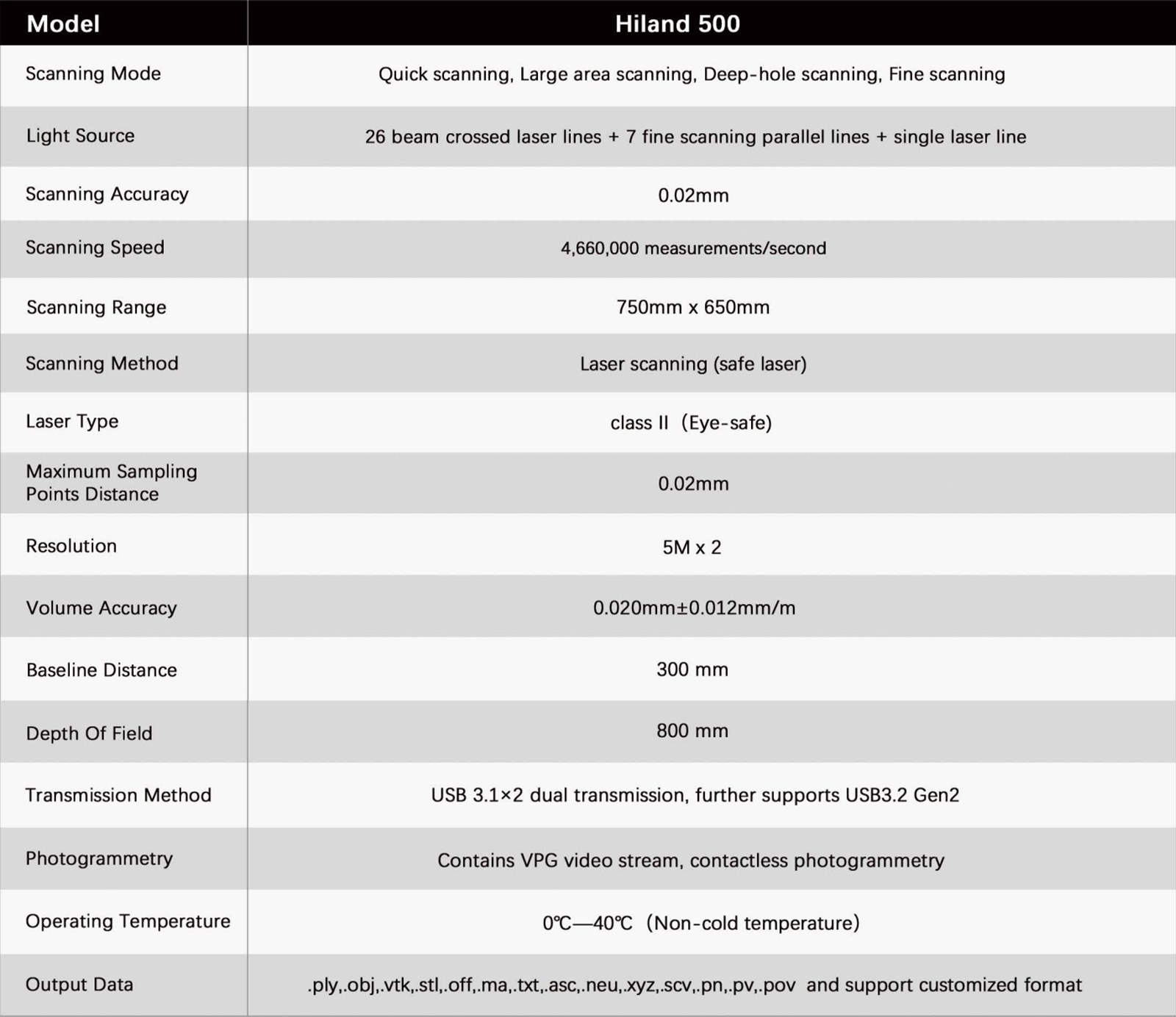

Model Hiland 500
Scanning Mode Quick scanning, Large area scanning, Deep-hole scanning, Fine scanning
Light Source 26 beam crossed laser lines + 7 fine scanning parallel lines + single laser line
Scanning Accuracy 0.02mm
Scanning Speed 4,660,000 measurements/second
Scanning Range 750mm x 650mm
Scanning Method Laser scanning (safe laser)
Laser Type class II (Eye-safe)
Maximum SamplingPoints Distance 0.02mm
Resolution 5Mx2
Volume Accuracy 0.020mm±0.012mm/m
Baseline Distance 300 mm
Depth Of Field 800 mm
Transmission Method USB 3.1x2 dual transmission, further supports USB3.2 Gen2
Photogrammetry Contains VPG video stream, contactless photogrammetry
Operating Temperature 0°C-40°C (Non-cold temperature)
Output Data .ply .obj..vtk. stl off. .ma..txt. asc. neu.xyz..scv..pn..pv,.pov and support customized format
Application
Hangzhou blackboxcv Co.,Ltd provides complete 3D solutions for each customer based on the different needs of different industries
