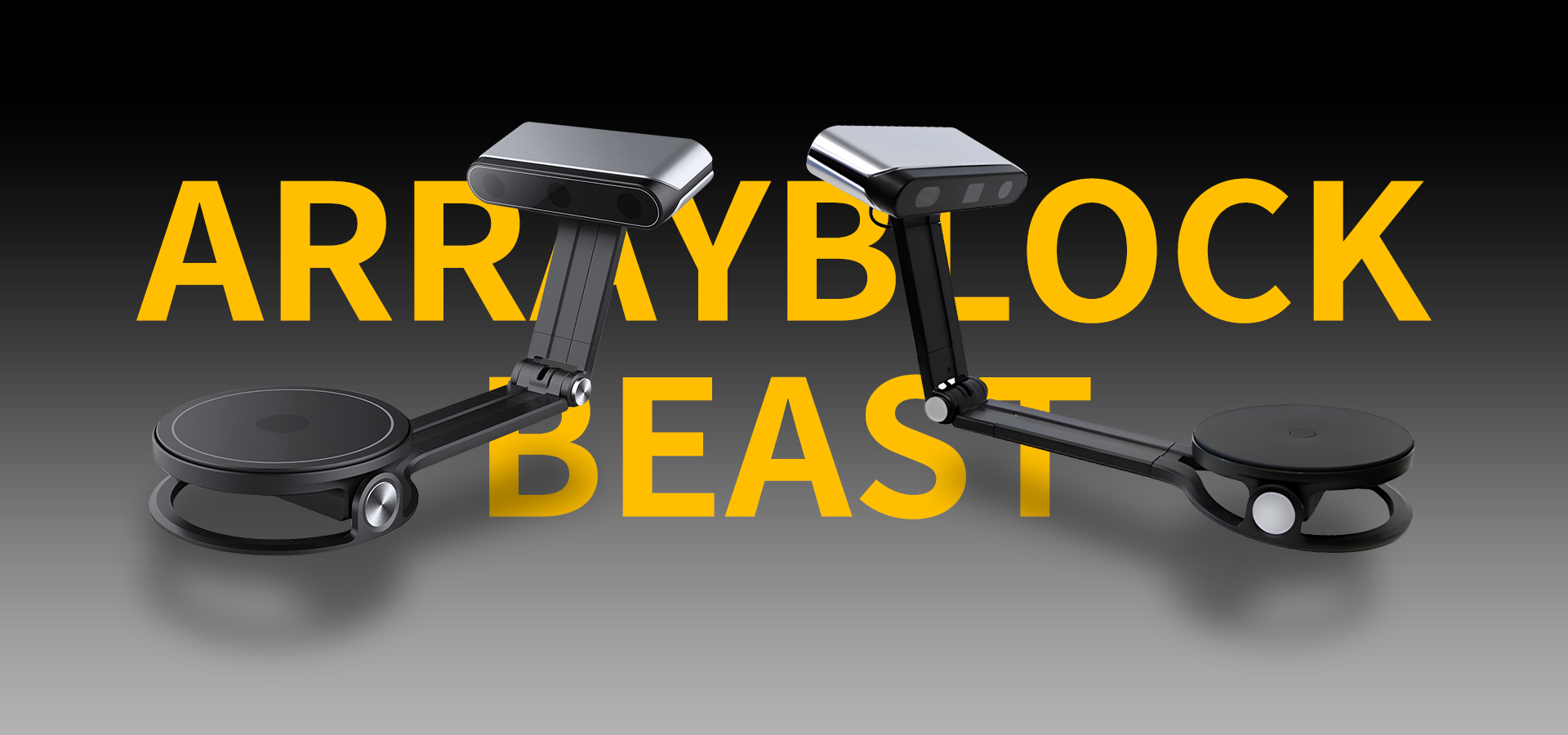

ArrayBlock Beast
Major

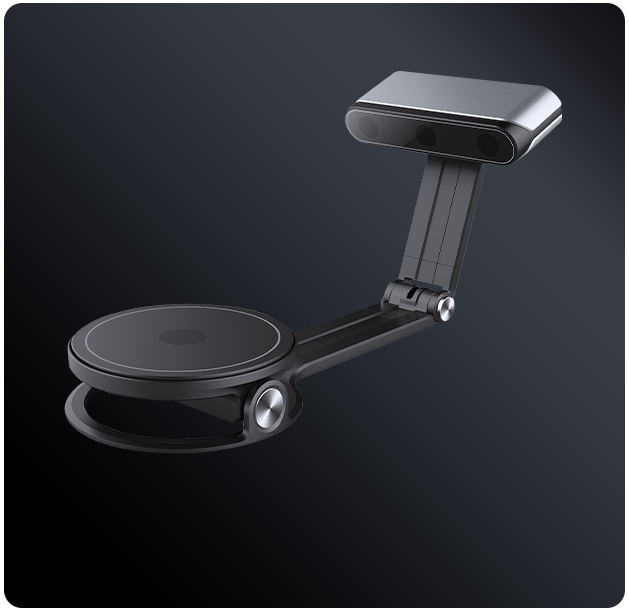

Structured light three-dimensional scanning system
Technical Specifications
Model Array Block Beast
Scanning mode fully automatic scanning of turntable, fully automaticmulti-axis scanning with turntable, professional scanning
Splicing mode multi-axis scanning and splicing with turntable, automatic splicing withturntable, mark point splicing, manual splicing, feature splicing
Scanning precision volumetric accuracy: 0.05mm; detailed accuracy: 0.05mm
Scanning range Fully automatic scanning with turntable:200x150x150mmFully automatic multi-axis scanning with turntable: 222x222x222mm
Professional scanning: 1200x1200x1200mm
Scanning speed ≤0.6s
Output formats STL、 ASC、 OBJ、 PLY、 VTK、 OFF、 FB
Sensor resolution 2 industrial cameras of 1.3 megapixels Dot pitch
Dot pitch 0.10mm-0.15mm
Coding emitter LEDcold light (Eye-safe)
Stand-off distance 400mm
Working temperature 0°C-40°C
Weight and dimensions 1.9kg、 607x240X214mm
Voltage of adapter DC12V,5A,60w
Maximum load bearing
capacity of turntable
5kg
Recommendedcomputer configuration OS: Windows7 (64bit)
GPU: NVIDIAGTX650 or above
CPU:inteli 5 processor
RAM: 4GB orabove
