In the field of mold manufacturing, high-gloss molds are widely used for precision part machining in industries such as automotive, electronics, and home appliances, thanks to their excellent performance.
However, the highly reflective surfaces and complex geometries of these molds pose significant challenges for traditional quality inspection methods. The Extr series 3D scanners offer a brand-new digital solution for the quality inspection of high-gloss molds.
The unique properties and production requirements of high-gloss molds make quality inspection a widely acknowledged challenge in the industry; traditional inspection methods reveal significant shortcomings when faced with these challenges.
Highly reflective mold surfaces cause significant interference for traditional optical inspection equipment, making it difficult to accurately capture surface details and leading to distorted inspection data.
Molds often feature complex geometries and intricate structures;traditional tools cannot provide comprehensive coverage, limiting inspection to selected key points and preventing a complete assessment of the mold's quality.
Molds are bulky and difficult to transport, necessitating inspection directly on the production floor. Traditional manual measurement is time-consuming and labor-intensive—often taking hours for a single mold—which severely impacts production schedules.
Traditional inspection relies on the operator's subjective judgment rather than precise quantitative data, leading to ill-informed mold repair strategies and resulting in high costs and long lead times for subsequent processing.
Addressing the key pain points in quality inspection for high-gloss molds,the Extr series 3D scanner leverage advanced technology and innovative design to deliver efficient, precise, and comprehensive inspection solutions that perfectly meet industry needs.

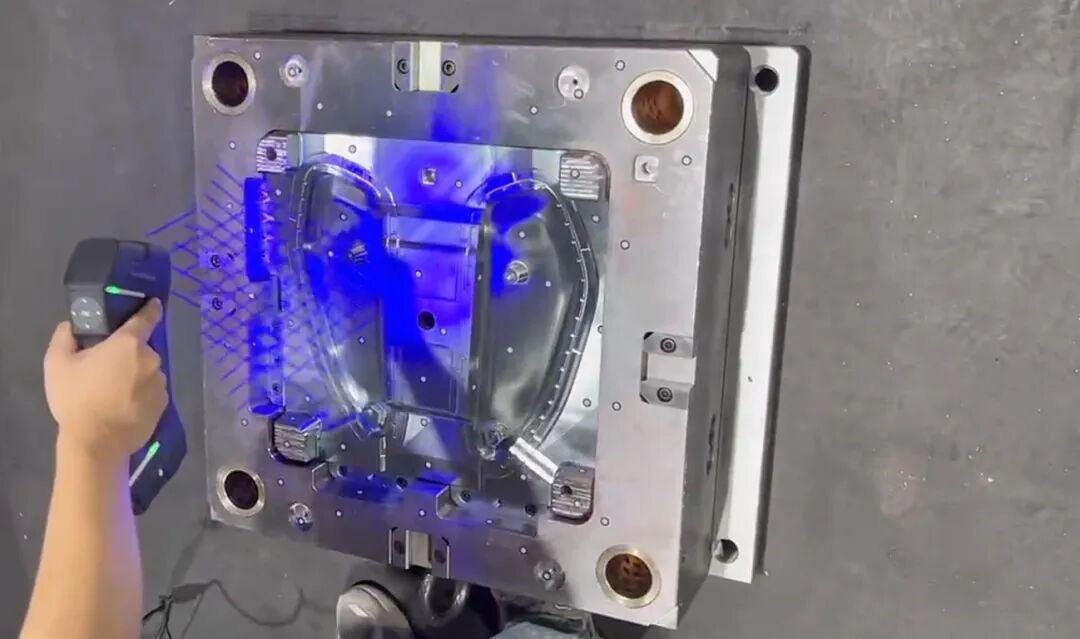

Equipped with advanced blue laser technology, the Extr Series 3D scanner penetrates reflective interference to precisely capture every detail of mold surfaces, ensuring the authenticity and integrity of inspection data.
The equipment offers a scanning precision of up to 0.02 mm, enabling the accurate reproduction of complex mold surfaces and 3D contours. It achieves comprehensive, all-angle measurement, overcoming the limitations of traditional inspection tools regarding measurement coverage.

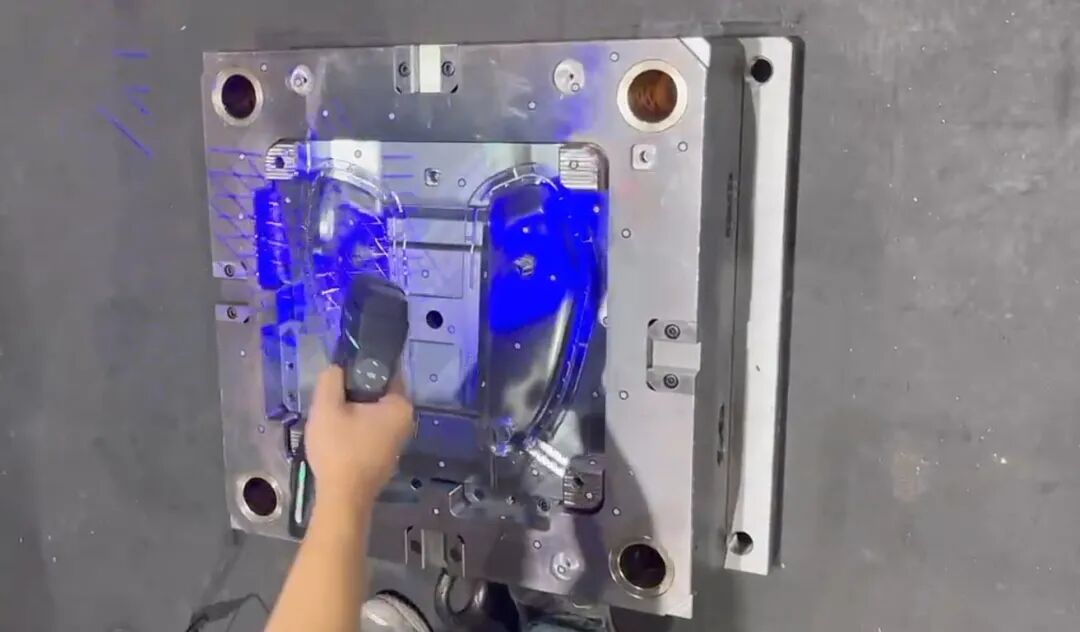

Featuring a lightweight design,the Extr Series 3D scanners enable rapid scanning directly on the production floor. Their ease of use significantly boosts inspection efficiency without disrupting production schedules.

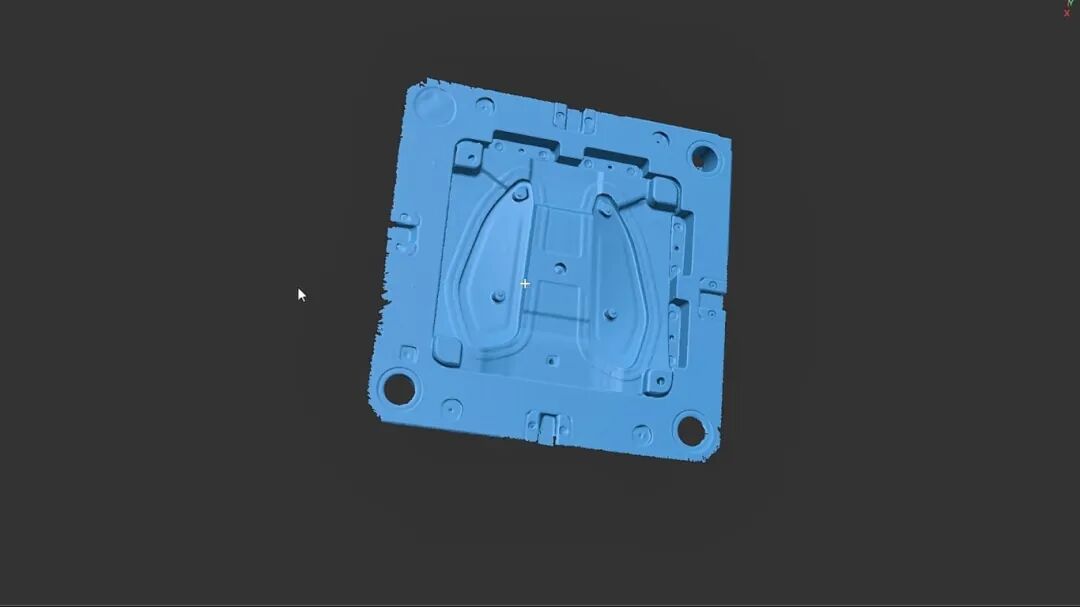

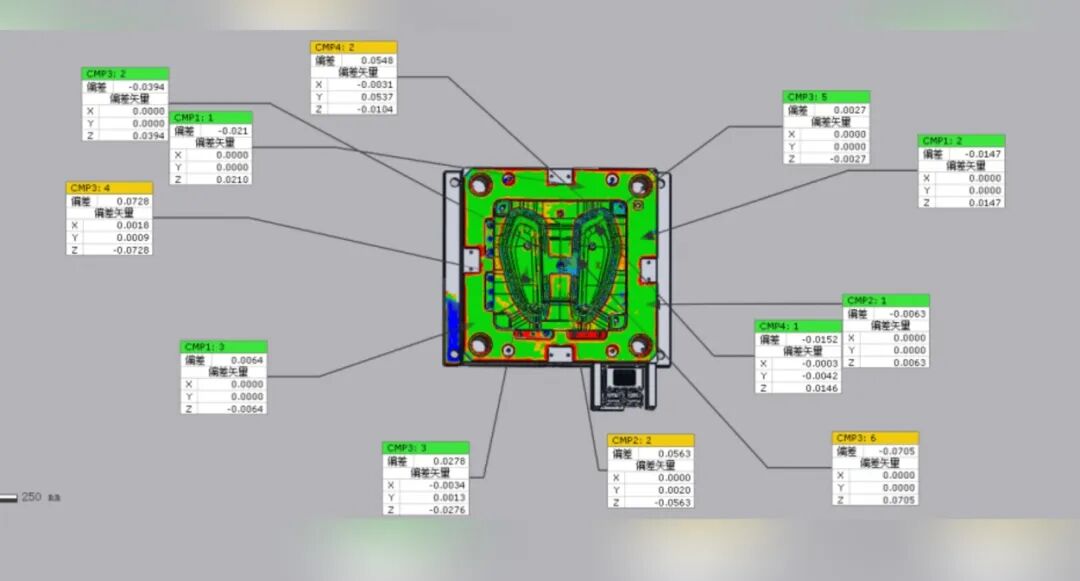

Upon completion of the scan, data can be quickly imported into professional analysis software to generate intuitive color-deviation maps. These clearly visualize the mold's quality and wear status, providing precise data to support quality assessment and the formulation of repair plans.
The application of the Extr series 3D scanners in the quality inspection of high-gloss molds not only resolves the many drawbacks of traditional inspection methods but also delivers tangible value to enterprises.
By utilizing digital inspection techniques, enterprises can rapidly identify mold quality issues, promptly optimize production processes, and improve the pass rate of mold production; the efficient inspection workflow shortens production cycles, enabling enterprises to respond quickly to market demands and enhance their core competitiveness.
As a premium industrial mold 3D inspection system supplier, BlackboxCV helps you reduce lead times and scrap rates. [Contact Our Application Engineers] to get a free demo with your own high-gloss samples today!
