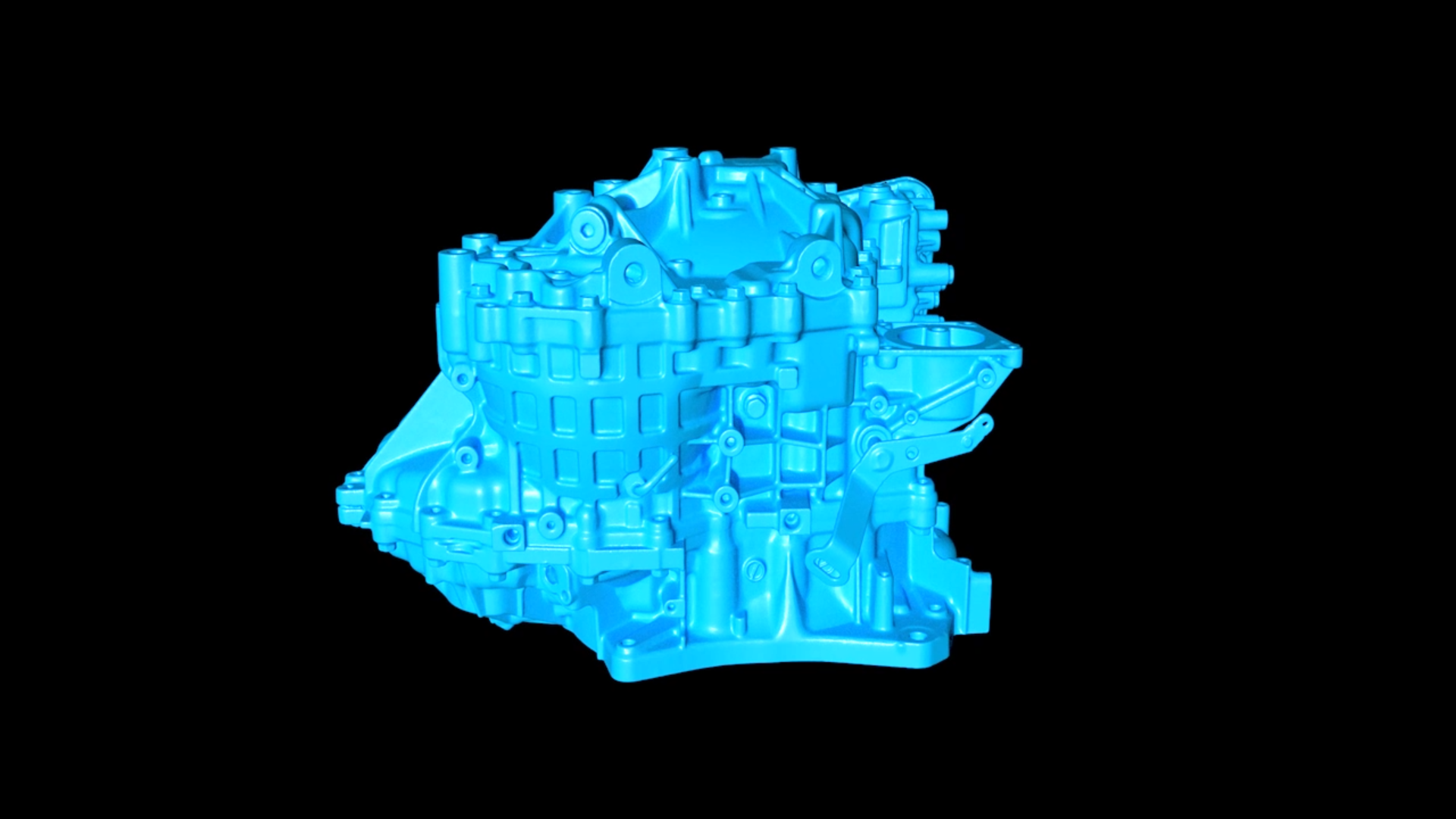

An industrial-grade 3D scanner is a device used to capture the three-dimensional surface geometry of objects. It measures the spatial coordinates of an object's surface using light,outputting the results as point clouds or mesh models for use in application such as dimensional inspection, reverse engineering, and quality control. This article briefly outlines its fundamental principles and common applications.
Ⅰ. Measurement Principle
Currently, there are two main types of 3D scanning methods commonly used in industrial environments:
• Structured Light Scanning: This method projects a coded fringe pattern onto the object being measured. A camera captures the deformation of this pattern on the object's surface, and algorithms are then used to reconstruct the 3D coordinates of the surface. This technique offers relatively fast scanning speeds, allows a single scan to cover a large area, and typically achieves an accuracy level of two to three decimal places in millimeters.

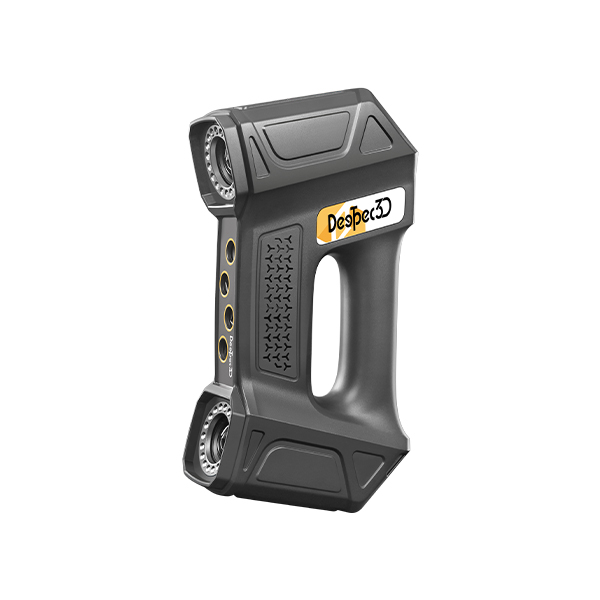

• Laser Triangulation Scanning: This method projects a laser line onto the object being measured. A camera captures the position where the laser line is projected onto the object's surface, and depth information is calculated using trigonometric geometric relationships. This technique features a relatively simple structure, is well-suited for measuring large-sized workpieces, and the equipment is comparatively portable.
Each of these two methods has its own specific applications. Structured light measurement offers high speed and precision, making it suitable for small, high-precision parts; the laser triangulation method, on the other hand, boasts strong versatility and is frequently employed for larger workpieces, or for those where the installation of structured light equipment is impractical.
Ⅱ. The Main Factors Affecting Accuracy
The accuracy of industrial 3D scanning depends not only on the hardware itself, but the software processing workflow is equally critical.
• Calibration: Prior to scanning, the camera and projection system must undergo geometric calibration to establish the spatial relationships between their various components. Temperature fluctuations can induce lens deformation—thereby compromising measurement accuracy—which is why high-precision equipment typically incorporates built-in temperature compensation mechanisms.
• Multi-view Registration: For workpieces with complex geometries, it is necessary to perform scans from multiple angles in succession and subsequently stitch the resulting point cloud datasets together to form a cohesive whole. The precision of this stitching process directly determines the overall error margin of the final model.
• Surface Properties: Black matte surfaces exhibit high light absorption, resulting in weak reflected light signals; conversely, mirror-like surfaces are prone to overexposure and the generation of multiple strong reflections. Both scenarios can degrade scanning quality; therefore, in practical operations, it is essential to select appropriate processing methods or parameter settings tailored to the specific surface material.
Ⅲ. Common Application Scenarios
Industrial 3D scanning is currently widely applied in the following fields:
• Dimensional Inspection: Comparing scanned models against generated quality inspection reports to quantitatively analyze workpiece deformation. This is commonly utilized for production quality control in sectors such as automotive and aerospace.
• Reverse Modeling: Scanning existing physical objects to generate editable 3D digital models, which are used for remanufacturing, design modification, or archival purposes.
• Deformation Analysis: Scanning the same workpiece at different times, temperatures, or load states, and comparing the results to analyze the extent of deformation. This is frequently applied in fields such as mold manufacturing and metallurgy.
• Digitization of Cultural Relics and Architectural Heritage: Performing 3D scans of sculptures and architectural structures to create digital archives, facilitating their long-term preservation and digital exhibition.
Ⅳ. FAQ
Q: How do you perform 3D scanning on shiny, reflective, or dark surfaces?
A: Shiny, metallic, or dark surfaces can absorb light or cause overexposure. To ensure metrology-grade accuracy, we recommend adjusting the exposure parameters of the 3D scanner software, using professional anti-reflective scanning sprays (developer), or choosing blue laser scanners designed with high-adaptability algorithms for complex materials.
Q: Can the 3D scan data be directly used for CNC machining or 3D printing?
A: Raw scan data (point clouds or STL meshes) is perfect for 3D printing. However, for CNC machining, the data must go through a reverse engineering process using software like Geomagic or SolidWorks to convert the mesh into editable parametric CAD models (such as STEP or IGES files).
