Extr Series 3D Scanners Facilitate 3D Inspection of Automotive Brake Levers

        In the automotive manufacturing sector, where the brake lever serves as a critical component for ensuring vehicle safety, quality control is of paramount importance. Consequently, the precise and efficient inspection of brake lever quality has become an indispensable step that automotive manufacturers cannot overlook. Blackboxcv's Extr Series 3D scanners offer an innovative and reliable solution for the quality inspection of automotive brake levers.

        Ⅰ. Extr Series 3D Scanners: Enabling High-Efficiency Scanning

        With a scanning accuracy of up to 0.02 mm, the Extr Series is capable of highly accurate object reconstruction, providing a reliable data foundation for subsequent quality analysis. In terms of data acquisition speed, the Extr Series captures up to 2.1 million points per second, enabling the comprehensive scanning of a brake lever within a very short timeframe. Its scanning range spans from 4 cm to 400 cm, allowing it to effortlessly handle objects ranging from small brake lever components to large-scale workpieces.

        Furthermore, its unique blue laser technology endows it with exceptional resistance to interference; undeterred by the challenges posed by highly reflective or matte-black surfaces, it consistently captures high-quality 3D data regardless of the brake lever's specific material composition or surface characteristics.

        Ⅱ. Scanning Process: Precise at Every Step, Efficient and Orderly

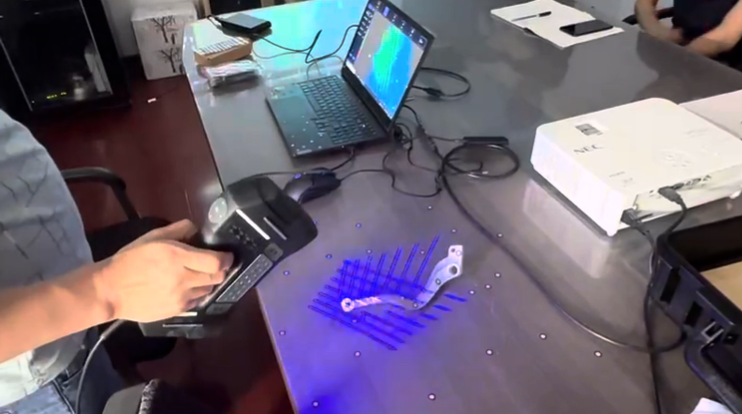

        Operators simply need to hold the handheld scanner and move it around the brake lever to capture precise 3D data. This handheld design breaks through the limitations of traditional 3D scanning environments, allowing for flexible adjustment of scanning angles and paths to achieve comprehensive coverage, thereby ensuring the acquisition of complete 3D data for the brake lever. Whether on an automotive production line or within a laboratory setting, the device can be rapidly deployed and put into operation.

        Ⅲ. Specialized Data Import Software: In-Depth Analysis, Quality Insights

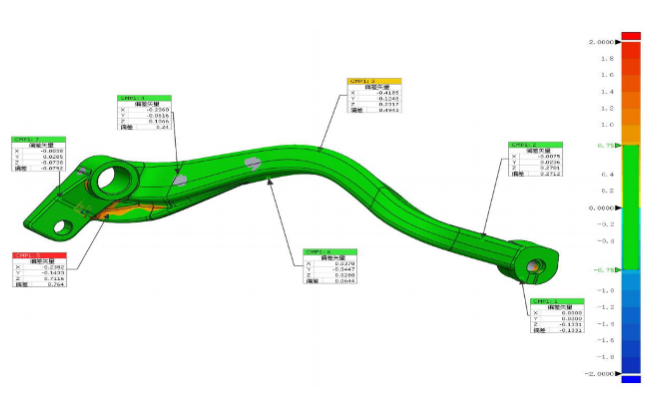

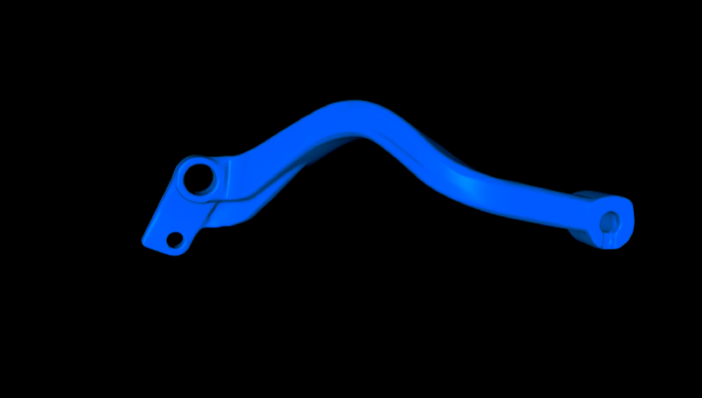

        Upon completion of the scanning process, the acquired 3D data of the brake lever can be seamlessly imported into various professional software platforms to facilitate a precise comparison between the scanned 3D data and the original design model. This enables the rapid and accurate detection of any deviations between the actual dimensions of the brake lever and its design specifications, thereby allowing for a comprehensive assessment of its manufacturing precision.

        Conclusion

        The Extr Series 3D scanners provide automotive manufacturers with comprehensive and reliable quality inspection solutions, empowering the automotive industry to enhance product quality, ensure driving safety, and drive the manufacturing sector toward digitalization and intelligent transformation.

        We invite you to visit our Product Center and contact us to obtain product solutions.
