Industrial 3D Scanner Selection: Crucial Specs You Might Miss

        Industrial 3D scanners are characterized by a wide array of technical specifications,with different application scenarios placing varying emphasis on specific parameters. This article outlines the significance of several key metrics and reviews the common decision-making frameworks employed when selecting a suitable scanner.

        Ⅰ. The Difference Between Accuracy and Resolution

        These two concepts are often used interchangeably, yet they carry distinct meanings. Resolution refers to the sampling density of a point cloud—specifically, the minimum distance between two adjacent points—and determines whether fine features can be captured; accuracy, conversely, refers to the deviation between a measured value and the true value, and is typically expressed in terms of volumetric accuracy or single-scan accuracy.

        Devices with high resolution but low accuracy capture rich detail, yet their data is subject to systematic bias;conversely,devices with high accuracy but low resolution yield accurate overall dimensions, though specific details may be missing. In practical applications, an assessment requires a combination of both factors; relying solely on a single metric can easily lead to misjudgment.

        Ⅱ. The Balance Between Measurement Range and Accuracy

        There is an inherent trade-off between the measurement range and accuracy of structured light scanners: the larger the scanning field, the greater the area covered in a single acquisition; however, the actual physical dimension corresponding to each pixel also increases,resulting in a corresponding decrease in accuracy.This constitutes a physical limitation of the optical system, not a defect in the device.

        For large-scale workpieces—such as vehicle bodies or ship hull frames—there are typically two available approaches; the choice of route depends on whether the workpiece's dimensions and precision requirements can be simultaneously satisfied.

        • Utilize a large-format scanning head in conjunction with a photogrammetry system to establish a global control network, followed by regional high-resolution scanning and stitching;

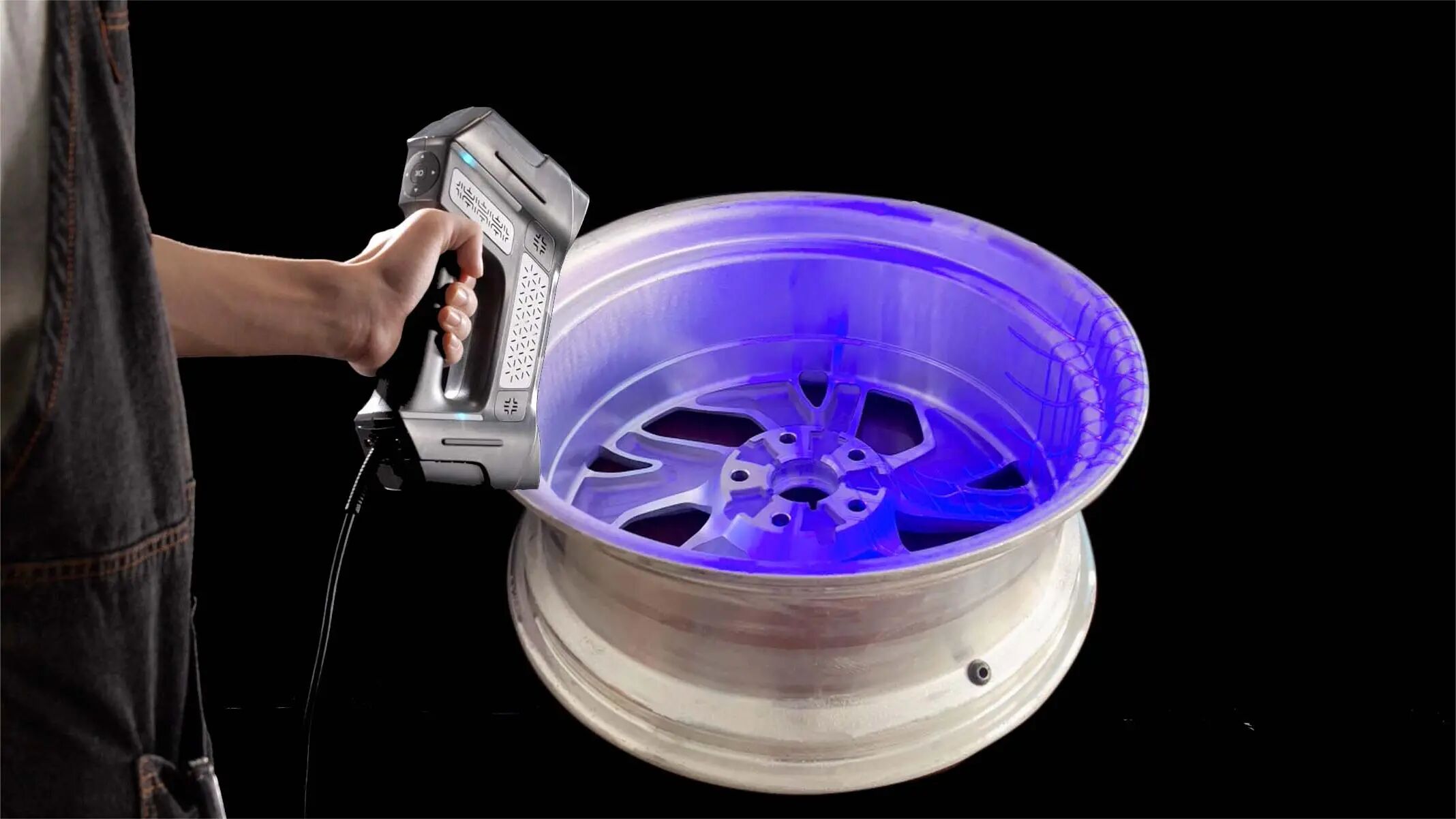

        • Employ a handheld laser scanner, trading off a degree of single-point precision in exchange for flexibility and extensive coverage.

        Ⅲ. The Difference Between Blue Light and White Light

        The type of light source employed by a structured light scanner has a tangible impact on the resulting scan data.

        White light (broadband) is lower in cost but is more susceptible to interference from ambient light and the surface color of the workpiece; blue light (narrowband), conversely, utilizes spectral filtering to effectively suppress ambient light interference, offering superior stability in bright or outdoor environments, and is better suited for scanning dark or colored workpieces.

        Furthermore, certain high-end devices support multi-band or encoded light sources. By employing dynamic exposure strategies, these systems can accommodate a wider range of surface reflectivities, thereby reducing the reliance on scanning sprays. Such capabilities offer distinct advantages when scanning parts composed of mixed materials.

        Ⅳ. Temperature Drift and Calibration Stability

        Temperature fluctuations in industrial environments can cause the optical components of scanners to undergo thermal expansion and contraction, leading to a drift in calibration parameters and a consequent decline in scanning accuracy.

        When selecting equipment, it is essential to pay close attention to the device's thermal drift compensation mechanism: some devices feature built-in temperature sensors coupled with real-time compensation algorithms, enabling them to maintain stable accuracy across a wide temperature range; others, however, rely on recalibration prior to each use to ensure consistency.

        For applications requiring continuous data acquisition over extended periods, or those operating in environments subject to significant temperature variations, the thermal drift specification warrants particular scrutiny; one should not rely solely on the manufacturer's factory accuracy specifications.

        Conclusion

        At BlackboxCV, we don't just sell hardware; we engineer comprehensive 3D measurement and automated inspection workflows tailored to your specific shop-floor challenges.

        Ready to eliminate measurement uncertainty and find the perfect match for your technical requirements?

        ✨Request a Customized 3D Scanning Consultation.
