In automotive and bicycle manufacturing, the vehicle frame serves as the core load-bearing structure. Its dimensional accuracy and weld integrity directly dictate vehicle safety and performance. However, traditional inspection methodologies are struggling to keep pace with the modern manufacturing industry's demands for higher throughput and tighter tolerances.
Vehicle frames feature complex geometric structures composed primarily of welded tubular profiles and sheet metal assemblies, including complex organic surfaces, weld seams, and multi-axis hole patterns. Traditional inspection tools subject manufacturers to severe operational bottlenecks: slow throughput, insufficient accuracy, and high operational costs.
Relying on manual instruments (e.g., calipers and height gauges) or conventional bridge Coordinate Measuring Machines (CMMs) requires point-by-point tactile measurement. This process is time-consuming and labor-intensive, making it unsuitable for high-volume inline or batch inspection. Inspecting a single frame can take several hours, causing severe production line bottlenecks.
Key dimensional metrics—such as weld gap clearances, curvature radii, and hole coaxiality—are difficult to quantify accurately using hand tools. On complex curved profiles and heat-affected weld zones, manual measurement errors frequently cause inspection escapes (allowing non-conforming parts into the supply chain) or false rejections (causing unnecessary rework).
Manual tactile checking only evaluates a limited number of discrete target points, failing to capture the full spatial geometry of the frame. Hidden structural defects, localized thermal warping from welding, and global frame twisting often go undetected, posing potential structural failure risks during field operation.
To address these industry challenges, the BlackboxCV Extr Series handheld laser 3D scanner delivers a high-efficiency, metrology-grade, full-field quality control solution.

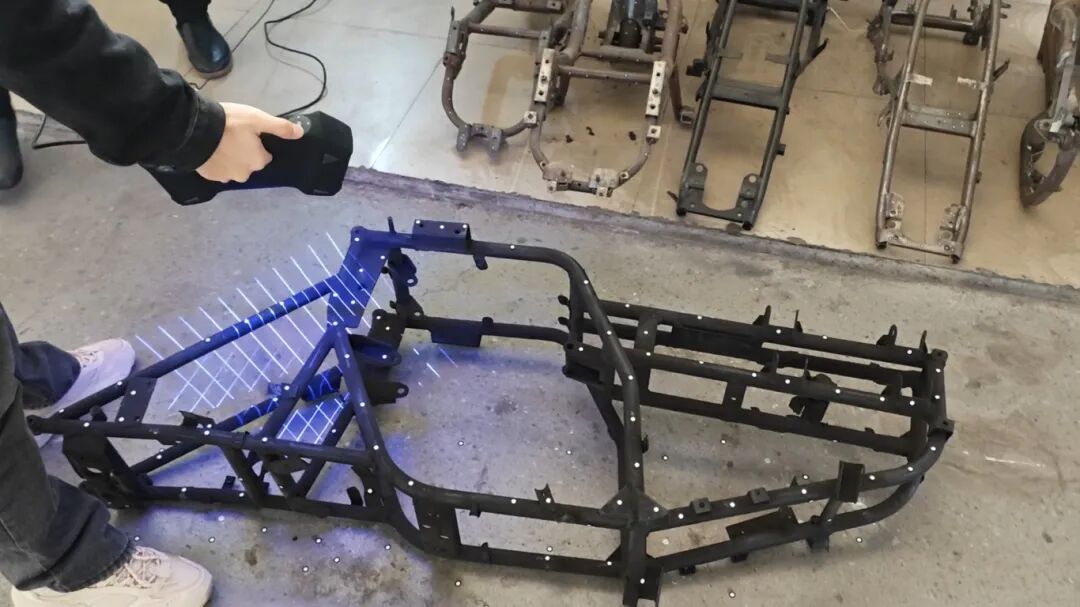

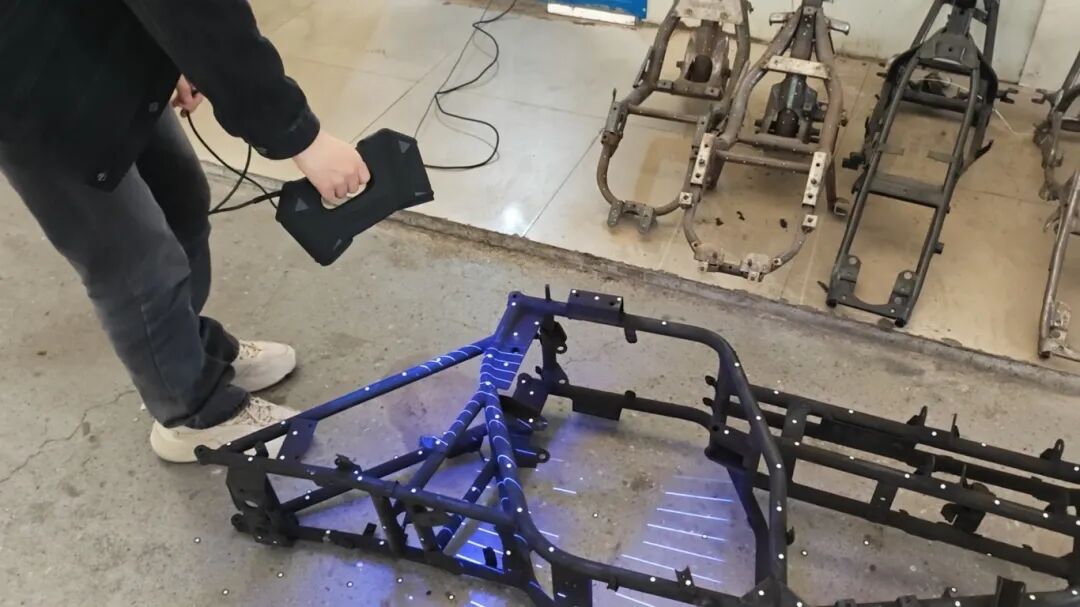

Designed with a lightweight, portable form factor, the Extr Series can be deployed by a single operator directly to the production line, assembly station, or repair bay. The system enables non-destructive, in-situ scanning without disassembling the frame, eliminating component transport risks and seamlessly matching fast-paced factory workflows.
Powered by advanced blue laser technology, the Extr Series achieves metrology-grade accuracy up to 0.02mm. It precisely captures critical geometric features, including hole positioning, tube contours, and profile radii. Whether verifying dimensional compliance on new production frames or quantifying wear and deformation on returned units, the system delivers reliable, objective spatial data.

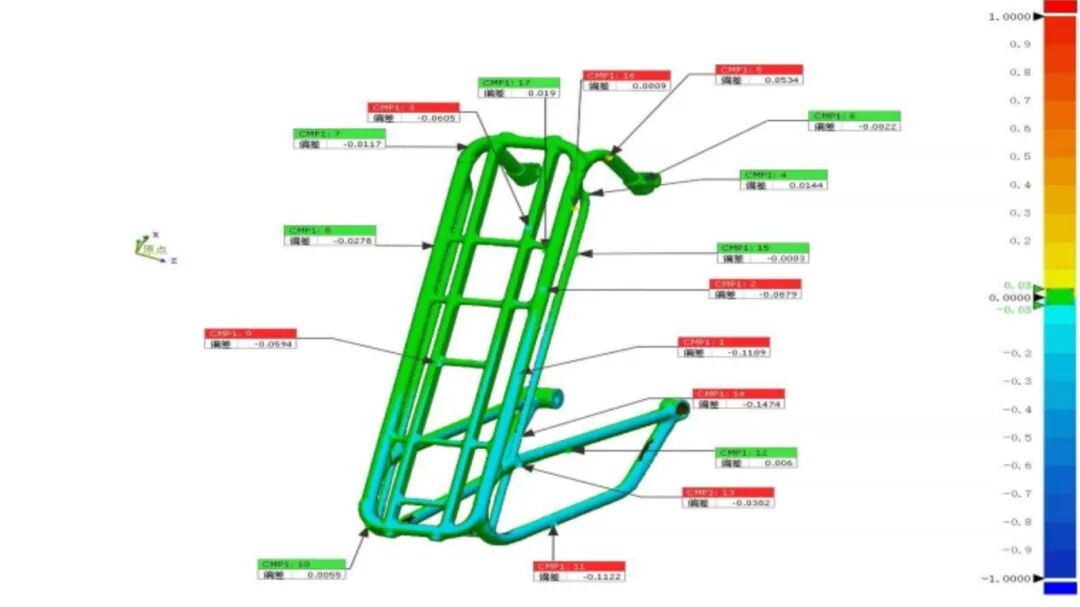

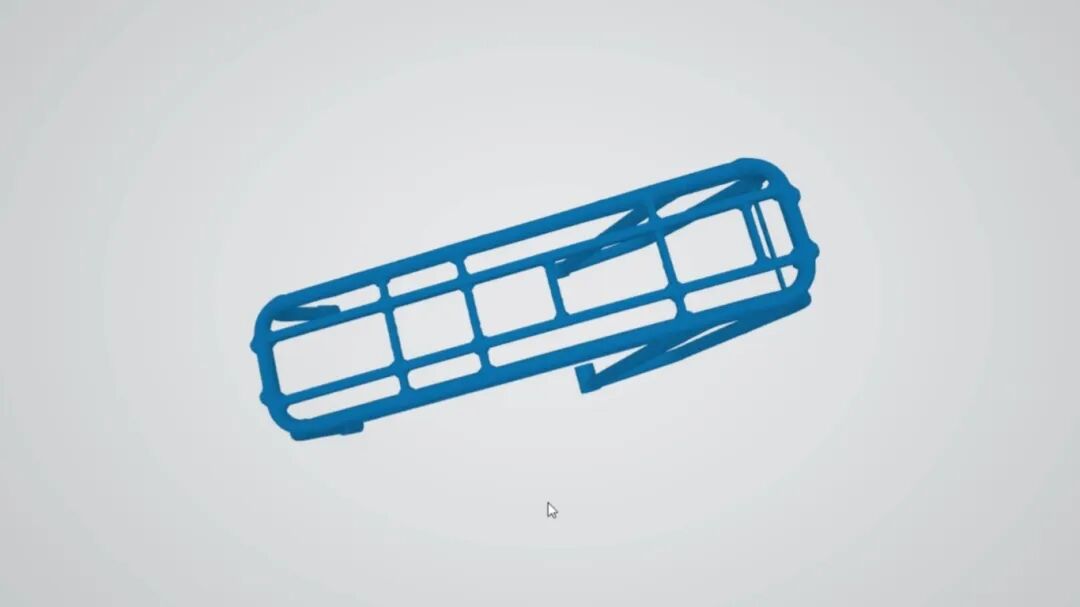

Once acquisition is complete, high-density 3D scan data imports directly into professional inspection software. The platform generates clear 3D deviation color maps, cross-sectional profiles, and automated dimensional inspection reports. These visual analytics provide precise spatial data to guide weld rework, optimize repair processes, shorten cycle times, and lower manufacturing overhead.
Transitioning from manual tactile checking to digital quality control, the BlackboxCV Extr Series resolves traditional bottlenecks in efficiency, precision, and operator subjectivity. By converting physical frames into actionable 3D data, it enables manufacturing enterprises to optimize welding processes, reduce scrap rates, enhance product safety, and accelerate their transition toward smart, precision-driven manufacturing.
The BlackboxCV Extr Series serves as a pivotal digital transformation tool for industrial pattern shops. By replacing intuition with precision data, the Extr Series redefines efficiency and quality benchmarks across modern foundries.
Q1:Why is traditional manual measurement inefficient for vehicle frame quality control?
A1:Vehicle frames feature complex tubular geometries, weld seams, and free-form curves. Traditional manual tools like calipers or bridge CMMs require point-by-point tactile measurement, which can take hours per frame, cause production bottlenecks, and miss localized thermal deformation.
Q2:What level of accuracy does the BlackboxCV Extr Series achieve for frame metrology?
A2:The BlackboxCV Extr Series utilizes blue laser technology to achieve metrology-grade single-frame accuracy up to 0.02 mm, allowing precise measurement of hole coaxiality, surface curvature, and thermal weld distortion.
Q3:Can the Extr Series 3D scanner be used directly on the shop floor?
A3:Yes. The Extr Series features a lightweight, ergonomic portable design that enables non-destructive, in-situ 3D scanning directly on the shop floor, assembly line, or repair station without disassembling the vehicle frame.
