Application | Extr Series 3D Scanner: Overcoming Quality Inspection and Wear Analysis Challenges for Screw Pumps

Screw pumps are widely used across multiple industries, including machinery manufacturing. Their dimensional accuracy and surface condition directly determine production efficiency and product quality. However, for a long time, traditional inspection methods have left companies struggling with low efficiency, inadequate accuracy, and difficulties in repair.

I. Core Industry Requirements: Screw Pump Inspection Must Be Both Accurate and Efficient

In industrial production, screw pumps are used across a wide range of sectors, including industry, chemicals, food processing, and pharmaceuticals. Their inspection requirements are mainly concentrated in two essential application scenarios:

1. New screw pumps must pass the "precision test" before leaving the factory:

Newly manufactured screw pumps must strictly comply with the requirements of the design drawings, particularly in terms of key parameters such as thread tooth profiles and pitches. Even minor deviations may cause assembly problems in downstream equipment and reduce material conveying efficiency. Companies need to quickly verify whether screw pumps produced in batches meet dimensional tolerances and prevent nonconforming products from entering downstream processes.

2. Wear levels must be accurately determined when repairing used screw pumps:

During long-term operation, screw pumps may suffer surface wear caused by material friction and chemical corrosion. To reduce costs, companies typically repair and reuse them through overlay welding. However, accurate identification of the worn areas and wear depth is a prerequisite for repair. If the wear amount is estimated inaccurately, excessive overlay welding may result in unnecessary machining waste, while insufficient overlay welding may leave the pump unusable after repair.

II. Extr Series 3D Scanner: A "Digital Tool" for Screw Pump Inspection

To address these challenges, Blackboxcv's Extr series 3D scanner, with its advantages of portability, high accuracy, and fully digitalized workflows, can complete comprehensive screw pump inspection directly on the production floor, fundamentally transforming traditional inspection methods.

1. Lightweight handheld design enables direct on-site scanning

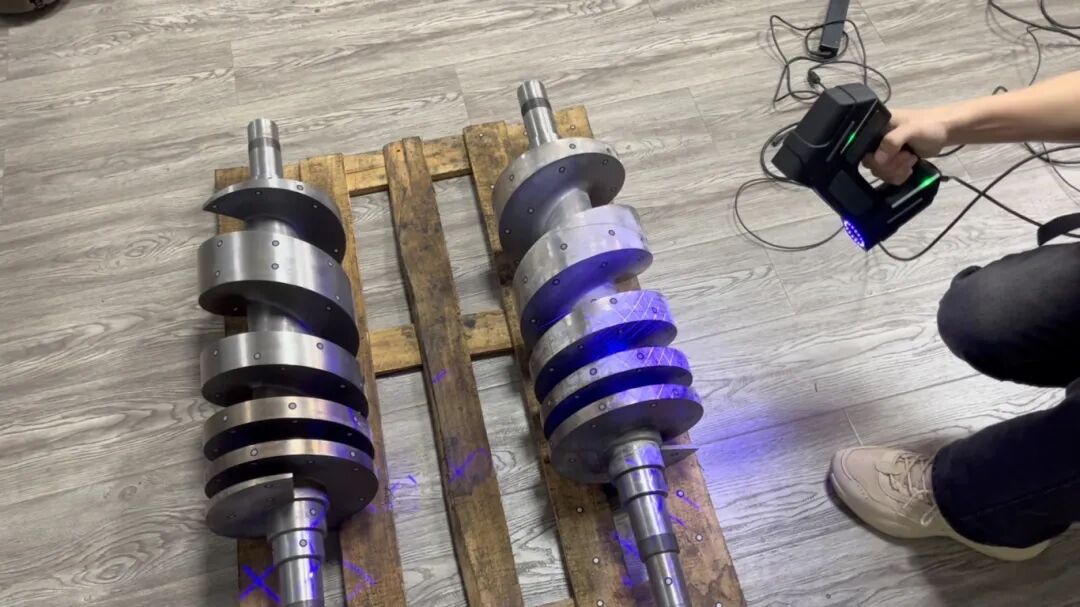

The Extr series 3D scanner features a lightweight handheld design that can be operated by a single person. There is no need to repeatedly transport the workpiece, as scanning can be completed directly at the production site.

2. Accuracy of up to 0.02 mm captures every detail without omission

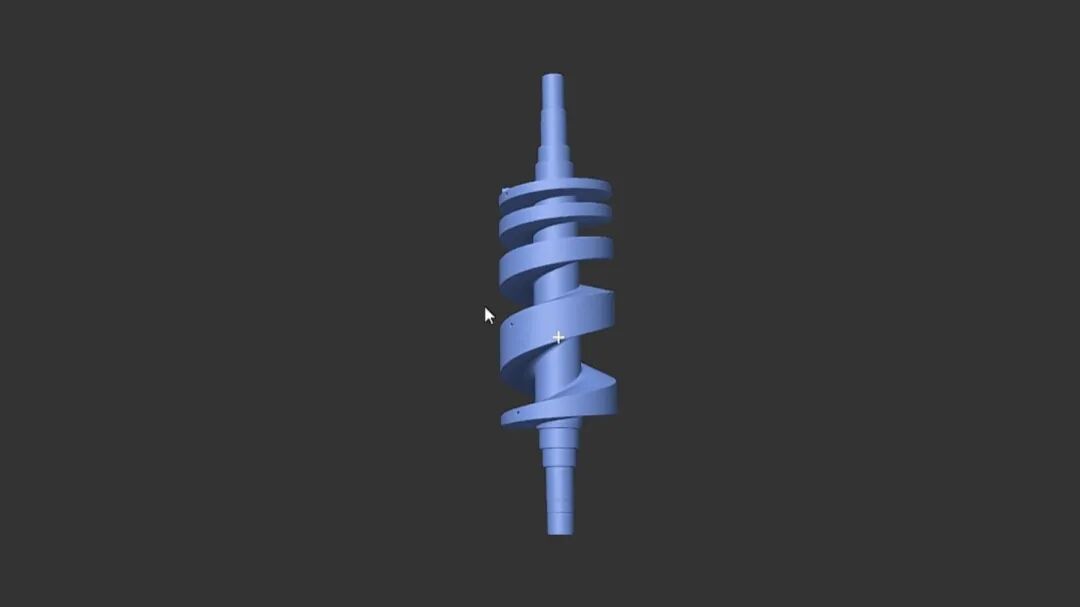

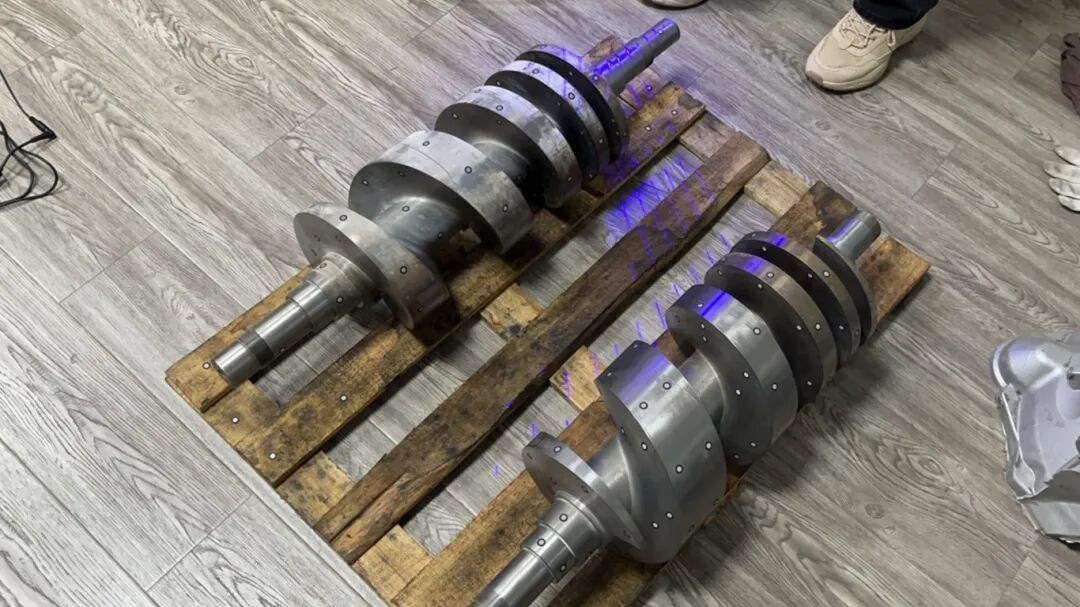

The Extr series 3D scanner delivers scanning accuracy of up to 0.02 mm, enabling precise capture of every detail of the screw pump. Unlike traditional point-by-point measurement, the Extr series 3D scanner can acquire complete 3D point cloud data from the screw surface in a single process and generate an accurate 3D model.

3. Digital analysis enables repair solutions accurate to the micrometer level

The scanned 3D data can be seamlessly integrated with professional inspection software. By comparing the data with the design model, the software generates a detailed quality inspection report, making dimensional deviations, wear, material loss, and other issues immediately apparent.

III. Application Value: Reducing Costs and Increasing Efficiency for Precision Industrial Manufacturing

Blackboxcv's Extr series scanner significantly improves the efficiency of batch inspections, prevents downstream complaints caused by dimensional issues, and ensures product delivery quality. During the repair of used screw pumps, accurate wear analysis reduces the rework rate of overlay welding and extends screw pump service life. It helps companies shift from experience-driven operations to data-driven operations, establishing a solid data foundation for intelligent manufacturing.

The Extr series 3D scanner not only overcomes the traditional challenges of screw pump quality inspection and wear analysis, but also provides industrial companies with a new approach to reducing costs and increasing efficiency through digital technology.

In the future, Blackboxcv will continue to develop its expertise in industrial inspection and use more efficient and accurate 3D scanning solutions to address the inspection challenges of more heavy-duty components, helping companies advance toward a new stage of higher-quality manufacturing.
