BlackboxCV 3DMatrix_Gen2 Upgrade: Self-Developed AI Model Delivers Performance Leap

I. AI Algorithms Deliver Richer Scanning Details

Powered by the self-developed domain-specific AI model built into 3DMatrix_Gen2, the newly upgraded algorithm architecture can intelligently reconstruct the detailed features of workpieces and perform super-resolution enhancement processing.

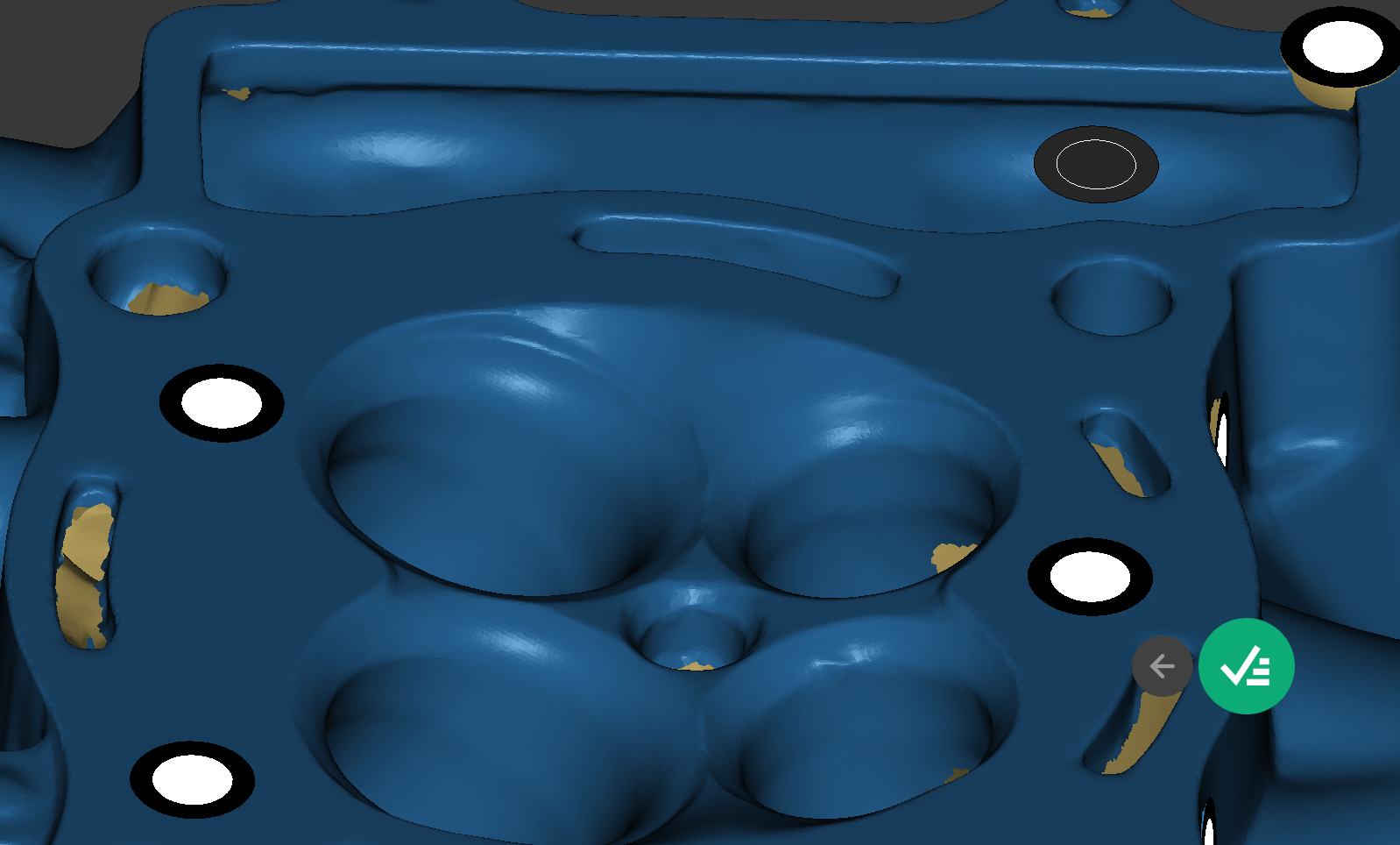

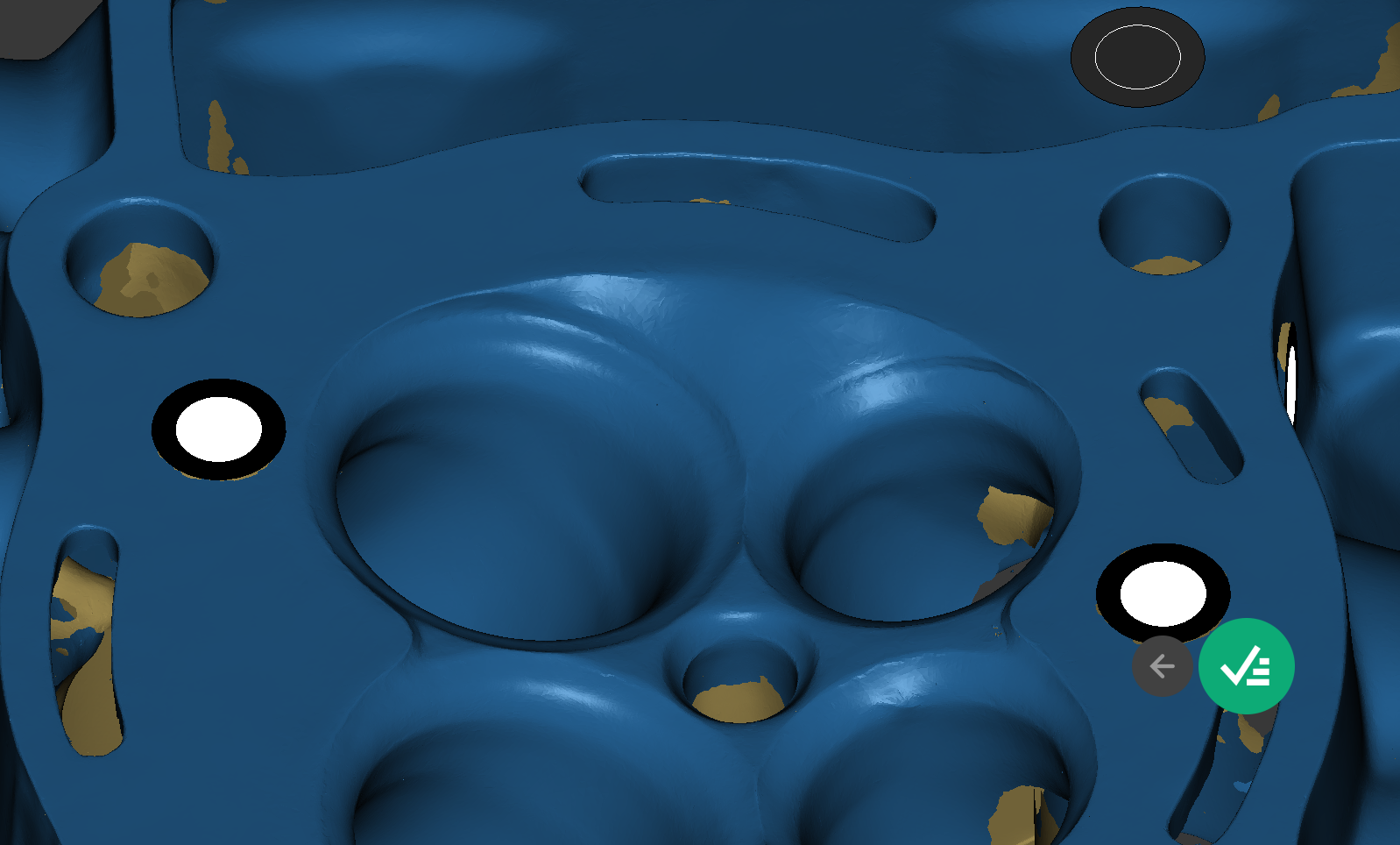

The comparison of the upgraded data is immediately apparent: under the previous solution, the model surface is visibly rough, the wrinkles on curved surfaces are more pronounced, some areas are blurry, and the level of detail restoration is relatively low. Equipped with AI algorithms, 3DMatrix_Gen2 produces smooth and continuous model surfaces, sharp and clean edge contours, and regular, natural boundaries around holes and grooves. Micrometer-level concave and convex textures on the workpiece surface can be captured accurately.

AI-assisted efficiency improvements eliminate the laborious work of repeated repairs and manual mesh reconstruction. A single scan can obtain high-fidelity 3D data, meeting the stringent requirements for detail in precision inspection and reverse engineering design.

Ⅱ. AI Algorithms Further Optimize Thin-Walled Features

3DMatrix_Gen2 is equipped with a self-developed domain-specific AI model. In response to the issues commonly encountered in thin-wall scanning—including edge breakage, missing surface regions, and missing data on thin ribs and shell sidewalls—specialized algorithmic improvements have been implemented.

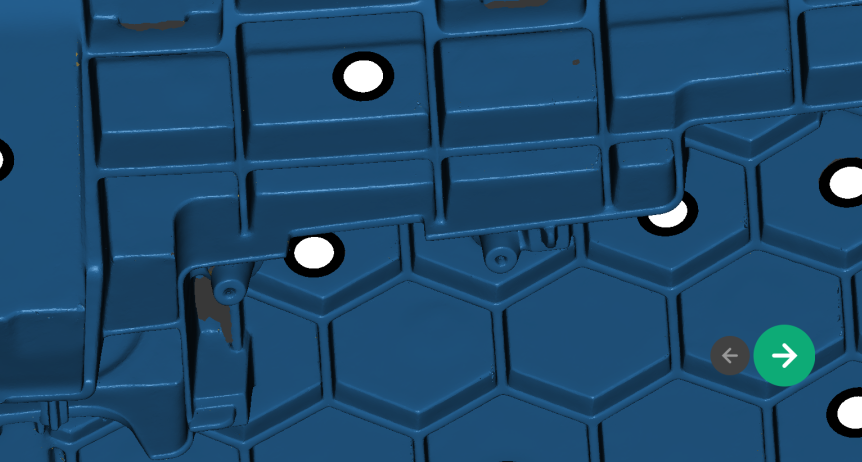

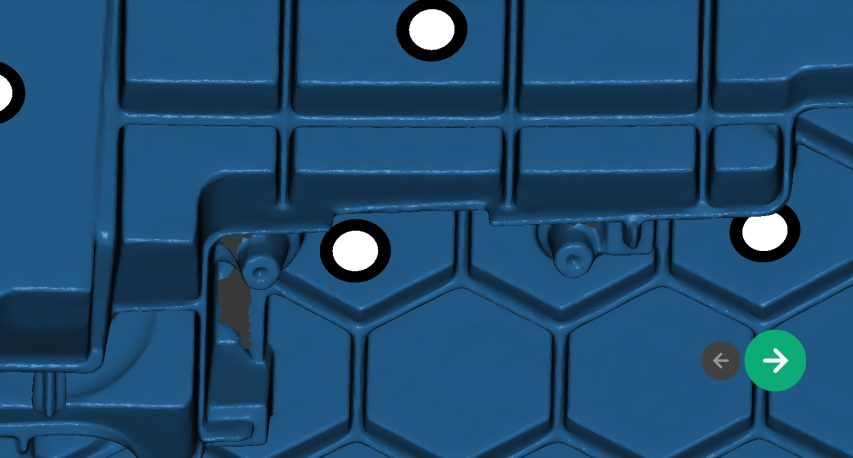

Comparative testing shows that the previous solution still had limitations in restoring thin walls and shells with high precision. Relying on AI-based intelligent prediction and real-time data compensation technology, 3DMatrix_Gen2 can stably capture extremely thin structures, ensuring to a greater extent that thin edges remain continuous without tearing and that the curved surfaces of thin shells remain smooth and complete.

In this scenario, the integrity and usability of the native scan data are significantly improved, substantially reducing the need for post-processing repairs and supporting reverse modeling and dimensional inspection for sheet metal parts, thin-walled injection-molded parts, and thin-shell castings.

Ⅲ. AI Algorithms Produce Rounder Circular-Hole Contours

Machined and cast workpieces often contain numerous holes with deep inner-wall structures. Limited light coverage and restricted incidence angles can easily result in uneven point-cloud acquisition, arc distortion, and hole-position deformation.

3DMatrix_Gen2 is specifically optimized for the contour algorithms of circular-arc holes. The AI algorithms can accurately identify the geometric features of holes, perform adaptive smoothing and correction of the original point cloud, optimize circular-arc fitting, restore the actual curved surfaces of hole walls, and ensure roundness performance.

Native scan data can directly support the inspection of geometric tolerances, including hole diameter, roundness, and concentricity. It is suitable for precision measurement and reverse development of industrial workpieces such as flange components, powertrain housings, and precision castings and forgings.

Ⅳ. Hardware as the Foundation, Algorithms as the Boundary

The final results of 3D scanning and the quality of the finished product depend on the coordinated performance of the hardware acquisition capabilities and the supporting software.

The scanner is responsible for emitting scanning beams and collecting the original point cloud. It determines the native accuracy, resolution, and acquisition stability of the point cloud and serves as the foundation for all high-precision data. The software, meanwhile, receives the original point cloud output by the scanner and performs a series of processes, including point-cloud denoising, alignment and registration, hole filling, and mesh reconstruction, converting the original point cloud into a clean and usable triangular mesh model.

Software cannot create details that the hardware has not captured out of thin air. However, algorithmic shortcomings can directly waste high-quality original point-cloud resources, resulting in a range of issues such as blurred textures and distorted features.

Building on its original capabilities, 3DMatrix_Gen2 incorporates a self-developed domain-specific AI model. The AI model intervenes in real time throughout the software processing workflow, intelligently identifying and enhancing thin walls, circular holes, and fine surface features. Without exceeding the physical limits of the hardware, it unlocks the potential of the original point cloud and maximizes the restoration of the workpiece's true geometric form.

Through algorithmic innovation, the native performance of the hardware is fully realized, delivering an all-around improvement in data completeness, operational efficiency, and user experience.

Conclusion: Continuously Unlocking the Potential of Software-Hardware Synergy

The combination of AI enhancement and the reconstruction of native data through a local small model is one of the core aspects of the 3DMatrix_Gen2 upgrade. This version will continue to evolve, achieving a breakthrough in model packaging speed, with overall speeds generally increased by 5–10 times. This will substantially shorten the overall modeling cycle, further connect the entire workflow from high-precision scanning to high-efficiency model generation, and continuously unlock the productivity of industrial 3D digitization.
