After the point cloud data of a circular hole is meshed, jagged edges may appear and the profile may become stretched or deformed. This is related to the geometric characteristics of annular structures, which naturally contain concave surfaces and boundaries. If the point cloud density along the circular hole boundary is insufficient and scanning noise exists on the inner wall, the reconstruction algorithm may easily confuse the inner and outer regions of the hole during meshing, resulting in incorrect triangular facet connections.
3DMatrix_Gen2 strengthens the processing logic for annular hole structures. The algorithm can automatically identify circular holes on the workpiece and distinguish valid point clouds on the hole wall from surrounding noise points. It then applies geometric constraints based on the circular characteristics of the hole itself during mesh generation, avoiding incorrect facet connections and restoring the rounded profile of the hole to a greater extent.

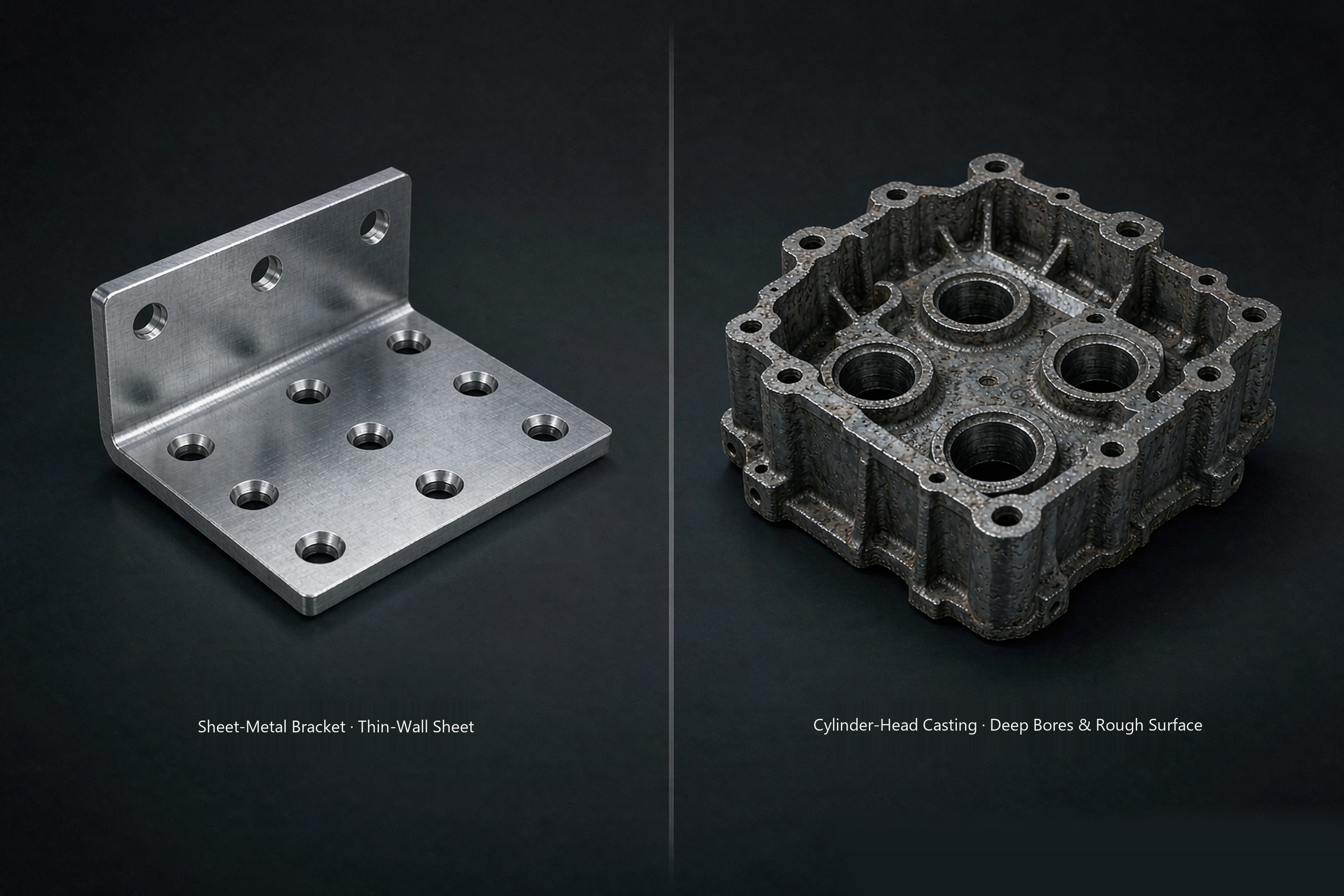

Two types of workpieces containing numerous countersunk assembly holes were selected for this test: sheet-metal brackets and cylinder-head castings. Sheet-metal brackets are thin-walled, thin-plate workpieces. Due to the limited material thickness, the point clouds captured along the countersunk hole boundaries are prone to dispersion. Cylinder-head castings have inherent casting roughness on their raw surfaces, and their countersunk holes are deeper, making the hole-wall areas more susceptible to the inclusion of unwanted points. Both are typical workpieces that present relatively high challenges for circular hole reconstruction in industrial inspection.

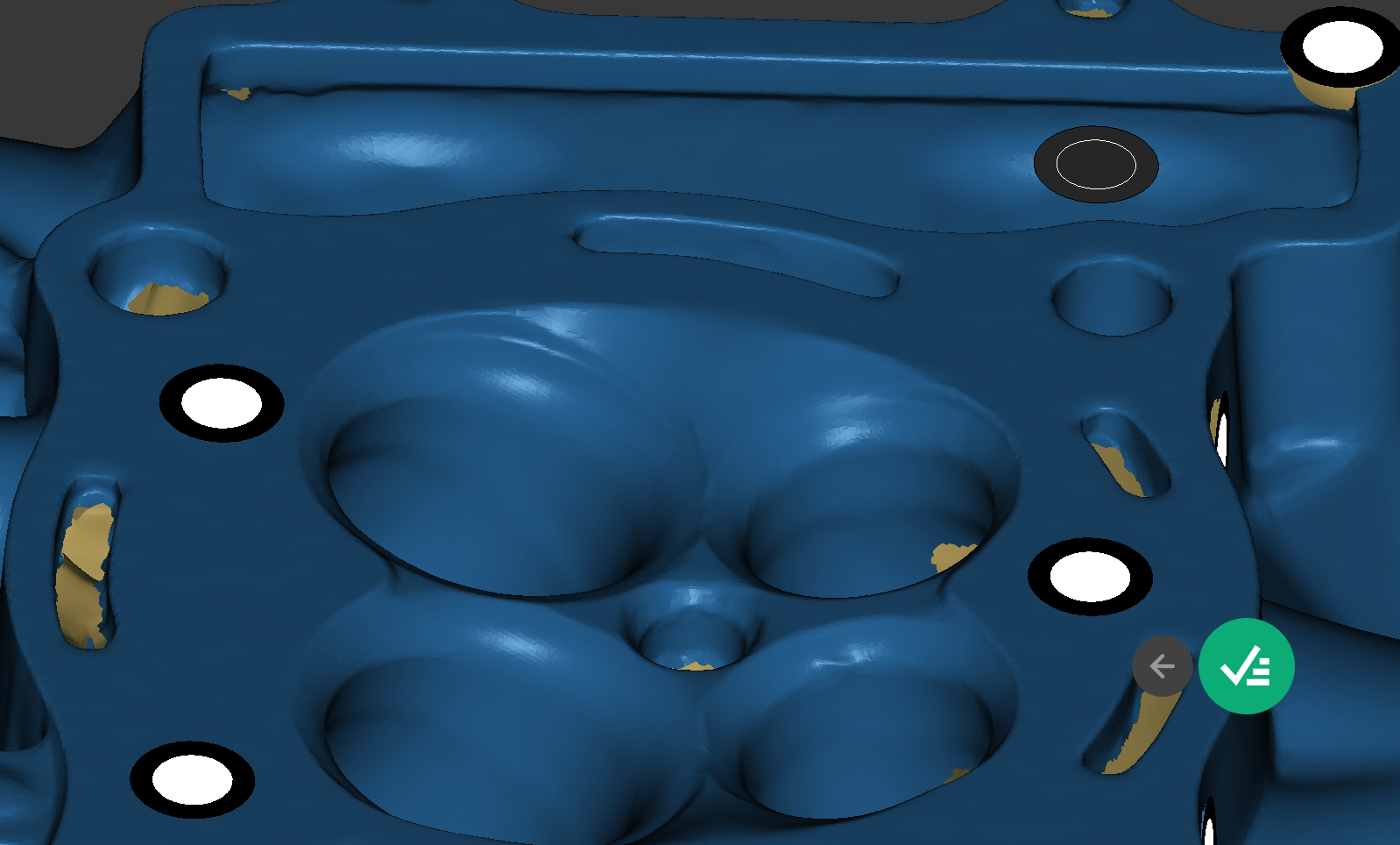

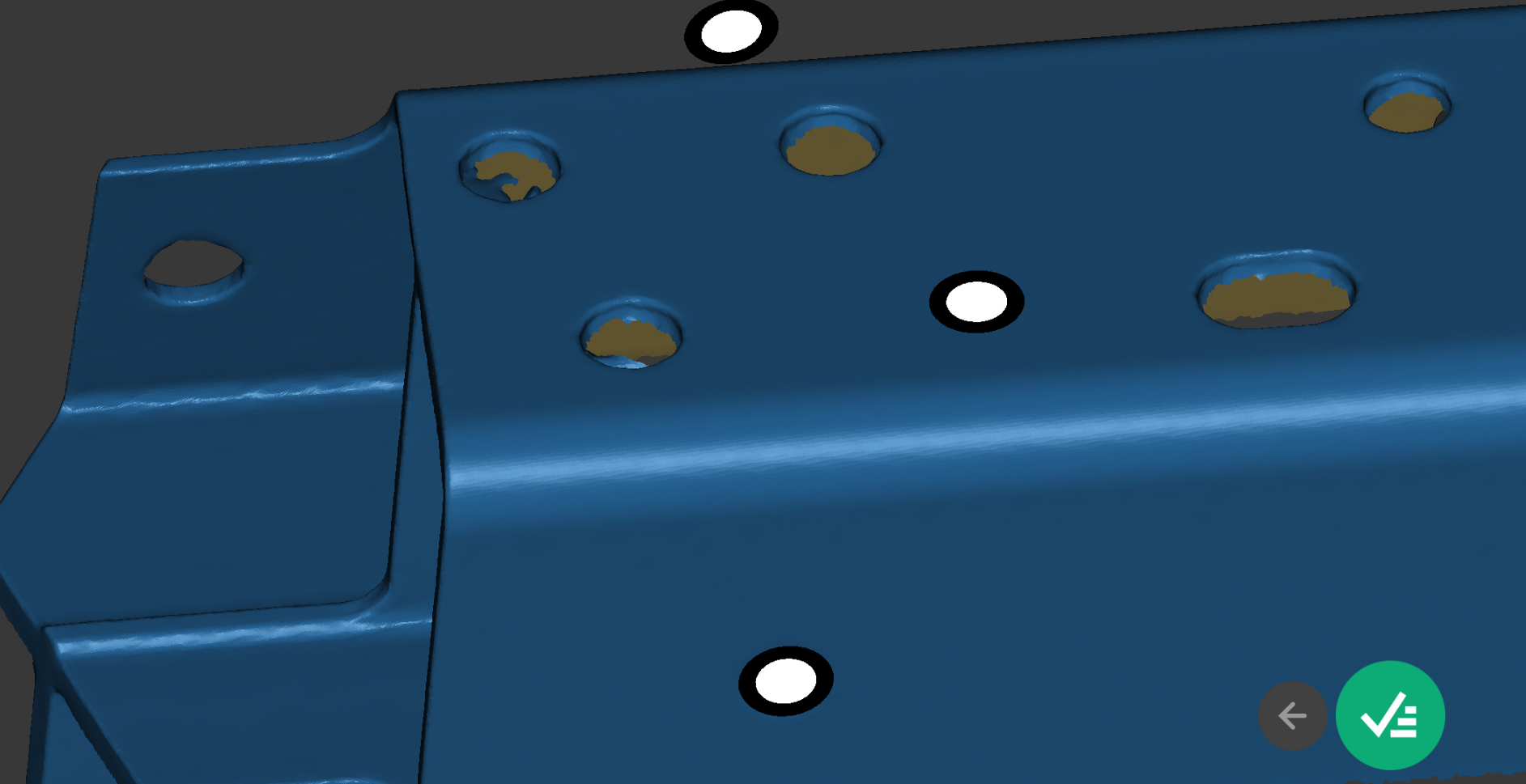

In the mesh generated by the original algorithm, the hole-mouth profiles exhibit a certain degree of unevenness. Visible edge jaggedness is present, and the lines are not sufficiently smooth.

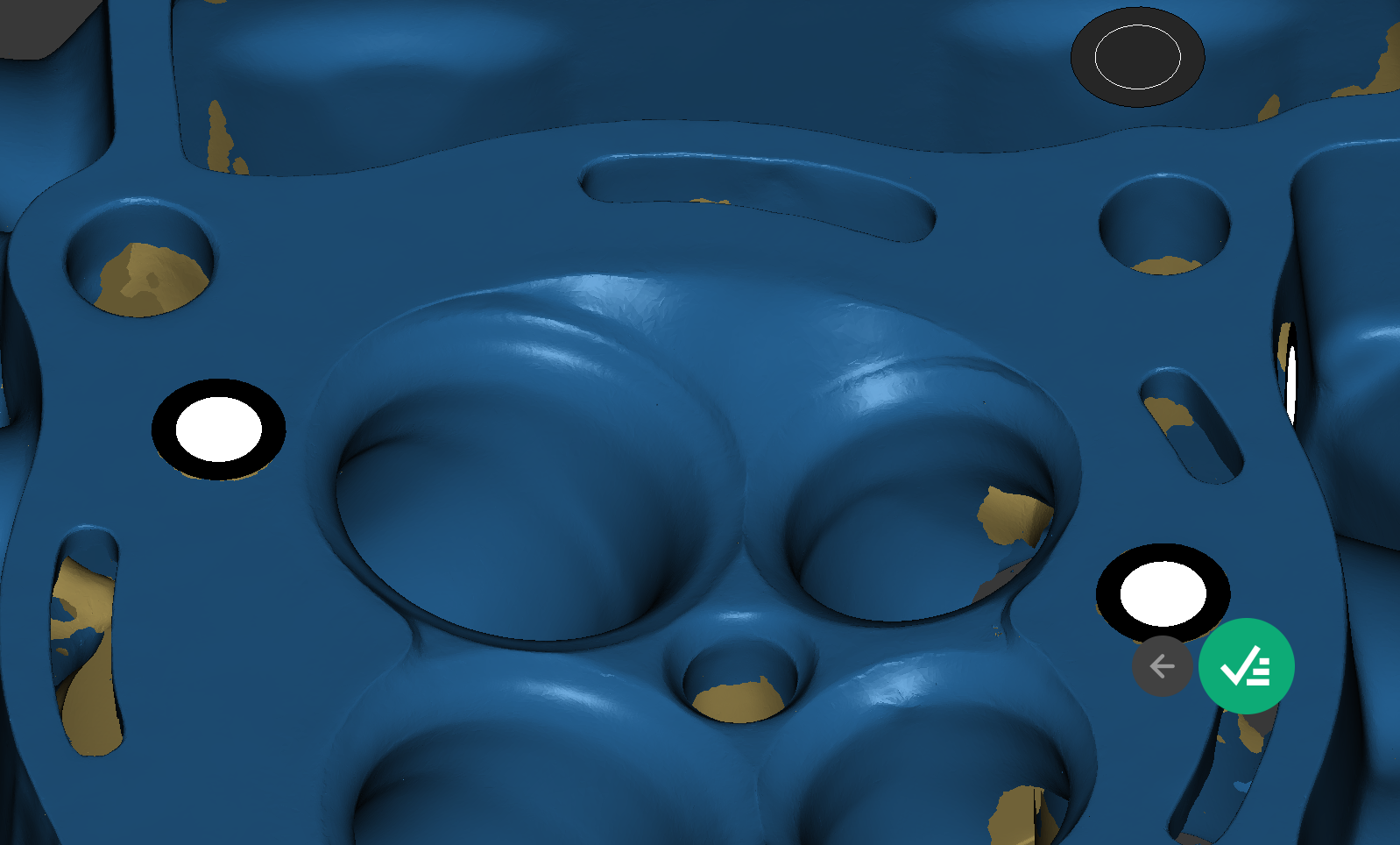

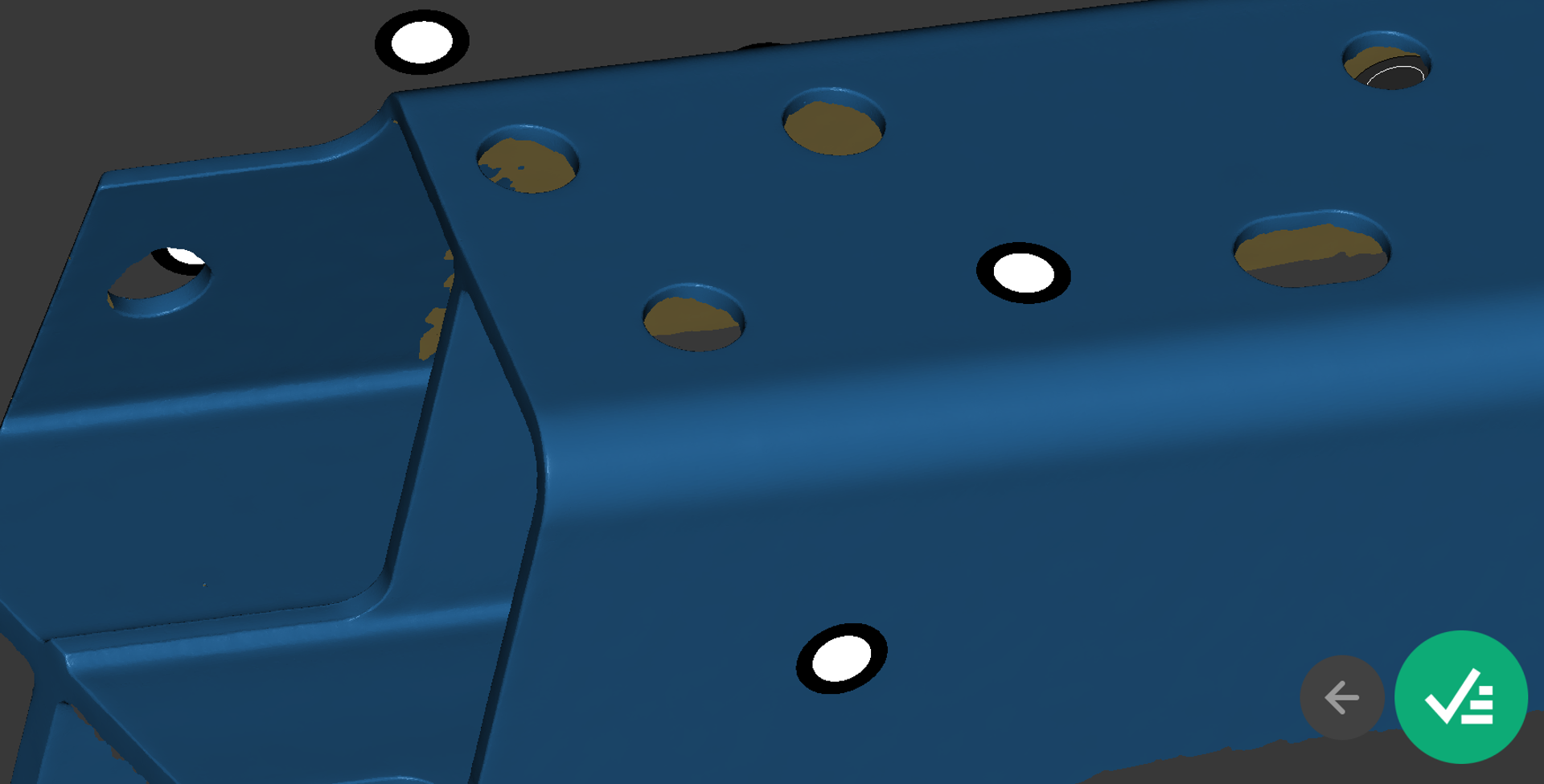

The updated algorithm in 3DMatrix_Gen2 automatically identifies the structural characteristics of annular holes and regularizes the point clouds around the hole mouths. The countersunk hole profiles in the generated models are smoother and more rounded, without unevenness or edge jaggedness, and the circular hole shapes correspond more closely to the actual workpieces.

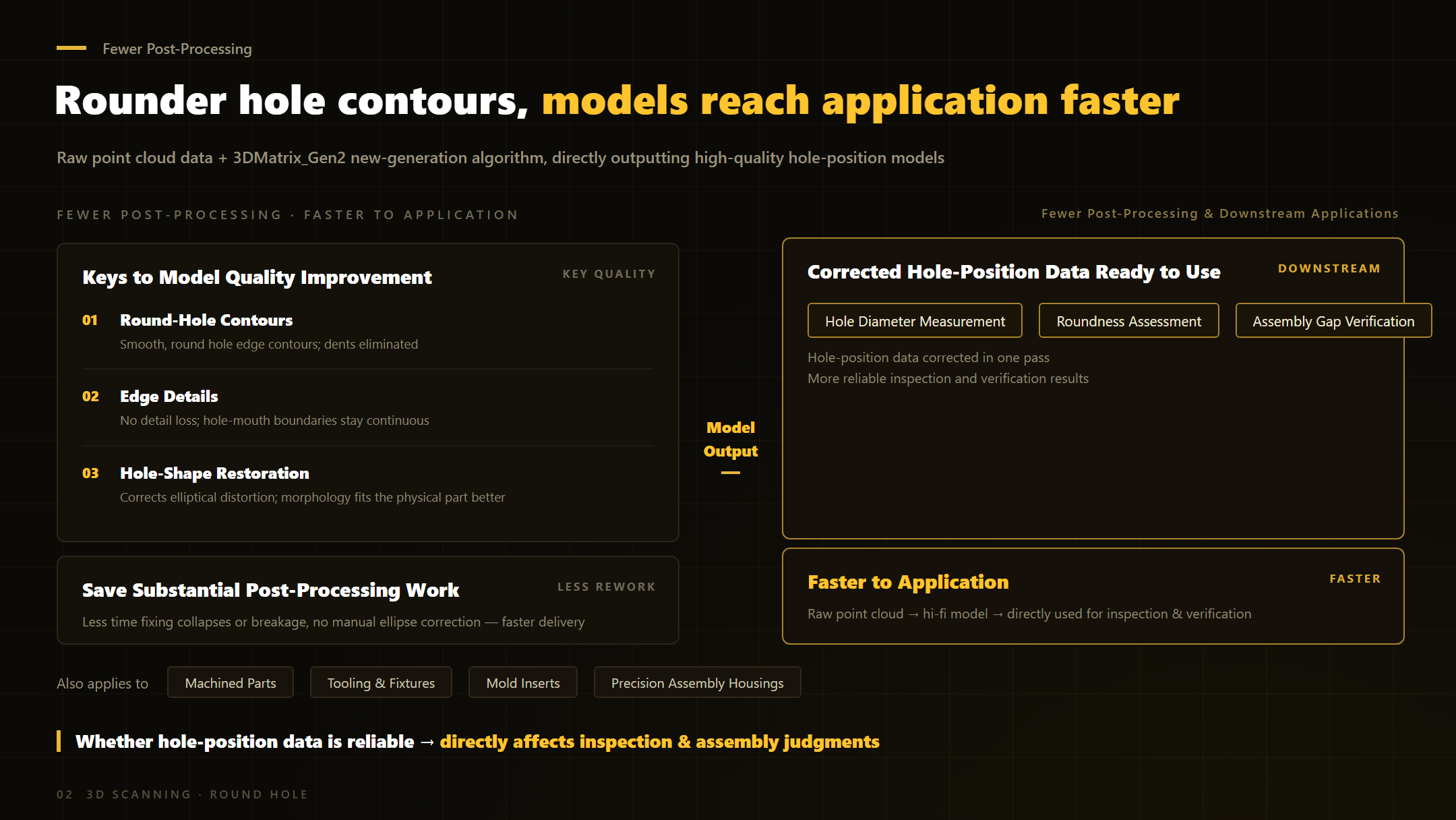

When the original point cloud data is processed using this updated algorithm, the resulting models have higher-quality circular hole profiles, significantly reducing the amount of post-processing required by engineers. The corrected hole data can be directly used for hole diameter measurement, roundness evaluation, assembly clearance verification, and other applications. It is suitable for scenarios involving machined components, tooling and fixtures, mold inserts, and precision assembly housings.
This 3DMatrix_Gen2 algorithm upgrade improves performance in circular hole profile optimization, detail enhancement, thin-walled feature optimization, and other areas. However, realizing these capabilities places certain demands on computer performance. It is recommended to use an AMD processor with a high boost clock, a dedicated NVIDIA graphics card with ample video memory, and sufficient system memory to ensure the software can process large-size, high-density point cloud data with adequate capability and efficiency. Low-specification computers may be unable to process excessively large files or may experience reduced processing speeds.
