In recent years, a large number of artificial joint prostheses have been utilized clinically to replace damaged or diseased native joints. As these prostheses must remain within the patient's body for extended periods, even micron-level deviations in geometric morphology can amplify the risks of wear and loosening. Such deviations not only affect the service life of the prosthesis but also directly impact the patient's quality of life for years to come.

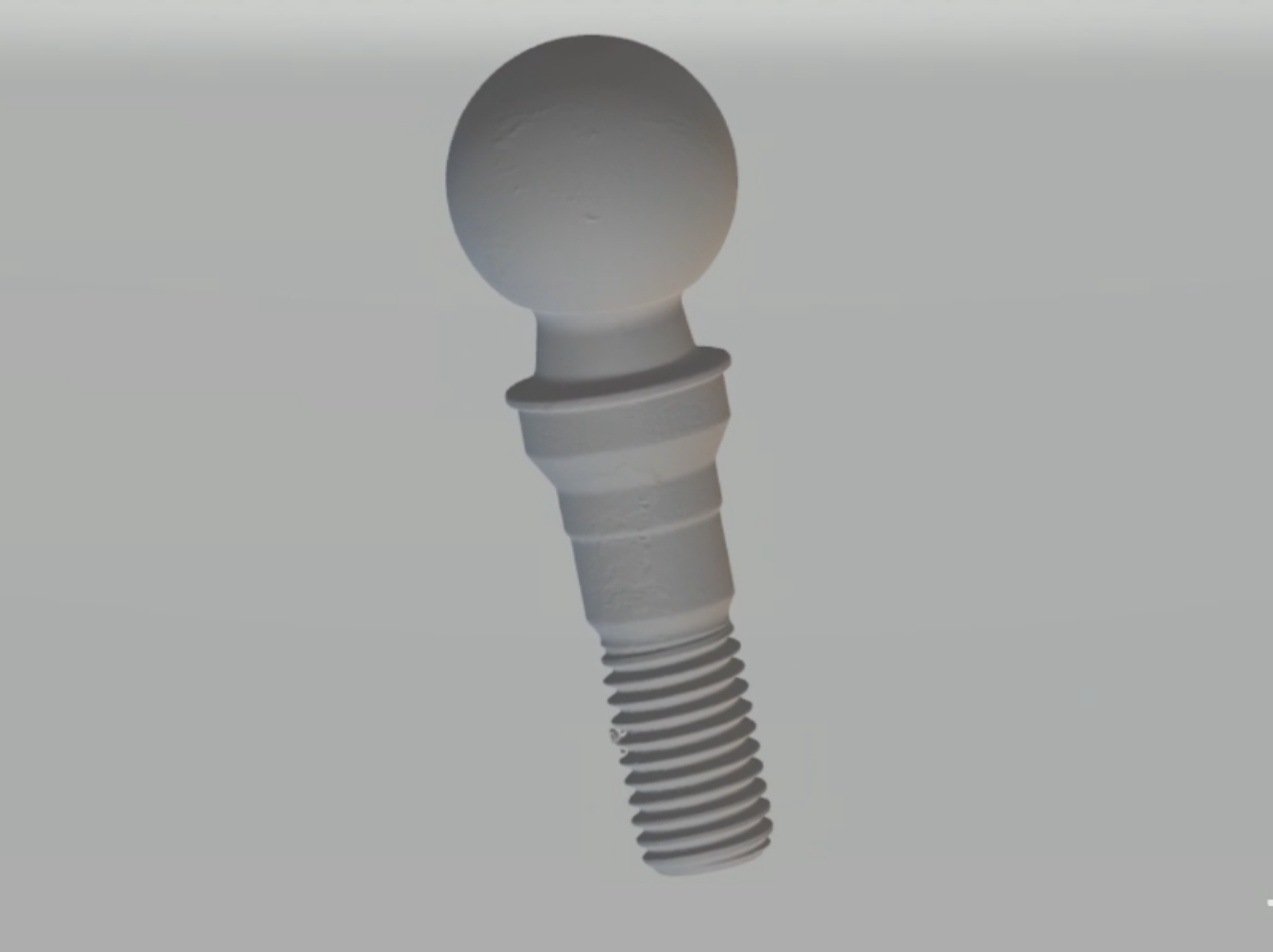

The scanning subject of this project is a femoral prosthesis, constructed from a composite of a medical titanium alloy stem and a ceramic ball head. Featuring high biocompatibility, it serves as a core medical implant for joint replacement surgery. The processing tolerances for such prostheses reach the micron level; any distortion or omission in the acquired data will directly compromise the safety and reliability of the product during subsequent production and processing.
Consequently, the 3D data acquisition and reverse modeling of the femoral prosthesis must be meticulous and rigorous, with stringent requirements for scanning precision, data authenticity, and model compatibility.
The customer sought to achieve high-precision 3D data acquisition and reverse modeling for the prosthesis, utilizing the resulting models for subsequent processing, production, and dimensional inspection to establish a complete and credible 3D data foundation for the implants.
In the past, verification relied primarily on specialized templates and customized gauges combined with manual visual comparison. These methods present significant limitations when dealing with complex free-form surface implants:
Templates and gauges can only verify a few preset critical cross-sections. The intermediate surfaces between these sections cannot be quantitatively acquired, making it difficult to support reverse modeling.
When product iterations, modifications, or single-item quality traceability are required, there is a lack of a complete digital data source corresponding to the physical object.
Some enterprises have attempted to use standard optical scanning equipment for data acquisition, but the workpiece itself presents substantial obstacles: the ceramic ball head has a highly reflective surface, which often leads to data loss during direct scanning. Even when a developer is applied to improve the surface condition, data in critical areas may still be lost if the equipment lacks sufficient detail restoration and anti-interference capabilities.

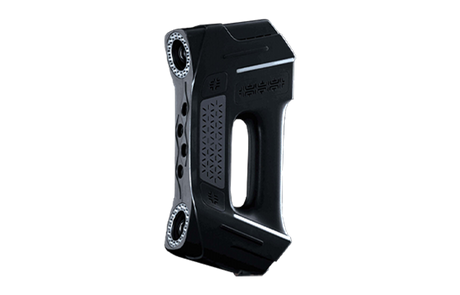

This solution utilizes the Blackboxcv Extr series handheld 3D scanner.
Prior to scanning, a developer is applied to the workpiece for surface pretreatment to eliminate the high-reflectivity effects of the ceramic ball head. The Extr series is equipped with blue laser technology, offering strong anti-interference capabilities and high scanning precision, which effectively captures the subtle structures of the object. Cross laser lines acquire the surfaces, textures, fine fillets, and transition structures in a single pass.

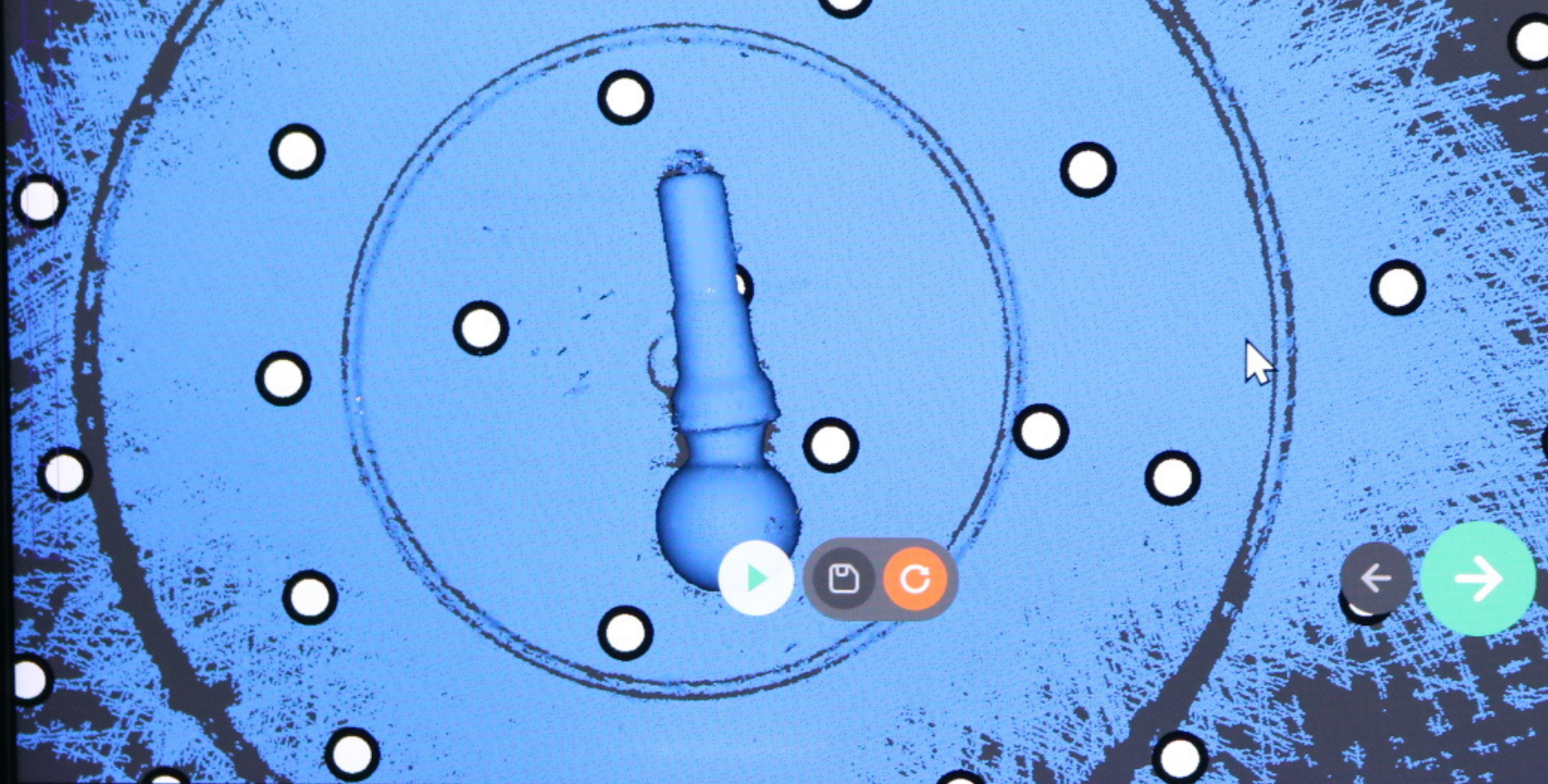

The scanning process features real-time synchronous imaging, with 3D data transmitted to the computer terminal instantaneously, ensuring stable data transmission throughout. The splicing accuracy of the ball head and the stem was verified on-site and remained within the expected range.

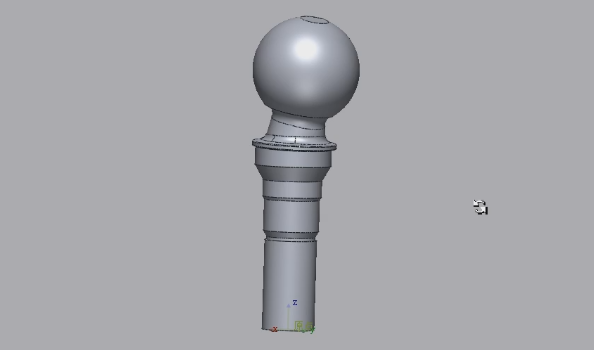

The point cloud data is fitted to generate a complete point cloud model, encapsulated as an STL mesh file, and imported into professional reverse modeling software for refined processing to output an STP 3D model. This file can be directly utilized for processing, production, and dimensional inspection.
• Following developer pretreatment, both the highly reflective ceramic ball head and the titanium alloy stem can be fully captured;
• The blue laser cross-beams completely capture fine fillets and transition structures without the need for repeated supplementary scans;
• Real-time synchronous imaging allows for the immediate on-site confirmation of the acquisition range and data integrity;
• It establishes complete 3D digital archives for the product, ensuring precise quality traceability.
By implementing the Blackboxcv Extr series 3D scanning solution, the customer has established a full-process workflow for prosthesis data acquisition and reverse modeling:
• Full-dimension data acquisition, maintaining complete 3D digital archives for the objects;
• STP models integrate directly with processing, production, and dimensional inspection, ensuring a unified data source without the need for secondary conversion.
This solution establishes a traceable 3D data foundation for every prosthesis implanted into the human body, effectively safeguarding the quality threshold for medical implants.
Why is 3D scanning essential for artificial joint prostheses?
Artificial joints require micron-level precision to function correctly within the human body. 3D scanning ensures that geometric deviations are minimized, significantly reducing the risks of wear and loosening while extending the implant's service life and ensuring patient safety.
How does blue laser technology improve the scanning of medical implants?
Blue laser technology, featured in the Extr series, provides superior anti-interference capabilities and high precision. It is particularly effective at capturing subtle structures, textures, and fine fillets on complex surfaces like titanium alloys and ceramic components in a single pass.
Can 3D scanners capture highly reflective surfaces like ceramic ball heads?
Yes. By using a developer pretreatment to eliminate reflections and employing advanced blue laser scanning, even highly reflective ceramic ball heads can be fully captured without data loss, ensuring the integrity of the 3D model.
What are the primary benefits of reverse modeling in orthopedic manufacturing?
Reverse modeling allows manufacturers to convert physical implants into high-precision STP 3D models. These digital files serve as a unified data source for CNC processing, dimensional inspection, and product iterations, ensuring consistency across the production line.
How does 3D scanning support quality traceability for medical devices?
3D scanning establishes a complete and permanent 3D digital archive for every manufactured implant. This provides a credible data foundation for long-term quality tracking, single-item traceability, and regulatory compliance.
What file formats are provided for subsequent processing?
The scanning process typically generates high-density point clouds encapsulated as STL mesh files.These are then refined in professional software to output STP files,which are standard for industrial manufacturing and quality inspection.
