In the machinery manufacturing sector, many enterprises face a critical operational reality: a large volume of legacy mechanical components remain in daily service on the shop floor, yet their original 2-D engineering drawings have been lost, damaged, or degraded over time. Without parametric 3D CAD models, companies cannot implement digital asset management, integrate these components into modern smart manufacturing workflows, or rapidly replicate parts when critical equipment breaks down.
Taking an industrial structural connecting bracket from a machinery manufacturer as a case study, this article demonstrates how the Extr Series handheld laser 3D scanner by BlackboxCV provides a solution to this universal manufacturing bottleneck.
In traditional machining and manufacturing plants, structural components and custom connecting fittings consistently present three primary operational challenges:
For machinery operating for ten years or longer, the original technical documentation typically exists only as paper blueprints. Over decades of shop-floor handling, these physical drawings frequently become yellowed, torn, faded, or completely lost. When a critical connecting bracket fails, the facility lacks accurate engineering references to execute replacement manufacturing.
Even when original 2-D drawings are located, physical components that have been in service for years have often undergone manual fitting, field modifications, or natural operational wear. Manufacturing a replacement strictly according to the original nominal drawing frequently results in assembly fit issues. The theoretical dimensions on legacy paper must be re-calibrated against the real-world physical state of the part.
Complex structural features—are exceptionally difficult to quantify using traditional hand tools like calipers, height gauges, and micrometers. Manually drafting a medium-complexity structural fitting requires upwards of half a day. Furthermore, manual measurement relies heavily on operator skill, making data consistency and measurement repeatability difficult to guarantee.

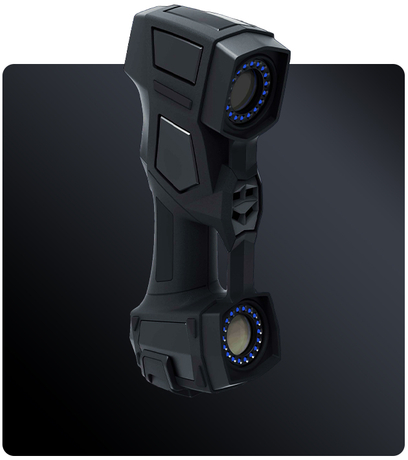

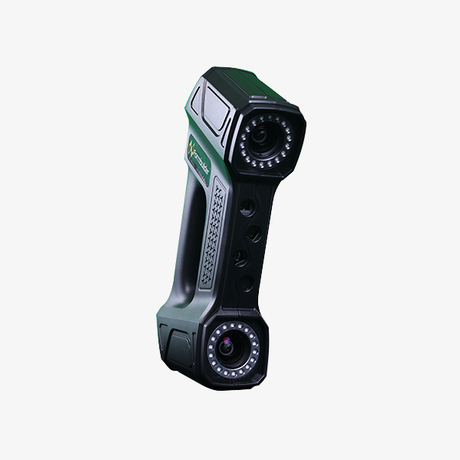

Specifically engineered for the digital transformation of mechanical components, the BlackboxCV Extr Series handheld laser 3D scanner delivers three core technical capabilities:
Utilizing advanced blue laser technology, the Extr Series delivers metrology-grade accuracy up to $0.02\text{ mm}$. Eliminating reliance on paper drawings, the system directly scans legacy components to capture high-density 3D spatial point clouds that match the physical part, fully recording critical features such as hole centers, step heights, bevels, and chamfers.

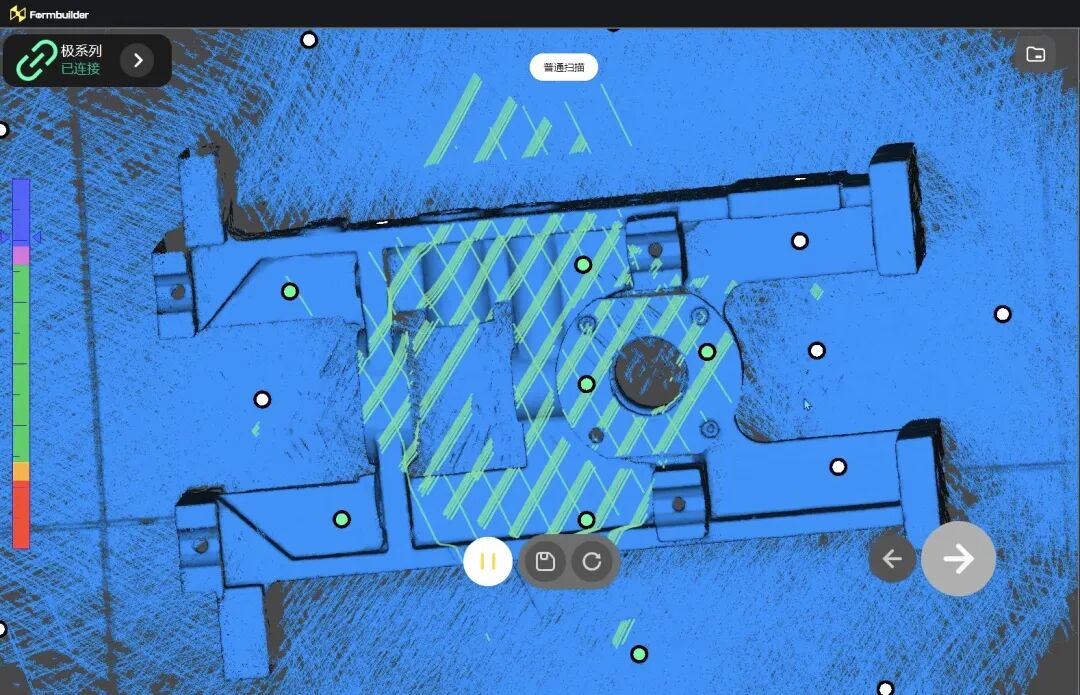

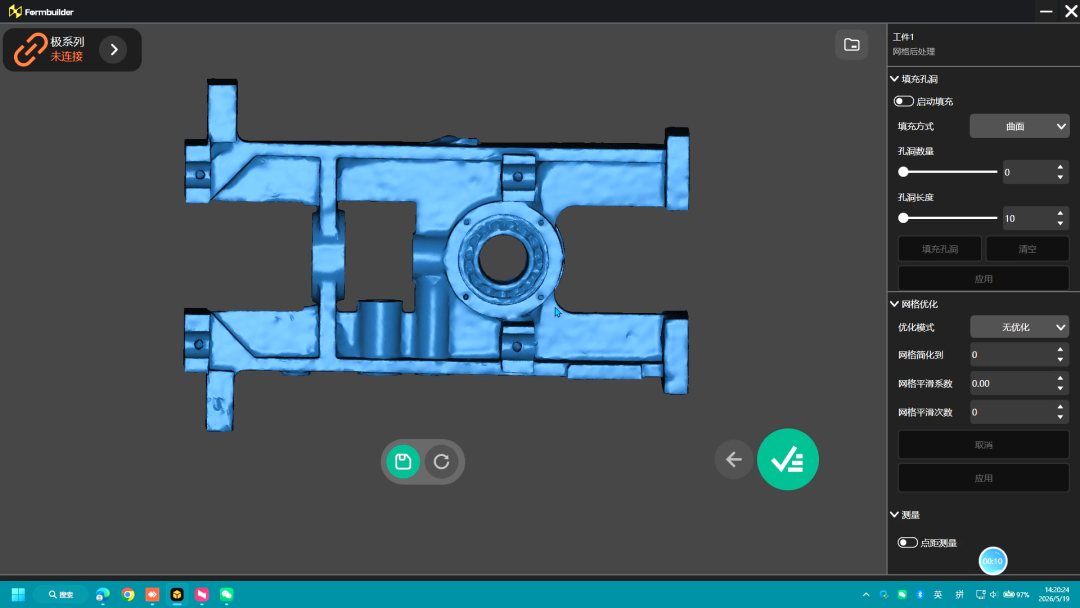

Industrial structural fittings frequently feature organic surfaces, multi-axis mounting faces, and intersecting cross-ribs. The Extr Series supports continuous handheld scanning, allowing the operator to maneuver freely around the workpiece. The native software automatically handles global registration and frame stitching in real time, capturing hard-to-reach features such as deep mounting pockets and concealed rear geometries.

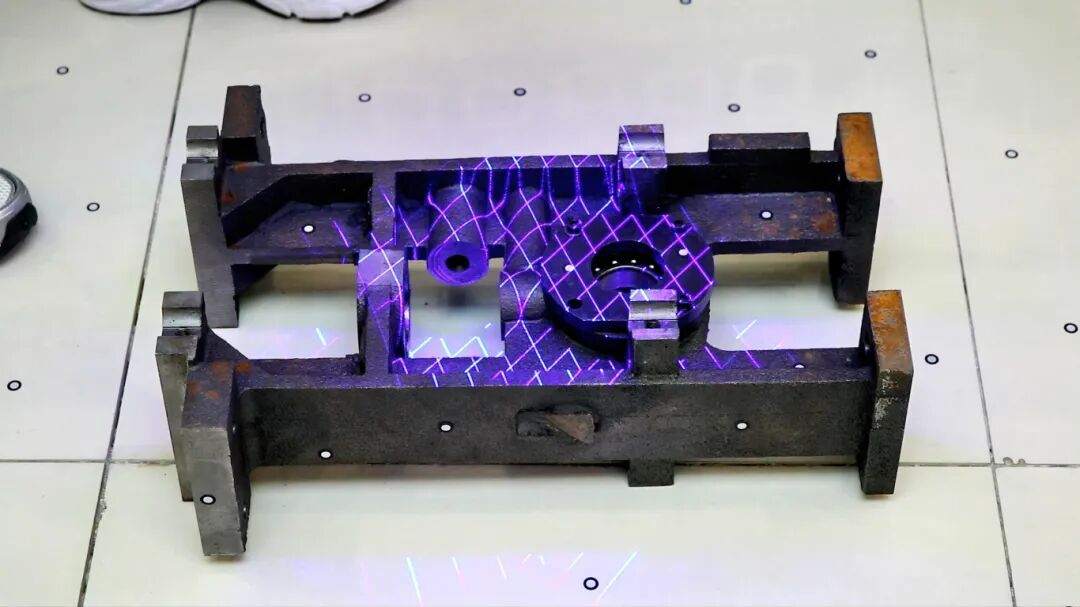

Designed with a lightweight, ergonomic body, the Extr Series supports wireless operation directly on the shop floor. Operators can scan parts where they reside without transporting heavy components to a dedicated CMM room or applying messy surface sprays. The entire pipeline—from scanning to data export—is typically completed within 15 to 30 minutes.

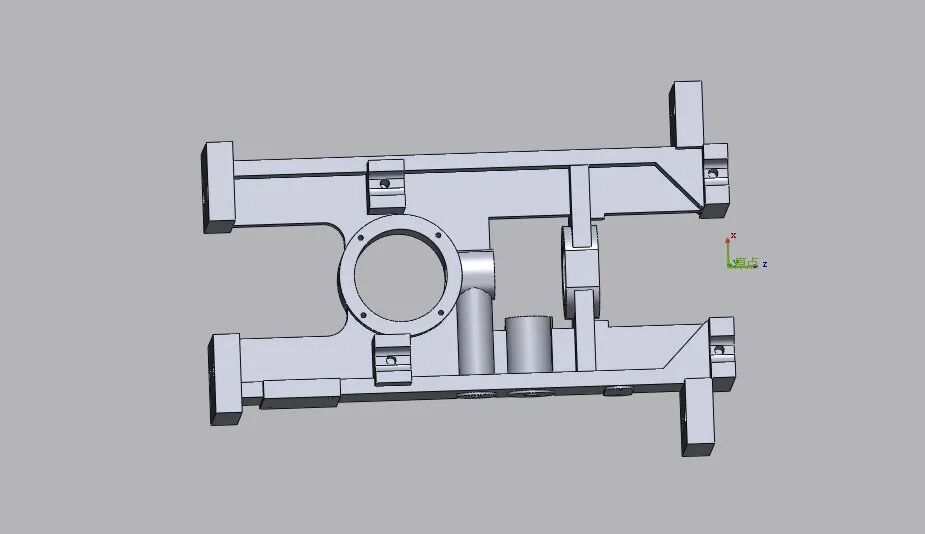

The BlackboxCV Extr Series provides a scalable, repeatable technical pathway for archiving legacy mechanical components. High-precision 3D scan data can be directly imported into reverse engineering CAD software to construct fully parametric 3D models.
• Permanent Technical Asset Archiving: Safeguards proprietary equipment knowledge, eliminating information gaps caused by lost physical drawings.
• Direct Manufacturing Integration: Parametric models can be exported directly to CNC programming (CAM) pipelines or toolmaking software, enabling rapid replacement manufacturing when parts fail.
• Accurate Design Baselines: Provides an exact digital reference for future equipment retrofits, performance upgrades, and custom re-engineering.
By transitioning from manual measurement to 3D scanning—and from fragile paper blueprints to robust digital twins—the Extr Series enables manufacturing enterprises to digitize legacy physical parts into reusable, transferable, and scalable digital engineering assets.
