While a standard photograph only records color and luminance, industrial 3D scanning captures the complete, uncompromised geometric topology of an object. In essence,3D scanning creates a digital image embedded with precise spatial scales. Once this "image" is generated, users can rotate, measure, and edit it on a computer, or even output it directly to a 3D printing device.
But how exactly does a beam of light translate a physical entity into accurate spatial coordinates?
Human depth perception relies primarily on binocular disparity. Because our left and right eyes observe the world from slightly different angles, they capture two slightly offset images. The brain processes these disparities to calculate distance and perceive depth.
The underlying principle of industrial 3D scanning operates similarly, replacing human eyes with high-resolution optical cameras and the brain with advanced computational algorithms.
To endow a machine with depth perception, the most effective method is active sensing—projecting a controlled light source onto the object's surface. Utilizing light as a probing medium and reverse-engineering geometric morphology by analyzing how light interacts with physical surfaces.
In modern metrology-grade 3D scanning, the industry relies on two primary technical paths: Laser Triangulation and Structured Light.

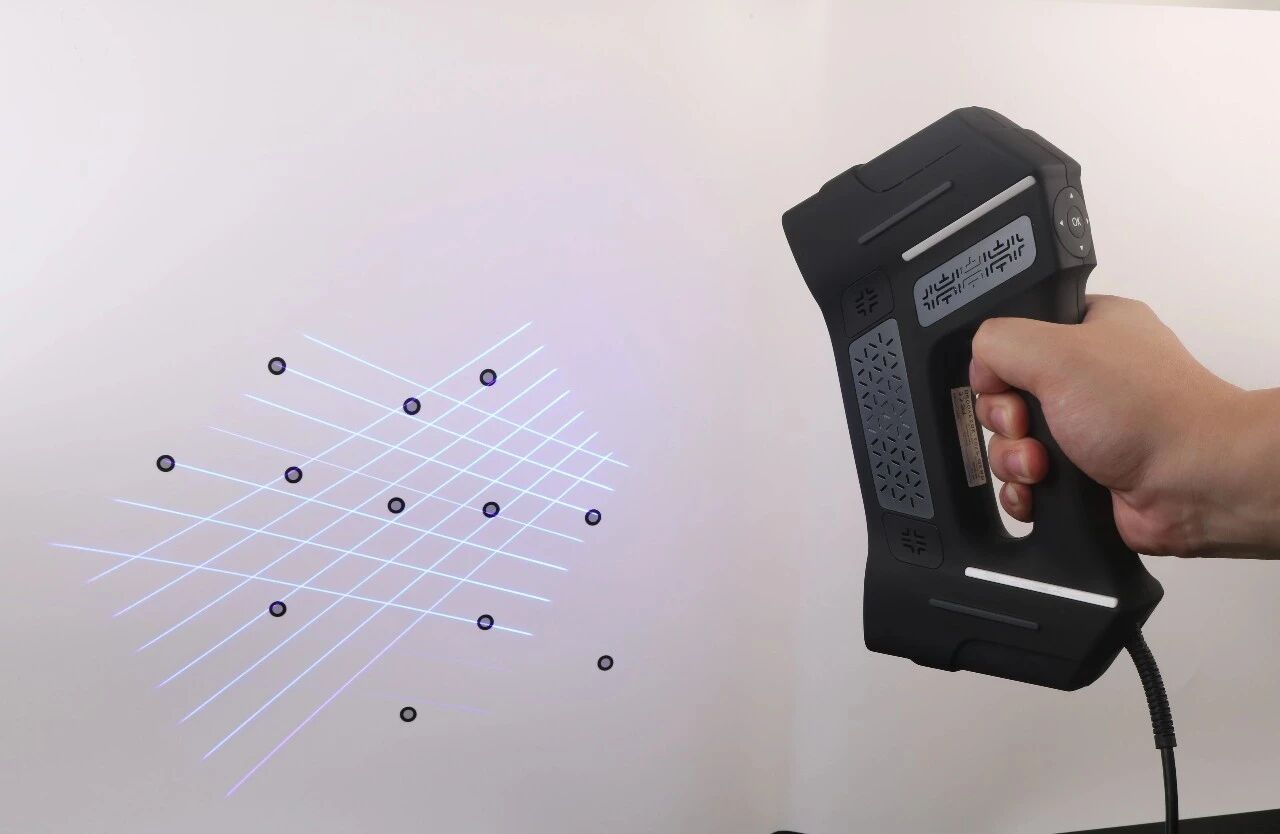

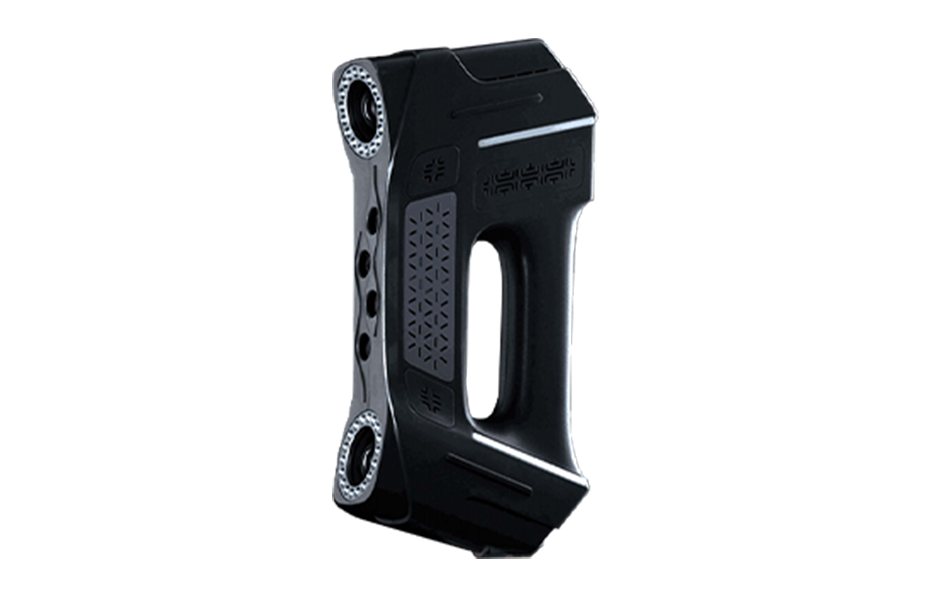

A laser projects a light spot or a line of light onto the surface of an object, and a camera captures the position of that spot from a preset angle. The laser emitter, the camera, and the object's surface form a triangular geometric configuration; the depth value of the point is calculated based on the displacement of the light spot within the camera's image.
Technical Specifications:Delivers micron-level accuracy (up to 0.01mm); exhibits exceptional adaptability on highly reflective or bright surfaces; typically utilizes point scanning or line scanning methods,and the speed is relatively slow.
Key Industrial Applications: Inspection of precision molds, aerospace turbine blades, and heavy-duty machined components.
Structured light technology captures depth information across an area in a single acquisition. A projector casts a set of encoded fringe patterns onto the object's surface, while multiple cameras synchronously capture the resulting deformations which correspond to the surface's contours and relief.
Technical Specifications:High-speed area acquisition; exceptional spatial resolution capable of restoring intricate textures and micro-features; has certain limitations with very dark, highly reflective, or specular surfaces.
Typical application scenarios: Digitization of cultural artifacts, human body scanning, custom footwear and apparel, casting inspection, and automotive interiors.
Whether using laser triangulation or structured light, the subsequent data processing workflow is highly consistent.
The scanner projects optical signals of specific patterns (points, lines, or stripes) onto the object's surface, while the camera simultaneously records how these signals appear on that surface. A single capture covers only the side of the surface facing the camera.
The software algorithms analyze the captured data, evaluating pixel shifts and fringe phase deviations. Utilizing triangulation matrix equations, the system calculates the precise spatial coordinates (X, Y, Z) for millions of sampling points, generating a high-density point cloud.

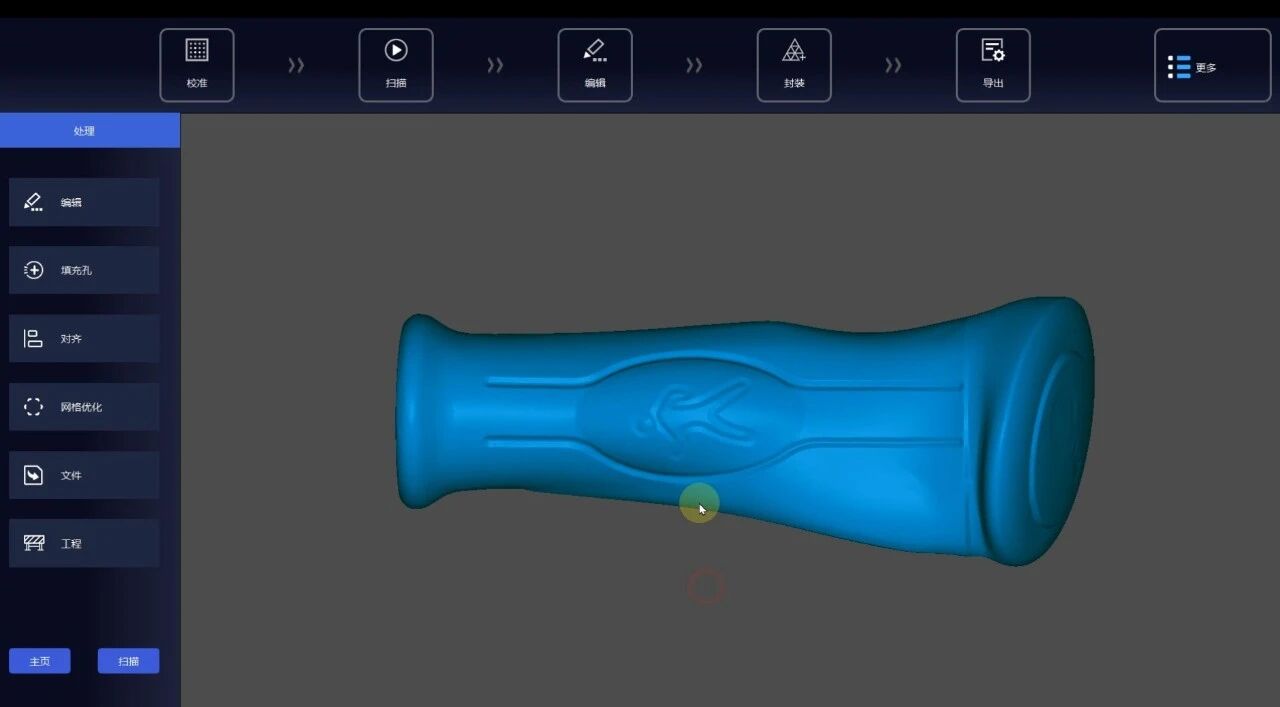

The software system stitches data from multiple frames into a complete model by identifying common geometric features (such as edge points, surface transition areas, and textural feature points) across the different views, ultimately generating a triangular mesh model (typically stored in STL format).
The true technical barrier in 3D scanning lies in addressing the engineering challenges posed by various types of "complex surfaces."
Material Type | Key issues |
Black plastic | High light absorption rate, weak return signal. |
High-gloss metal | Specular reflection causes local overexposure, resulting in spurious data points. |
Transparent/Translucent Materials | Light penetrates the surface, preventing the formation of a stable reflected signal. |
Dark curved surface | Low surface contrast makes feature extraction difficult. |
Following the aforementioned technical processes, 3D scanning data has found widespread application across various industries:
• Cultural Heritage Preservation: Grottoes and museum artifacts—enabling non-contact, non-destructive digital archiving.
• Medical Rehabilitation: Orthopedic braces and prosthetic sockets—generating personalized fit models for individual patients.

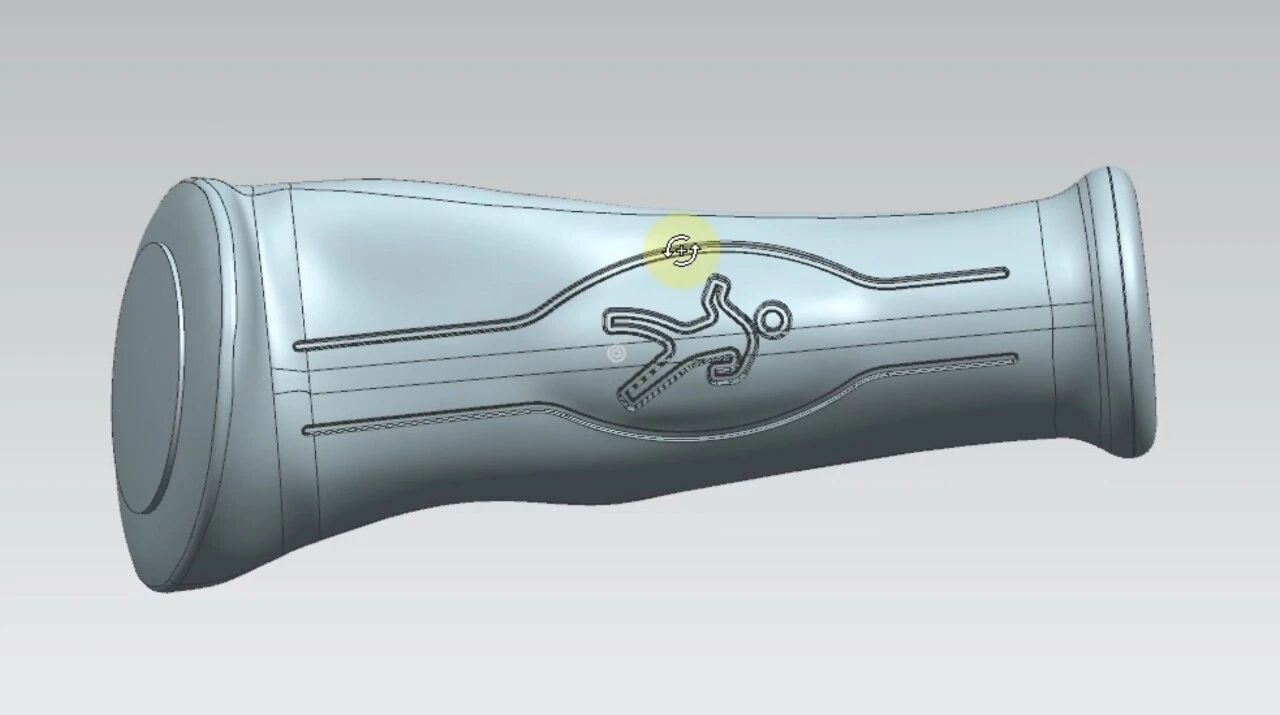

• Industrial Manufacturing: Reverse engineering, incoming material inspection, and mold modification—deriving design blueprints from physical samples.
• Consumer Product Customization: Custom earphones and ergonomic insoles. 3D scanning serves as a key enabling technology for "one-person, one-design" customization.
By combining light as the sensing medium, triangulation as the mathematical foundation, and algorithms as the core of data processing, the geometric form of any physical object can be converted into precise spatial coordinate data.
