In heavy industrial sectors—including metal casting, automotive prototype development, and aerospace tooling manufacturing—industrial wooden patterns (pilot patterns milled from high-density timber or wood composites) have long served as core tools for new product development and high-mix, low-volume production. Their popularity stems from low material costs, short fabrication cycles, and ease of manual modification.

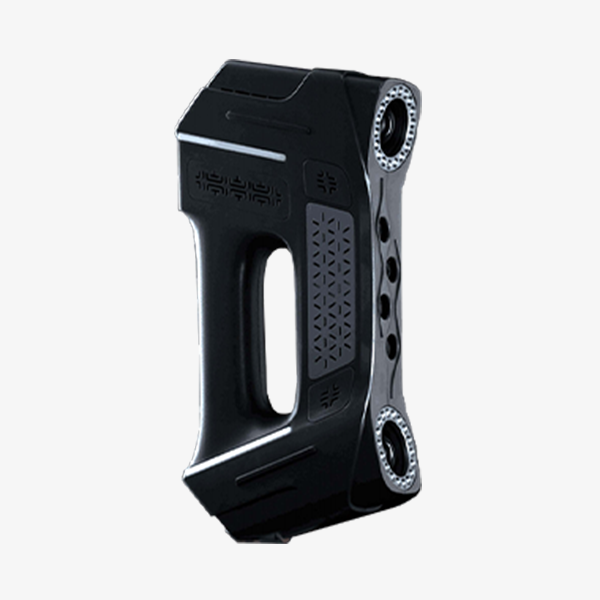

However, as modern manufacturing accelerates toward tighter tolerances and shorter lead times, the inherent limitations of traditional pattern inspection and manual repair methods have become increasingly pronounced. This article explores how the BlackboxCV Extr Series handheld laser 3D scanner resolves complex measurement bottlenecks in wooden patterns, injecting digital momentum into the casting industry.

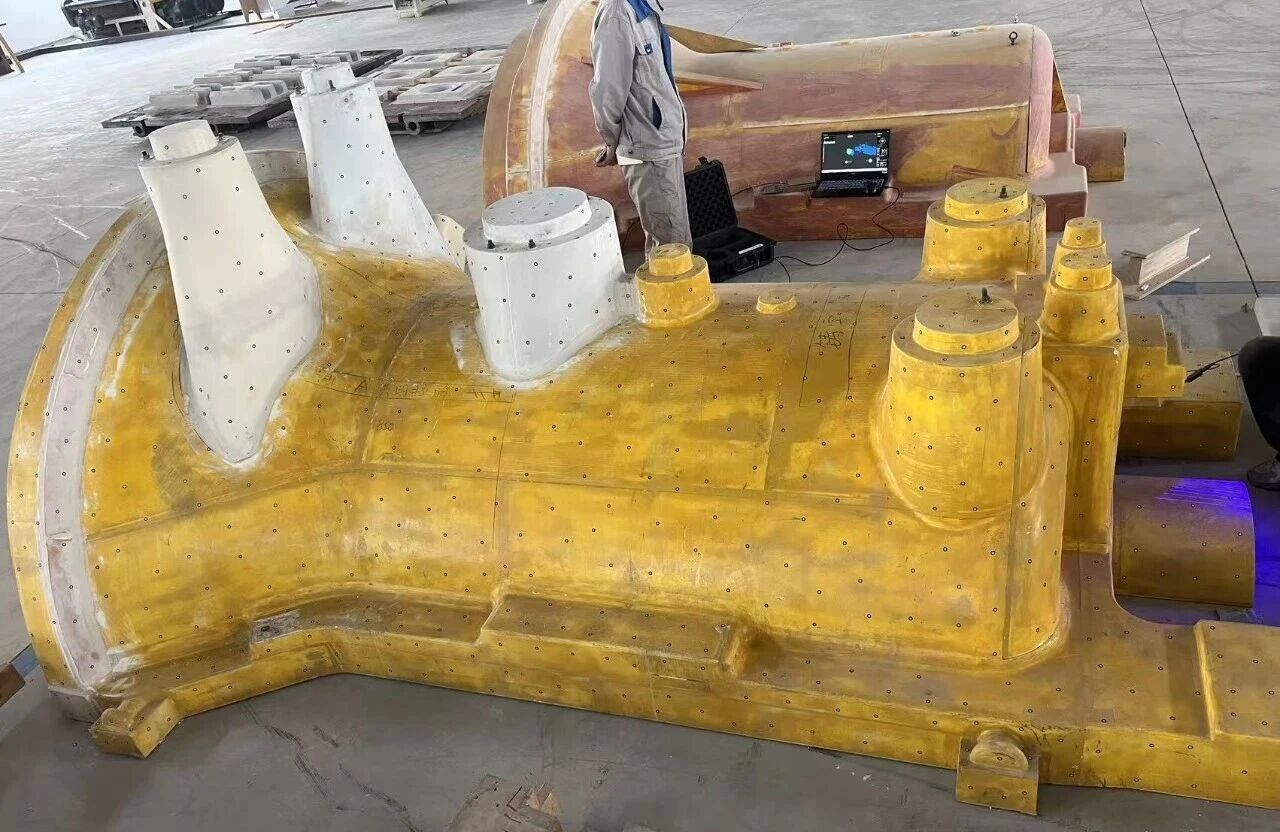

Industrial wooden patterns frequently integrate free-form organic surfaces with internal runner networks, as seen in engine cylinder block water-jacket patterns, impeller molds, and complex valve body patterns. These tools feature intricate fluid channels, parting lines, and draft angles. Traditional sectional measurement followed by manual data stitching is cumbersome and introduces severe cumulative positioning errors. This distorts surface profiles and degrades downstream fluid dynamics and assembly alignment in finished castings.
Industrial wooden patterns are typically milled from high-density hardwoods or Medium-Density Fiberboard (MDF). However, wood is inherently hygroscopic and susceptible to thermal expansion and contraction. In foundry environments characterized by ambient temperature and humidity fluctuations, patterns easily warp, twist, or swell locally. A pattern machined to exact nominal dimensions can experience a dimensional drift of 0.5mm to 1.0mm after just one week in storage.
Conventional verification relies on protractors and physical templates for point-by-point manual checking—a process that is prone to missing critical features. Incorrect draft angles or flawed shrinkage calculations lead to severe mold ejection failures or out-of-tolerance castings across an entire production run.
Traditional pattern modification relies heavily on operator intuition—“sanding by feel and evaluating by eye.” Because the results cannot be quantified, technicians frequently over-correct one area while distorting another. This trial-and-error cycle severely extends product development timelines.
Utilizing shorter wavelengths and finer laser line profiles, the Extr Series captures micro-features on wood surfaces regardless of color variations or grain finish. Whether detecting subtle moisture-induced warping or localized wear along parting lines, the system ensures consistent photonic signal acquisition.
The system generates color-coded deviation maps within seconds, automatically highlighting out-of-tolerance zones in red. By objective dimensional data, it provides reliable spatial references for pattern refurbishment.
Engineered to handle deep cavities, internal runners, and undercuts typical of wooden patterns, the scanner penetrates narrow spaces to perform true line-of-sight acquisition, ensuring full-field data capture without blind spots.

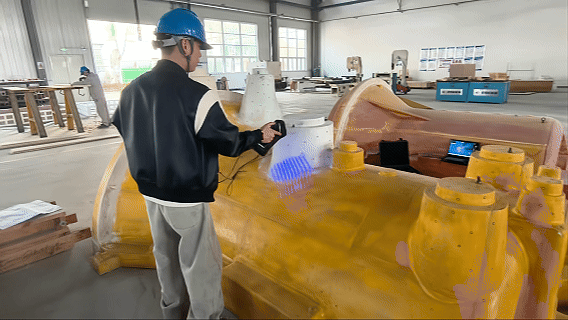

Enabling in-situ inspection on the shop floor, the Extr Series eliminates the need to transport fragile, bulky wooden patterns to a dedicated CMM room. Operators can bring the lightweight device directly into the pattern shop or foundry floor, integrating quality control seamlessly into the active workflow.

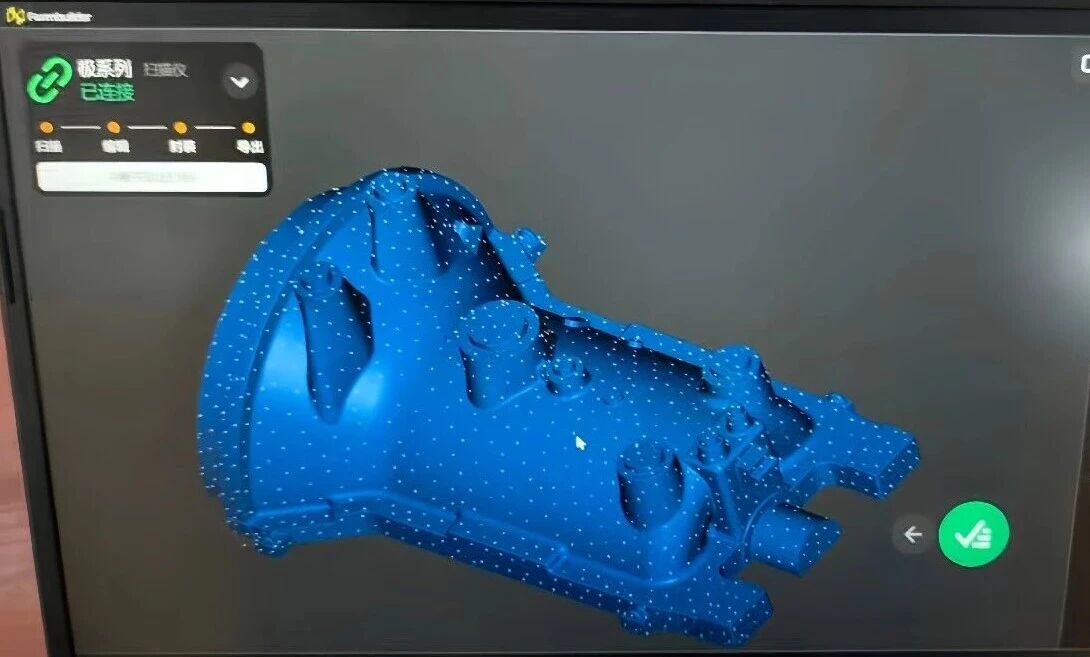

Supporting continuous handheld scanning, the Extr Series allows operators to maneuver 360∘ around the pattern. The native software executes real-time global registration, capturing warped contours in a single pass while eliminating cumulative stitching errors inherent in traditional sectional measurement.
The BlackboxCV Extr Series serves as a pivotal digital transformation tool for industrial pattern shops. By replacing intuition with precision data, the Extr Series redefines efficiency and quality benchmarks across modern foundries.
Q1:Why do wooden patterns deform easily in foundry environments?
A1:Industrial wooden patterns are typically made from hardwoods or MDF, which are inherently hygroscopic and sensitive to humidity and temperature fluctuations in foundries. This can cause dimensional drift of 0.5mm to 1.0mm within a week of storage.
Q2:How does 3D scanning improve wooden pattern refurbishment?
A2:Instead of relying on manual grinding by feel, 3D scanning generates color-coded deviation maps within seconds. This highlights out-of-tolerance areas in red, providing precise numerical guidance for pattern repair and eliminating trial-and-error.
Q3:Can handheld 3D scanners capture deep cavities in complex foundry molds?
A3:Yes. Advanced handheld 3D scanners like the BlackboxCV Extr Series utilize blue laser technology and flexible multi-frame registration, allowing operators to penetrate narrow spaces, internal runners, and deep pockets without blind spots.
