The 2026 World Robot Conference (WRC) was held in Beijing from August 19 to 23. Walking through the exhibition halls, whether observing humanoid robots, precision joint modules, or various core components, a strong signal was conveyed: the robot industry is no longer satisfied with the "motion demonstration" stage, but is accelerating toward an era of industrialization characterized by "versatility, broad application, and stable performance."
However, to bring robots into more real-world applications, enterprises face more than just algorithm and control issues; they also encounter the meticulous work required in the final step of product realization—physical (part) manufacturing and assembly.
Ultimately, for robots to be utilized with greater confidence, issues of data accuracy and reliability must be resolved. The acquisition of data via 3D scanning is precisely the key to ensuring data precision and integrity. Consequently, under the current rapid industrial demand, 3D scanning has become an important tool for robot manufacturing to ensure both accuracy and speed.
In actual production, multiple critical stages of robot manufacturing require reliable data support:
Such as robotic arm housings and joint casings contain a large number of irregular surfaces,inclined holes,and complex mating areas. It is difficult to efficiently acquire overall surface data using caliper measurements—local measurements can be taken, but the overall structure cannot be fully captured.
After the first batch of trial-produced physical models is processed, manual point-by-point measurement is time-consuming and labor-intensive, and the data may not be reliable. In scenarios where R&D iterations are frequent, the measurement process can actually slow down the verification progress.
Even slight uneven gaps, misalignments, or interference between joint modules and structural components can lead to decreased motion precision, localized heating, abnormal wear, or even motion stalling. Once mass production begins, minor deviations in parts from different batches or suppliers are further amplified after assembly.
Production stages are interconnected. An error in one step or unclear data that is difficult to trace can lead to large-scale rework. The steady progress of manufacturing requires the support of more complete and precise 3D data.
The role of 3D scanning is to provide more complete and precise 3D data support, which spans the entire lifecycle of robot manufacturing.
3D scanning can rapidly capture the overall surface of robot components for comparison with the original CAD models. R&D personnel can immediately discover whether wall thickness is uniform or if surfaces have deformed.
Prototype testing is a critical step before large-scale mass production. For complex surfaces, holes, and mounting faces, complete 3D data reflects the actual state of parts more comprehensively than point-by-point measurement.
3D data can assist in analyzing whether there is interference between joint modules, brackets, and housings, whether connectors are misaligned, and if gaps are uniform—assembly issues must be exposed before final assembly.
Additionally, for old components, replacement parts, or repair parts without complete drawings, scanning can provide the basis for reverse modeling: engineers first obtain the physical structure and then proceed to subsequent modeling and design processes.
Therefore,the value of 3D scanning is concentrated in four phrases: comprehensive visualization, rapid measurement, accurate comparison, and data retention. It compensates for deficiencies in data and efficiency.

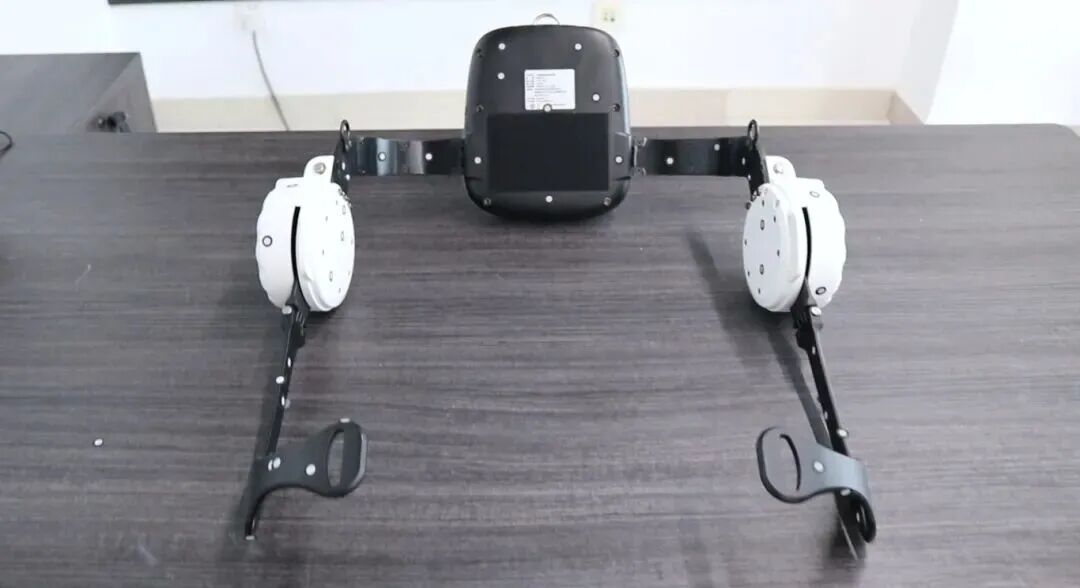

Blackboxcv's Extr series scanners have been applied to the quality inspection and iteration of robot exoskeletons (rehabilitation medical equipment).
These devices must ensure flexible joint movement, a snug fit, and structural stability. Rational structural design, part surface precision, and assembly gaps all affect final performance. Therefore, product optimization and iteration require the formation of a closed loop: "scanning acquisition—problem analysis—structural adjustment—re-verification."

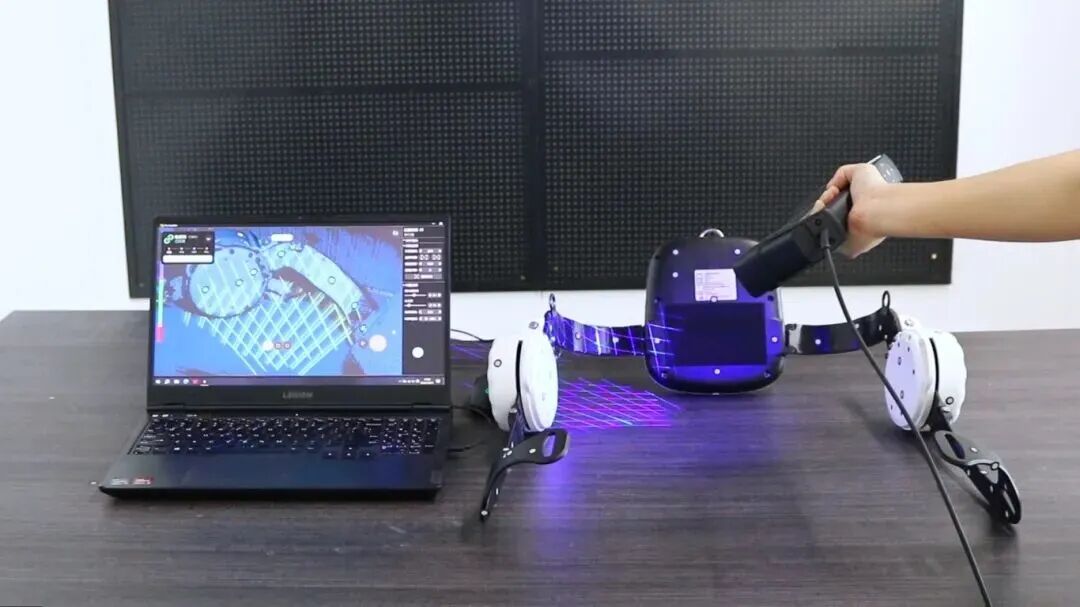

3D scanning captures the complete surfaces of exoskeleton supports, joint housings, and connection points, which are then compared with the design models for quality inspection. Compared to measuring only a few lengths or diameters, 3D data presents the actual state of parts and assemblies more completely. Engineers use this to identify issues such as surface deformation, hole position deviations, joint position offsets, and localized gap inconsistencies.
After problems are identified and resolved, product iteration proceeds. Data from the iterated version is compared with the previous version to confirm whether structural adjustments have improved fit and range of motion, thereby verifying the effectiveness of the iteration.
In this way, product iteration forms a closed loop, where each version is superior to the last—a responsible performance in any application.
The World Robot Conference demonstrated the development speed of the robot industry, from core components to complete machine applications. However, for robots to truly achieve mass production and multi-scenario application, they rely not only on superior algorithms and motion control but also on stable manufacturing, inspection, and iteration systems.
Blackboxcv will continue to assist in the on-site acquisition, quality inspection, reverse modeling, and digital design of complex products with higher-performance 3D scanning equipment and premium services, transforming physical issues into verifiable data—ensuring that robots are not only capable of movement but are also manufactured reliably.
Why is 3D scanning critical for the industrialization of robotics?
As the robot industry moves toward mass production, 3D scanning ensures the accuracy and reliability of complex components. It provides complete and precise data support for part processing, prototype iteration, and assembly, which is essential for stable performance and broad application.
How does 3D scanning improve robot assembly precision?
3D scanning captures full-surface data to identify even minor uneven gaps, misalignments, or interference between joint modules and structural components. By detecting these issues before final assembly, manufacturers can prevent motion precision loss and abnormal wear.
Can 3D scanning be used for reverse modeling in robot maintenance?
Yes. For old components, repair parts, or replacement parts without original drawings, 3D scanning captures the exact physical structure. This data serves as the foundation for reverse modeling, enabling engineers to redesign or manufacture compatible parts accurately.
How does Blackboxcv support the robot manufacturing lifecycle?
Blackboxcv provides high-performance scanning equipment and services that transform physical manufacturing problems into verifiable digital data. This supports every stage from design verification and quality inspection to assembly analysis and digital archiving.
