Basic Model

Sharp series - 3D modeling expert

Originated from the CAD National Laboratory of Zhejiang University.

Hangzhou blackboxcv Co.,Ltd is the world's leading developer of 3D machine vision systems and a national high-tech enterprise. It has outstanding technical talents from Microsoft Research Institute and Zhejiang University's CAD team, and has independent full-stack development capabilities from optics to underlying algorithms. It has more than 120 patents and software copyrights, including more than 20 invention patents.

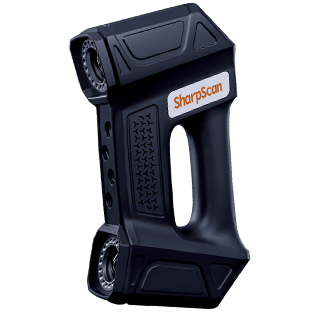

Sharp series

Sharp-14 Max丨Sharp-22 Max

·Fine scanning module, which increases the

ability to scan details in detail
·Suitable for scanning 300mm-3000mm

products, with a scanning accuracy of

0.02mm/m

Learn more

Blackboxcv is committed to providing efficient and accurate three-dimensional laser scanning solutions. If you want to know more about our products, please refer to the following detailed specifications:

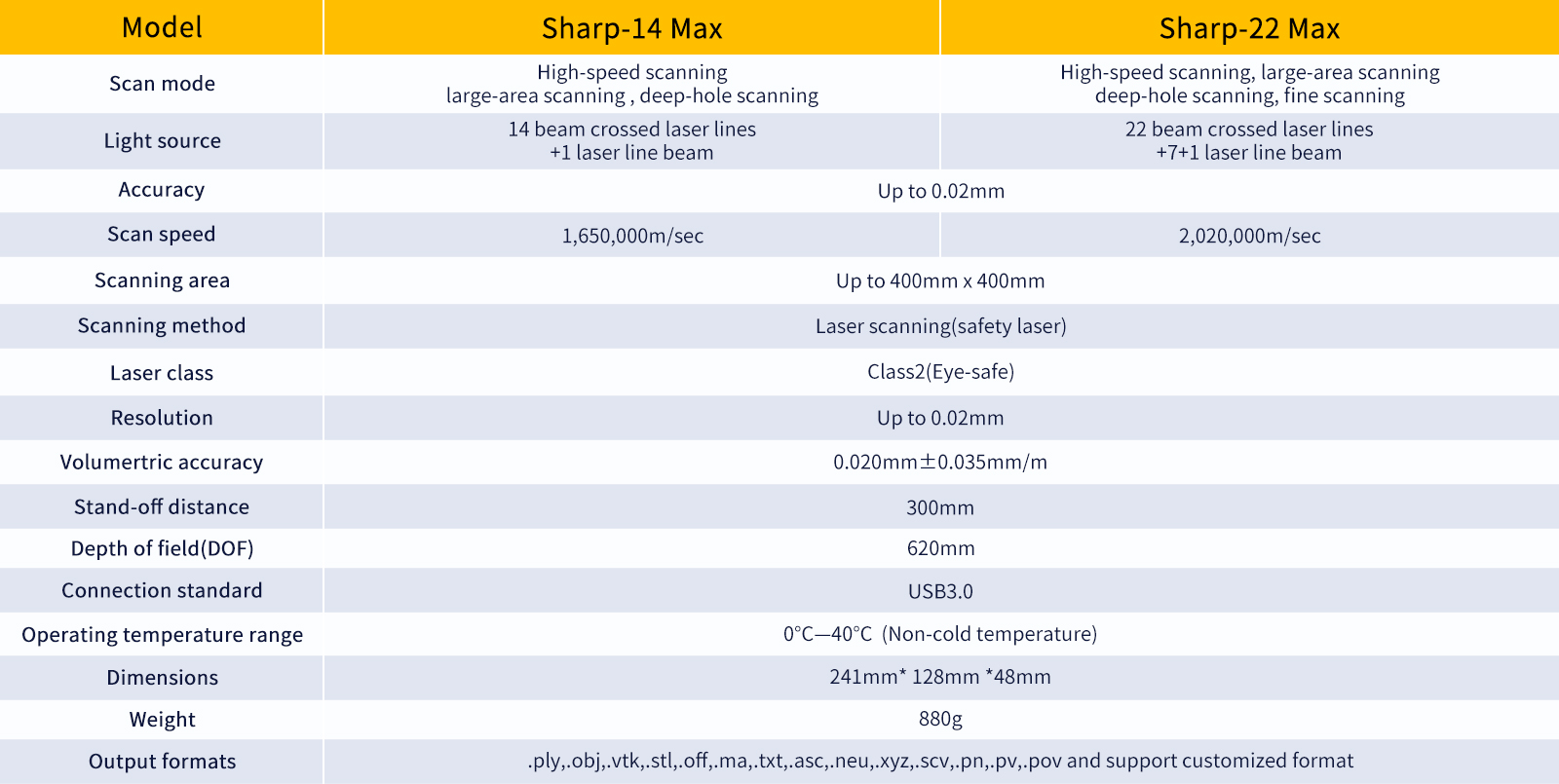

Model	Sharp-14 Max	Sharp-22 Max
Scan mode	High-speed scanninglarge-area scanning, deep-hole scanning	High-speed scanning, large-area scanningdeep-hole scanning, fine scanning
Light source	14 beam crossed laser lines+1 laser line beam	22 beam crossed laser lines+7+1 laser line beam
Accuracy	Up to0.02mm	Up to0.02mm
Scan speed	1,650,000m/sec	2,020,000m/sec
Scanning area	Up to 400mm x400mm	Up to 400mm x400mm
Scanning method	Laser scanning(safety laser)	Laser scanning(safety laser)
Laser class	Class2(Eye-safe）	Class2(Eye-safe）
Resolution	Up to 0.02mm	Up to 0.02mm
Volumertric accuracy	0.020mm±0.035mm/m	0.020mm±0.035mm/m
Stand-off distance	300mm	300mm
Depth of field(DOF)	620mm	620mm
Connection standard	USB3.0	USB3.0
Operating temperature range	0°C-40°C (Non-cold temperature)	0°C-40°C (Non-cold temperature)
Dimensions	241mm* 128mm *48mm	241mm* 128mm *48mm
Weight	880g	880g
Output formats	.ply, obj,.vtk,.stl,.of,.ma, txt,.asc,.neu,xyz,.scv,pn,.pv,.pov and support customized format	.ply, obj,.vtk,.stl,.of,.ma, txt,.asc,.neu,xyz,.scv,pn,.pv,.pov and support customized format
