The dimensional accuracy and structural integrity of impeller blades directly affect equipment efficiency, energy consumption, and service life. For this reason, accurate impeller inspection and reverse engineering are essential in applications where rotating components must be reproduced, optimized, or repaired.
Reverse engineering provides the digital foundation for impeller replication, redesign, and maintenance. However, the complex freeform surfaces, narrow blade passages, hollow sections, and strict dimensional requirements of impellers often make conventional measurement methods slow and incomplete. The Blackboxcv Extr Series 3D scanner addresses these challenges by converting complex impeller geometry into detailed three-dimensional data for reverse engineering and design optimization.
The combination of complex blade structures and demanding reverse-engineering requirements creates several challenges for traditional measurement workflows.
Most impeller blades contain irregular freeform surfaces whose curvature changes continuously across the blade profile. Some impellers also include hollow sections, cut-outs, narrow channels, or thin-wall features. Conventional tools may not fully capture these areas, which can result in incomplete contours, missing surface data, and insufficient information for accurate reconstruction.
Manual tools such as calipers can measure only a limited number of accessible dimensions. They cannot efficiently acquire the complete three-dimensional geometry of an impeller, particularly in areas with curved surfaces or restricted access. For a medium-sized impeller, a manual measurement workflow may require several hours or even several days.
When accurate and complete 3D data is unavailable, reverse-engineered models often depend on manual estimation and engineering assumptions. This can introduce dimensional deviations into the reconstructed blade profile, hub geometry, and key interfaces. If these deviations are not identified before manufacturing, the finished impeller may fail to match the original equipment or may require additional fitting and rework.
The reverse-engineering cycle can also become longer because designers must repeatedly verify, modify, and remeasure the model.
Impellers used in different industries can vary considerably in diameter, blade height, passage width, and overall structure. A measurement system that is optimized for only one size range may not be suitable for other components. Replacing measurement tools, building additional fixtures, or redesigning the inspection workflow can increase labor hours, equipment costs, and project lead times.

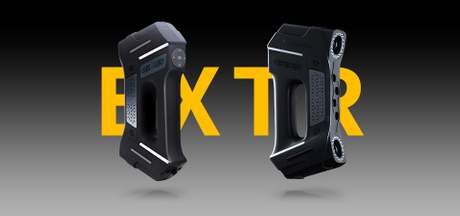

The Blackboxcv Extr Series 3D scanner is designed to support a complete impeller reverse-engineering workflow that combines efficient scanning, accurate data acquisition, and compatibility with professional design software. The resulting digital process enables engineers to move from physical component inspection to surface reconstruction and 3D modeling with fewer manual measurement steps.

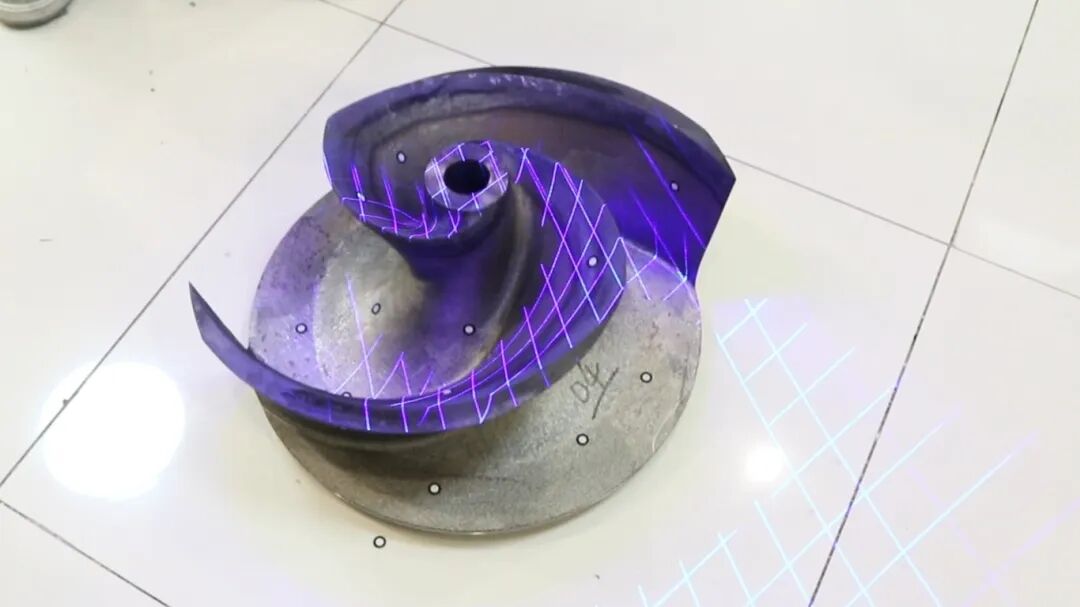

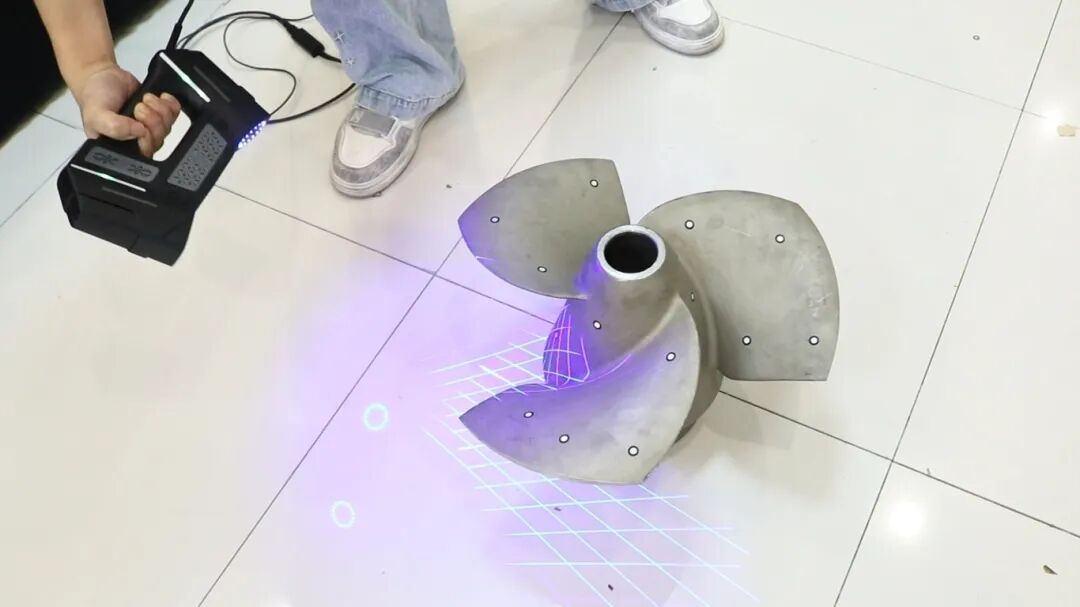

The Blackboxcv Extr Series scanner captures freeform blade surfaces, cut-outs, narrow structural features, and other visible geometric details as three-dimensional data. Its handheld form factor allows operators to scan an impeller from multiple angles, including areas that are difficult to access with conventional contact tools.
The scanning range can be adapted to impellers with different dimensions and structural configurations. By combining multiple scan views into a unified 3D dataset, the system can provide full-size geometric information for downstream inspection and reverse engineering.
The Blackboxcv Extr Series 3D scanner provides a stated scanning accuracy of up to 0.02 mm, equivalent to approximately 20 μm, under the applicable scanning mode, calibration status, test conditions, and operating environment. Its stable repeatability supports the capture of blade edges, surface transitions, hub dimensions, and other geometric details required for impeller reverse engineering.
The resulting 3D dataset provides a measurable reference for surface reconstruction, feature extraction, dimensional verification, and CAD model development. By working from captured point-cloud and mesh data rather than relying primarily on manual estimation, engineers can improve the consistency between the reverse-engineered model and the physical impeller.
The 3D data captured by the Blackboxcv Extr Series scanner can be transferred into professional reverse-engineering and CAD software for subsequent processing. Engineers can use the point cloud or polygon mesh to reconstruct blade surfaces, extract key geometric features, establish reference sections, and build a parametric or surface-based 3D model.
This workflow reduces the need for repeated manual measurements and provides designers with a digital reference that can be used for impeller replication, geometry optimization, repair planning, and performance-oriented redesign.
By combining rapid 3D data acquisition, stated accuracy of up to 0.02 mm, and compatibility with reverse-engineering software, the Blackboxcv Extr Series 3D scanner provides a digital inspection and modeling workflow for complex impeller components.
For aerospace, energy and power, mechanical manufacturing, and other industries, this workflow can reduce dependence on manual measurement and improve the traceability of reverse-engineering decisions. It also enables legacy components to be digitized before redesign or replacement, helping manufacturers preserve critical geometry while developing updated designs.
From reproducing obsolete impellers to optimizing new blade structures, the Blackboxcv Extr Series scanner supports more efficient data acquisition and more reliable reverse-engineering processes.
The Blackboxcv Extr Series 3D scanner provides a practical solution for impeller reverse engineering by combining full-geometry scanning, up to 0.02 mm stated scanning accuracy, and digital compatibility with professional modeling workflows. Under the applicable scanning, calibration, surface, and data-processing conditions, the system enables engineers to capture complex blade geometry and use measurable 3D data for reconstruction, repair, inspection, and design optimization.
By supporting the digital transformation of critical rotating components, Blackboxcv helps manufacturers in aerospace, energy and power, mechanical engineering, and related sectors move toward more accurate, efficient, and innovation-driven production.
How does 3D scanning improve impeller reverse engineering?

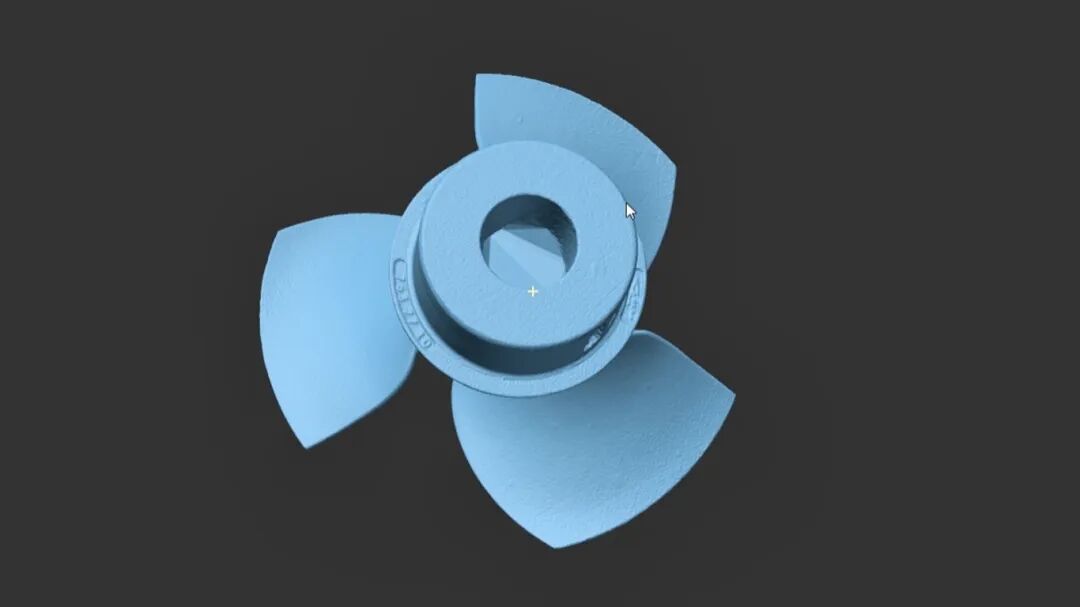

The Blackboxcv Extr Series 3D scanner captures the visible geometry of impeller blades, hubs, edges, and structural features as point-cloud or mesh data. Under suitable scanning coverage, calibration, surface, and alignment conditions, the digital dataset provides engineers with measurable 3D information for dimensional inspection, surface reconstruction, and CAD modeling.
What scanning accuracy does the Blackboxcv Extr Series provide?
The Blackboxcv Extr Series 3D scanner provides a stated scanning accuracy of up to 0.02 mm, equivalent to approximately 20 μm, under the applicable scanning mode, calibration status, test environment, and operating conditions. The final accuracy of a reverse-engineered model also depends on scanning coverage, registration quality, surface treatment and data processing.
Can 3D scanning identify dimensional deviations in an existing impeller?
The Blackboxcv Extr Series inspection workflow compares captured impeller geometry with a reference CAD model, nominal dimensions, or predefined tolerances. The inspection software can display deviation locations and magnitudes through color maps, measurement labels, and cross-sectional analysis when the reference data and tolerance standards have been defined.
Can 3D scanning be used to reproduce obsolete or damaged impellers?
Yes. The Extr Series workflow can digitize an existing impeller when the original CAD model or technical drawings are unavailable. The captured geometry can then be used as a reference for reverse modeling, replacement-part production, repair planning, or design modification. The suitability of the final model depends on the condition of the original impeller and the completeness of the scanned areas.
Which industries use 3D scanning for impeller reverse engineering?
Impeller 3D scanning is applicable to aerospace, energy and power generation, pumps, compressors, turbines, mechanical manufacturing, and other industries that use rotating equipment. Typical applications include legacy component reproduction, refurbished-part verification, manufactured-part inspection, and blade or hub design optimization.
